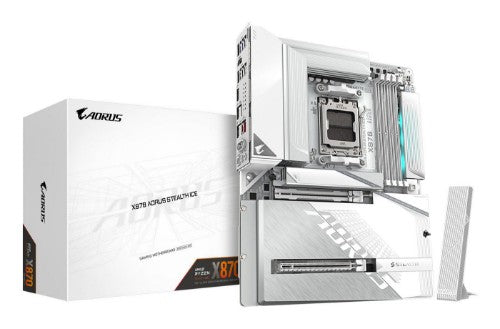

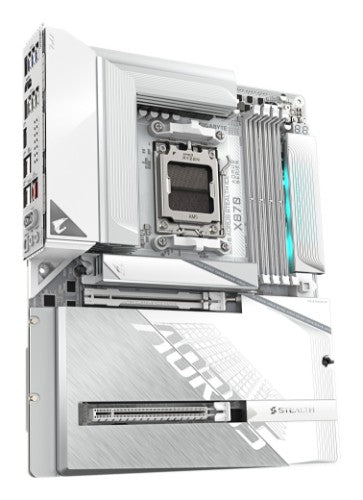

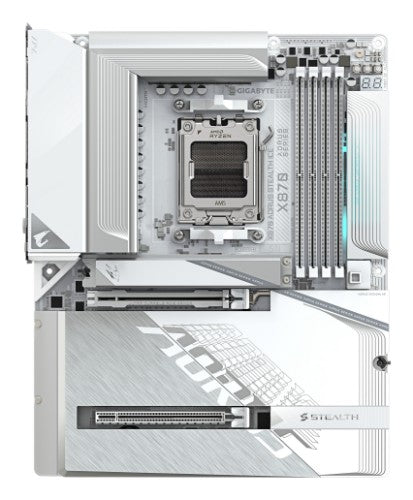

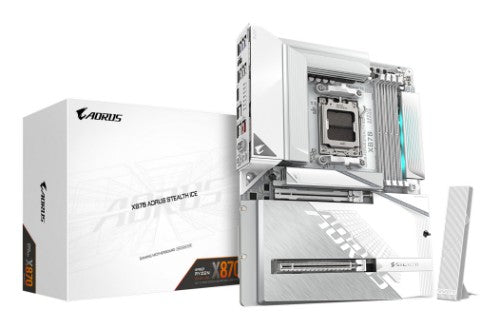

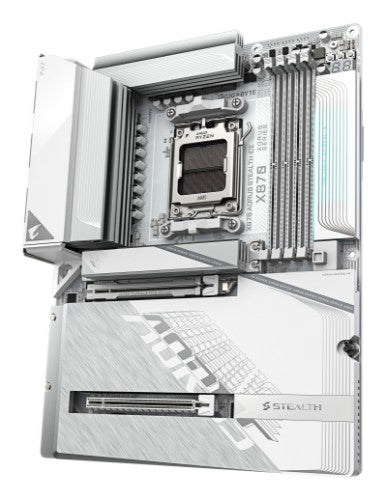

GIGABYTE X870 AORUS STEALTH ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4

X870 AORUS STEALTH ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4

Key Features

• X3D Turbo Mode: Unleash new era gaming performance
• DDR5 OC up to 8200MT/s, dual Channel DDR5
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• M.2 EZ-Flex: high-efficiency heat dissipation & flexible baseplate for M.2 SSD(Exclusive Patented Design)
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext
• Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA connectors	0
Number of SATA III connectors	2
Number of SATA II connectors	0
Number of chassis fan connectors	6
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	3
Number of temperature sensor headers	2
Number of noise detection headers	1
Number of RGB LED pin headers	4
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
On-board graphics card	No
HDMI version	2.1
Cooling type	Passive
Motherboard form factor	ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
RAID levels	0, 1, 5, 10
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0

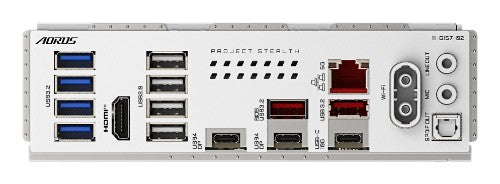

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	4
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Digital audio optical out	1
USB4 Gen 3x2 ports quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8126
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Qualcomm QCNCM865
Features
Power source type	ATX
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC1220-VB
Product colour	White
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	512 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Packaging data
Package width	315.5 mm
Package depth	375 mm
Package height	118.5 mm
Package weight	5.07 kg
Software
Windows operating systems supported	Windows 11 x64
Bundled software	Norton® Internet Security (OEM version)
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	315.5 mm
Package depth	375 mm
Package height	118.5 mm
Package weight	5.07 kg
Weight	4.4 kg
Width	305 mm
Depth	244 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version)
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Other features
Height	35 mm
Package width	315.5 mm
Package depth	375 mm
Package height	118.5 mm
Package weight	5.07 kg
mSATA ports quantity	0
Weight	4.4 kg
