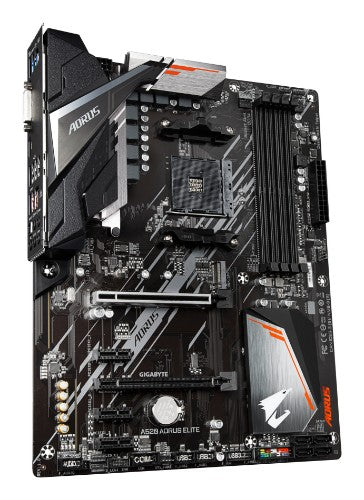

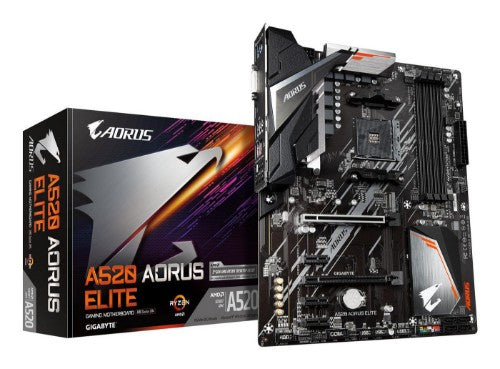

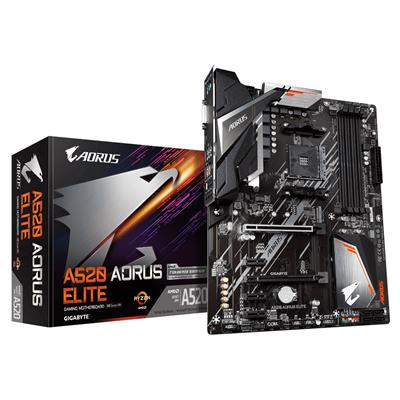

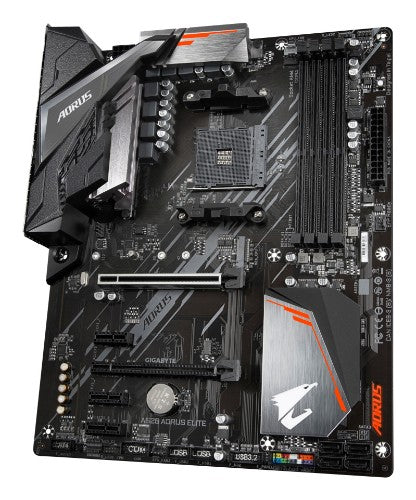

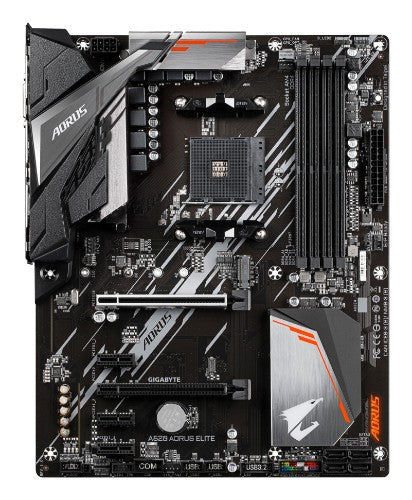

GIGABYTE A520 AORUS ELITE Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen2

A520 AORUS ELITE Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen2

Key Features

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
• AMP-UP Audio with ALC1200 and High End Audio Capacitors
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• HDMI, DVI-D Ports for Multiple Display
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	1
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Power fan connector	Yes
Number of SATA III connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Supported processor sockets	Socket AM4
Serial port headers	1
PC health monitoring	Fan, Temperature, Voltage
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3000 Series
Supported processor sockets	Socket AM4
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	5
Graphics
Maximum resolution	4096 x 2160 pixels
HDCP	Yes

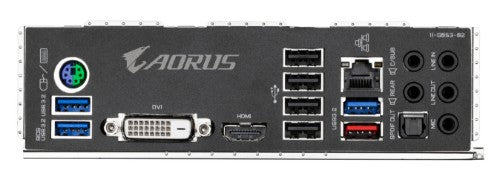

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 2.0 ports quantity	4
S/PDIF out port	Yes
PS/2 ports quantity	1
Headphone outputs	5
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	1
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC1200
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 slots	1
PCI Express x1 slots	3
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.35 kg
Software
Windows operating systems supported	Windows 10 x64
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	84733020
Weight & dimensions
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.35 kg
Width	305 mm
Depth	244 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Batteries included	Yes
Other features
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.35 kg
