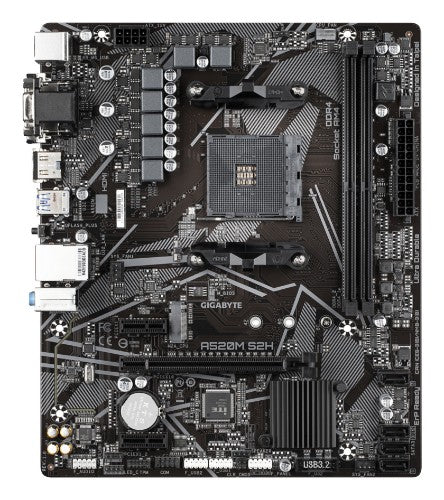

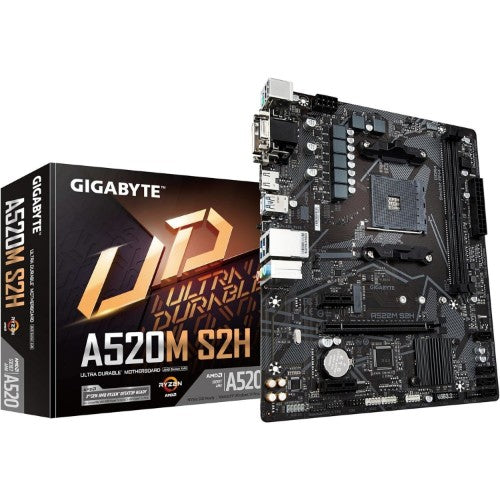

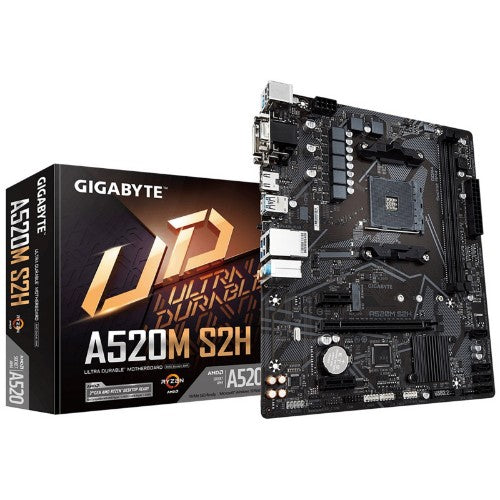

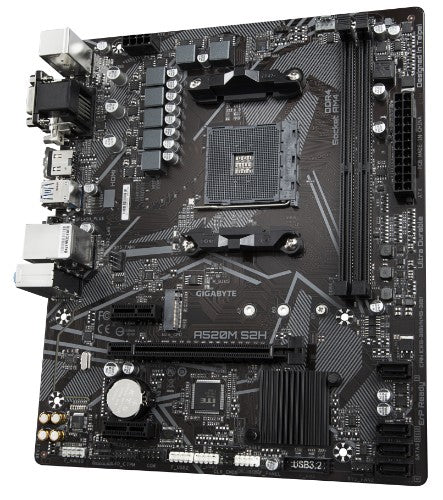

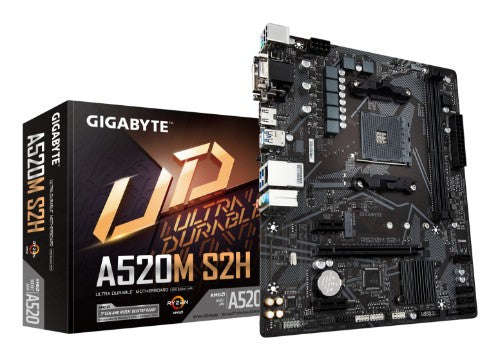

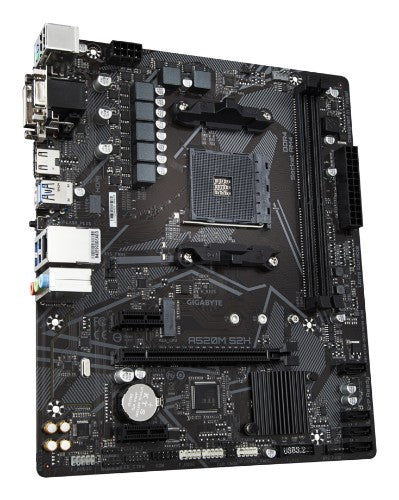

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1

Key Features

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
• 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• HDMI, DVI-D, D-sub Ports for Multiple Display
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
Power fan connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of chassis fan connectors	2
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Supported processor sockets	Socket AM4
On-board graphics card	No
Motherboard form factor	micro ATX
Component for	PC
Maximum internal memory supported by processor	64 GB
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	64 GB
Compatible processor series	AMD Ryzen 3000 Series
Supported processor sockets	Socket AM4
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz
Maximum internal memory	64 GB
ECC сompatibility	ECC & Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
RAID levels	0, 1, 10
RAID support	Yes
Graphics
On-board graphics card	No
HDCP	Yes

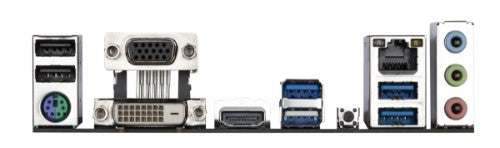

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Supported processor sockets	Socket AM4
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Harmonized System (HS) code	84733020
Product colour	Black
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
HDCP	Yes
Packaging data
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	740 g
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	84733020
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	740 g
Width	244 mm
Depth	205 mm
Packaging content
Batteries included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	740 g
mSATA ports quantity	0
