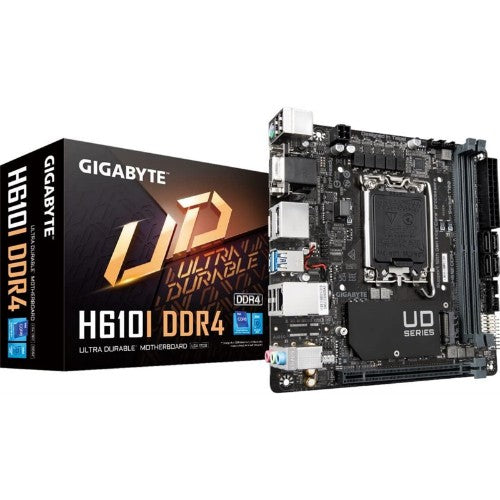

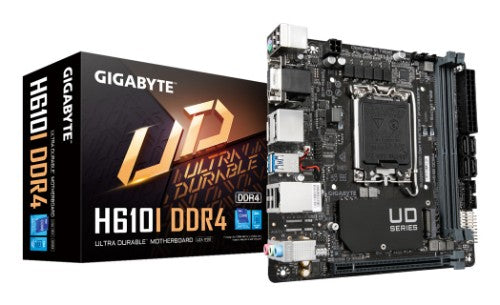

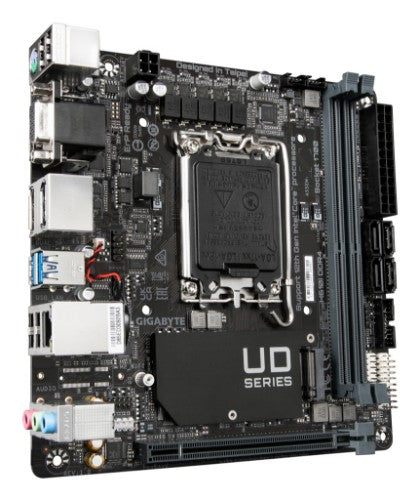

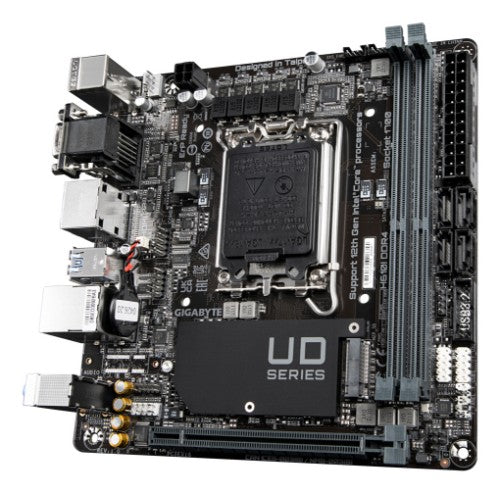

GIGABYTE H610I DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

H610I DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Key Features

• Supports Intel Core 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 4+1+1 Hybrid Digital VRM Design
• Intel GbE LAN with cFosSpeed Internet Accelerator Software
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	4
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Number of displays supported	3
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
Supported processor sockets	LGA 1700
Serial port headers	1
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	Not supported
HDMI version	2.0
Motherboard form factor	mini ITX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	64 GB
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	64 GB
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	5
Graphics
Number of displays supported	3
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0

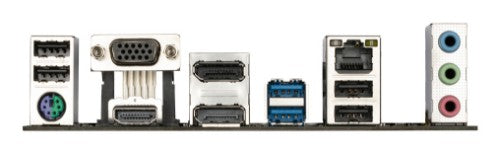

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.2
USB connector type	USB Type-A
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	3
HDMI version	2.0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Harmonized System (HS) code	84733020
Product colour	Brown
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0
Packaging data
Package width	222 mm
Package depth	180 mm
Package height	65 mm
Package weight	711 g
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton Internet Security (OEM version), LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	84733020
Weight & dimensions
Height	35 mm
Package width	222 mm
Package depth	180 mm
Package height	65 mm
Package weight	711 g
Width	170 mm
Depth	170 mm
Packaging content
Cables included	SATA
Bundled software	Norton Internet Security (OEM version), LAN bandwidth management software
Batteries included	Yes
Other features
Height	35 mm
Package width	222 mm
Package depth	180 mm
Package height	65 mm
Package weight	711 g
