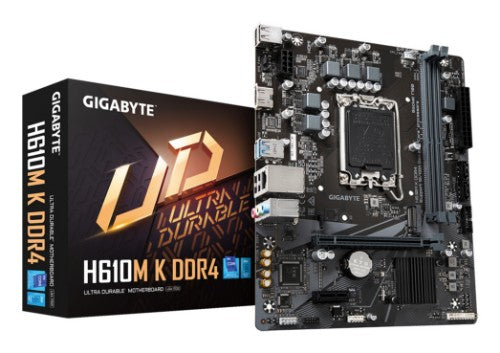

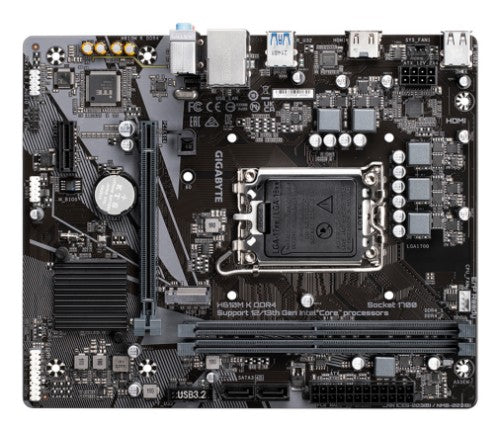

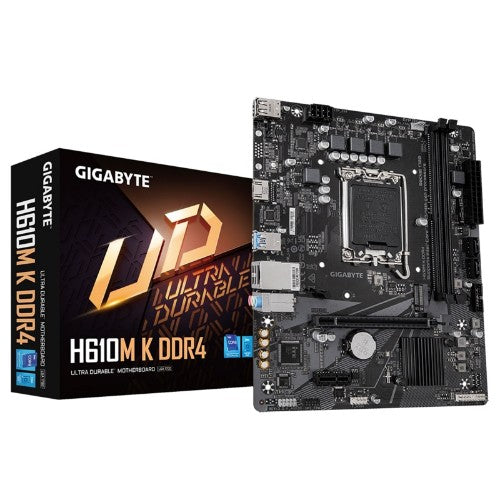

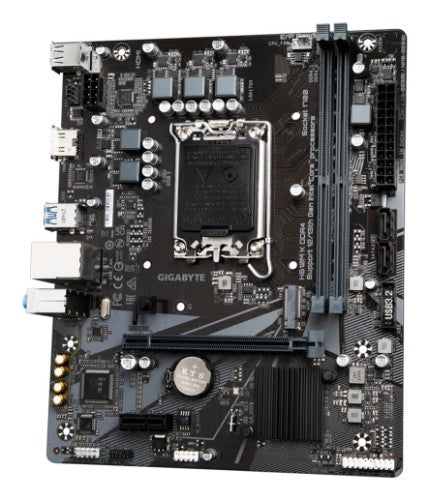

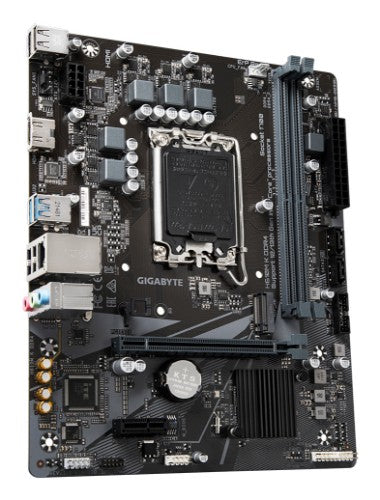

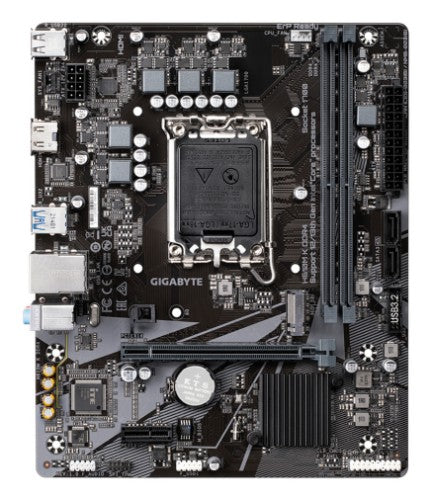

GIGABYTE H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 3+1+1 Phases Hybrid Power Design, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 3+1+1 Phases Hybrid Power Design, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Key Features

• Supports Intel Core 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• GbE LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	2
Front panel connector	Yes
Audio connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Power fan connector	Yes
Number of SATA III connectors	2
Number of EATX power connectors	1
Number of chassis fan connectors	1
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
HDMI version	2.1
Motherboard form factor	micro ATX
Component for	PC
Total number of SATA connectors	2
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors	1
Processor socket	LGA 1700
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory	64 GB
Maximum RDIMM memory	64 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	3
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes

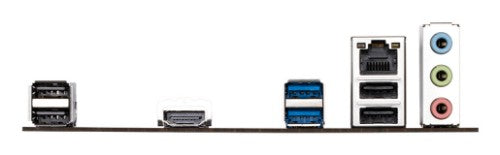

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Brown
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Packaging data
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	717 g
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	717 g
Width	226 mm
Depth	185 mm
Packaging content
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	717 g
