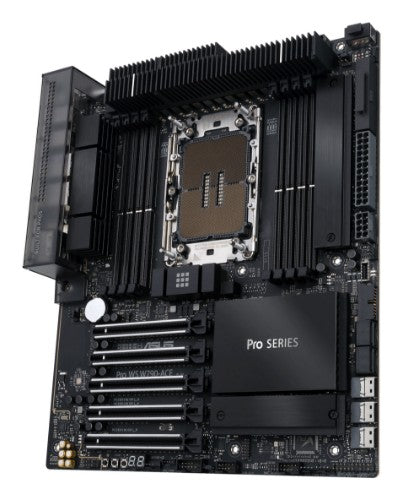

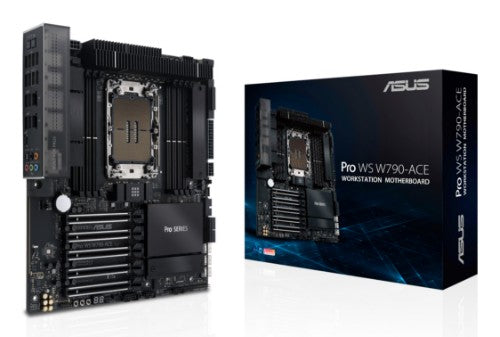

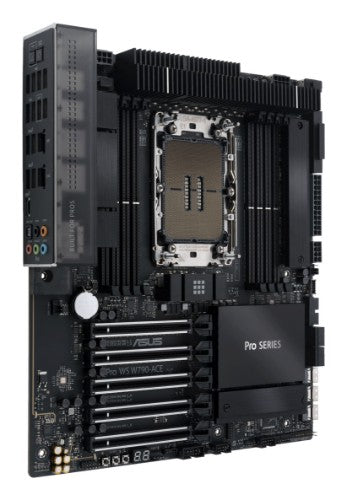

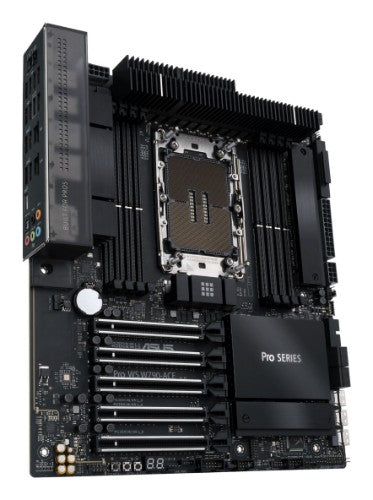

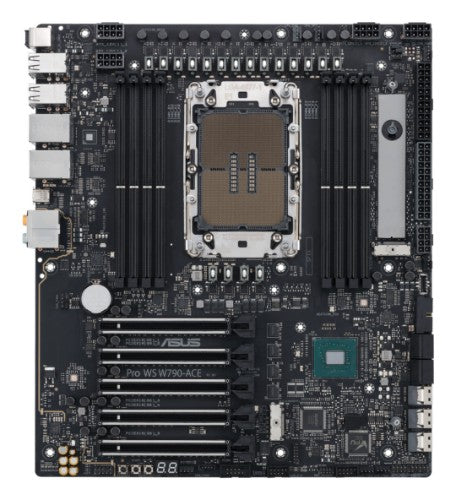

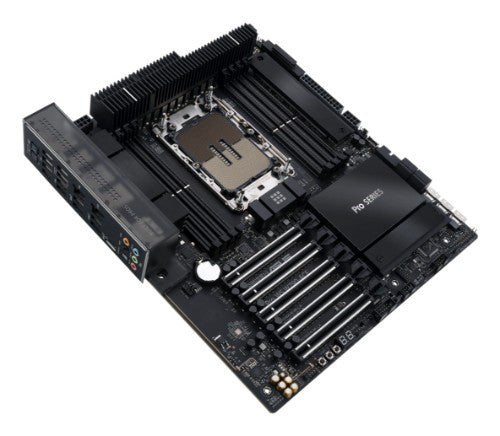

ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB

ASUS PRO WS W790-ACE, Intel, LGA 4677 (Socket E), Intel Xeon W, W-3400, W-2400, DDR5-SDRAM, 2.05 TB

Description

ASUS PRO WS W790-ACE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel Xeon W. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2.05 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: SSI CEB, Motherboard chipset family: Intel

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of COM connectors	1
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel W790
On-board graphics card	No
Motherboard form factor	SSI CEB
Component for	Workstation
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel W790
RAID levels	0, 1, 5, 10
Audio output channels	7.1 channels
Motherboard form factor	SSI CEB
Component for	Workstation
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Xeon W
Intel Xeon series	W-3400, W-2400
Processor socket	LGA 4677 (Socket E)
Memory
Number of memory slots	8
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Quad-channel
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Maximum internal memory	2.05 TB
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
On-board graphics card	No

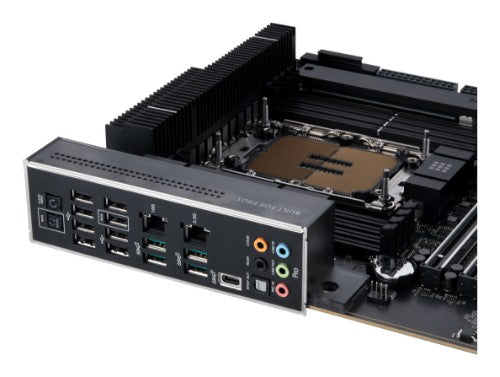

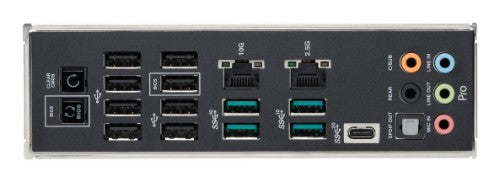

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	8
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel W790
Audio output channels	7.1 channels
Motherboard form factor	SSI CEB
Component for	Workstation
Audio chip	Realtek S1220A
Product colour	Black
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	5
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
Packaging data
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	3.52 kg
Software
Windows operating systems supported	Windows 10 x64, Windows 11
Weight & dimensions
Height	50 mm
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	3.52 kg
Weight	1.81 kg
Width	305 mm
Depth	277 mm
Other features
Height	50 mm
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	3.52 kg
mSATA ports quantity	0
Weight	1.81 kg
Intel Xeon series	W-3400, W-2400
