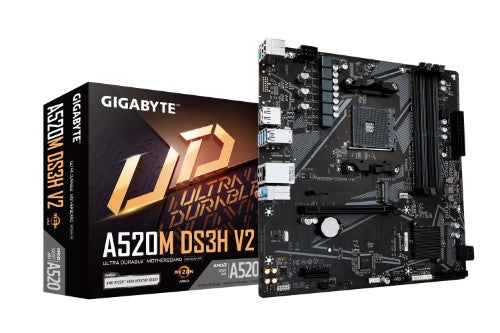

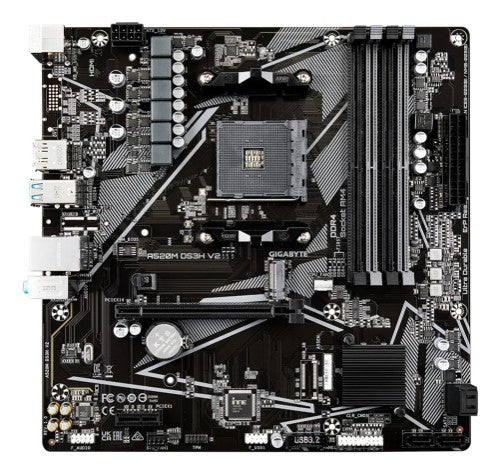

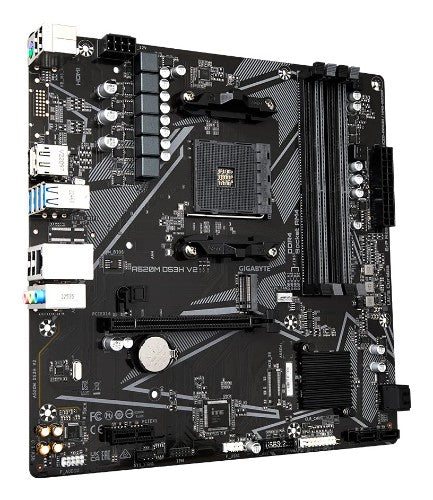

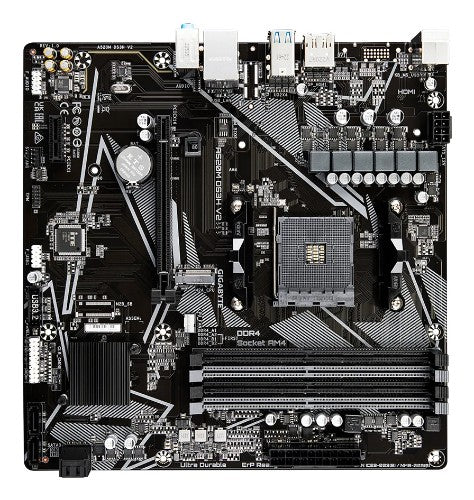

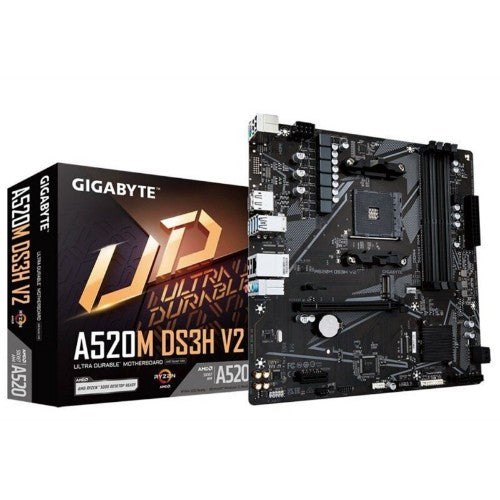

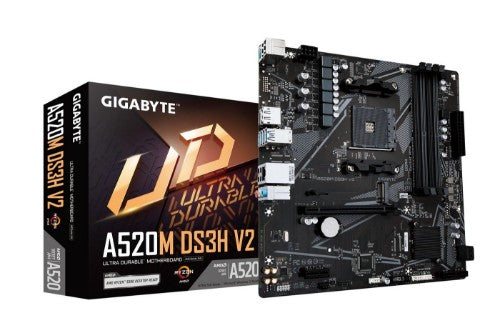

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1

A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1

Key Features

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Ultra Durable™ PCIe 3.0 x16 Slot
• NVMe PCIe 3.0 M.2 Connectors
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• GbE LAN with Bandwidth Management
• Rear DisplayPort and HDMI for Multi-display Support
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	4
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Power fan connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Number of EATX power connectors	1
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Number of displays supported	3
Motherboard chipset family	AMD
Supported processor sockets	Socket AM4
Serial port headers	1
PC health monitoring	CPU, LED, Power supply, Temperature, Voltage
HDMI version	2.1
Cooling type	Active
Motherboard form factor	micro ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	128 GB
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	AMD
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
PC health monitoring	CPU, LED, Power supply, Temperature, Voltage
Cooling type	Active
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	128 GB
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Supported processor sockets	Socket AM4
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	5
RAID support	Yes
Graphics
Number of displays supported	3
Maximum resolution	5120 x 2880 pixels
HDCP	Yes
Discrete graphics support	Yes

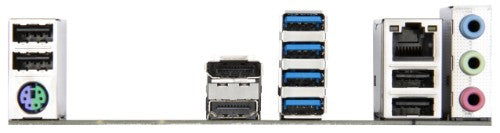

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	2.0
USB connector type	USB Type-A
USB 2.0 ports quantity	2
eSATA ports quantity	0
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	1
DisplayPorts quantity	1
Digital audio optical out	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 x64
Motherboard chipset family	AMD
Supported processor sockets	Socket AM4
PC health monitoring	CPU, LED, Power supply, Temperature, Voltage
Cooling type	Active
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC887
Product colour	Black
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
Maximum resolution	5120 x 2880 pixels
HDCP	Yes
Discrete graphics support	Yes
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	810 g
Software
Windows operating systems supported	Windows 10 x64
Drivers included	Yes
Bundled software	Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	810 g
Width	244 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Bundled software	Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Batteries included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	810 g
