ASUS

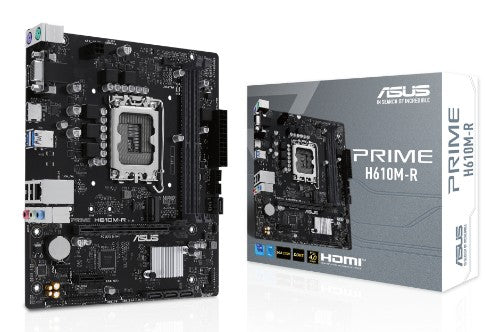

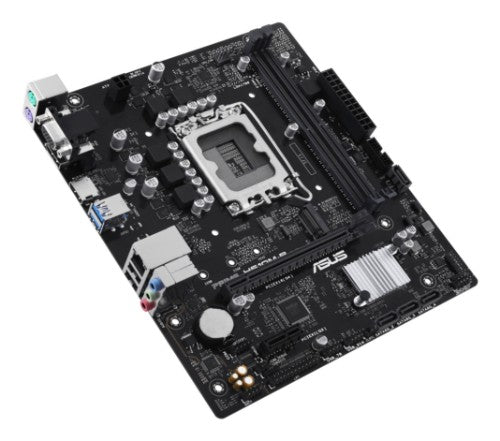

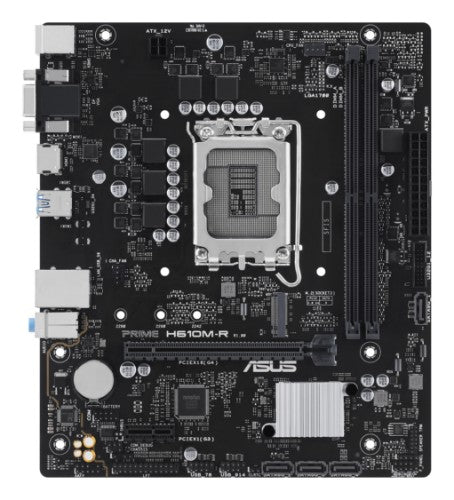

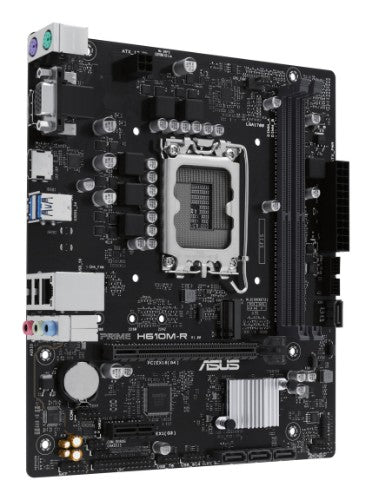

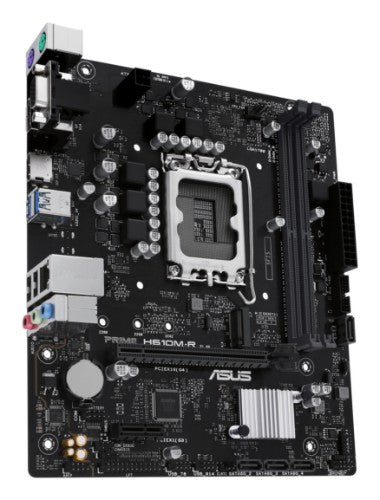

ASUS PRIME H610M-R-SI Intel H610 LGA 1700 micro ATX

SKU 90MB1GL0-M0ECY0
£57.96
£57.96
Excluding taxes
LGA 1700, Intel H610 Chipset, 2 x DDR5-SDRAM up to 96GB, LAN, 1 x RJ-45, 4 x SATA III, 1 x M.2(M), UEFI AMI, Micro ATX

Description



Intel® H610 (LGA 1700) micro-ATX motherboard with DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI™, VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header

  • Intel® LGA 1700 Socket: Ready for 13th & 12th Gen Intel® processors
  • Comprehensive Cooling: PCH heatsink
  • Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
  • 5X Protection III: Multiple hardware safeguards for all-round protection




Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.





Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.





Cooling

Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Customization

Prime H610 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
Audio




Specifications

Internal I/O
Number of M.2 (M) slots 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Audio connector Yes
12V power connector Yes
Supported storage drive interfaces M.2, SATA III
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
Number of SATA III connectors 4
Number of COM connectors 1
Number of chassis fan connectors 1
Front panel audio connector Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Technical details
Motherboard chipset family Intel
Motherboard chipset Intel H610
Supported processor sockets LGA 1700
Parallel processing technology support Not supported
Motherboard form factor micro ATX
Component for PC
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610
Supported processor sockets LGA 1700
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Expansion card interfaces
Audio connector Yes
Processor
Processor manufacturer Intel
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor sockets LGA 1700
Processor socket LGA 1700
Memory
Number of memory slots 2
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 5600,5400,5200,5000,4800 MHz
Maximum internal memory 96 GB
Unbuffered memory Yes
Supported memory clock speed (max) 5600 MHz
ECC сompatibility Non-ECC
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 5
Graphics
Parallel processing technology support Not supported

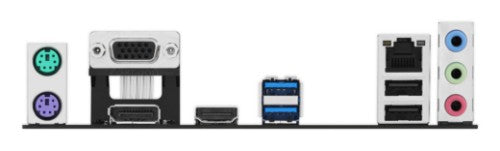

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 2.0 ports quantity 2
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 2
Microphone in Yes
Headphone outputs 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 1
Line-in Yes
Network
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610
Supported processor sockets LGA 1700
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Packaging data
Package width 246 mm
Package depth 223 mm
Package height 50 mm
Package weight 680 g
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Weight & dimensions
Height 36.5 mm
Package width 246 mm
Package depth 223 mm
Package height 50 mm
Package weight 680 g
Weight 437 g
Width 226 mm
Depth 195 mm

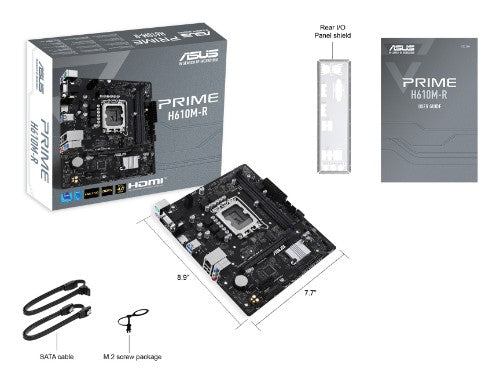

Packaging content
Cables included SATA
Other features
Height 36.5 mm
Package width 246 mm
Package depth 223 mm
Package height 50 mm
Package weight 680 g
Weight 437 g
