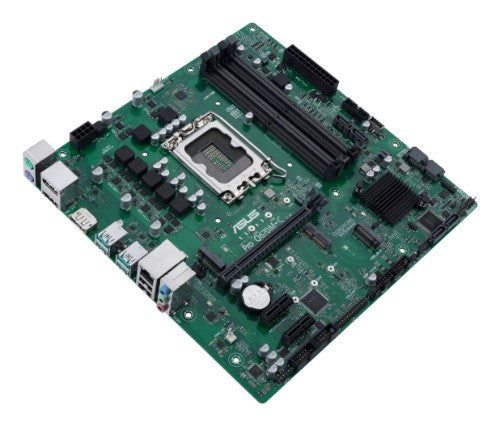

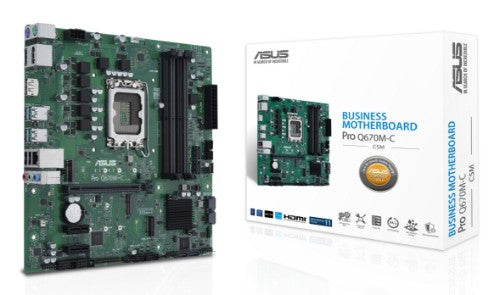

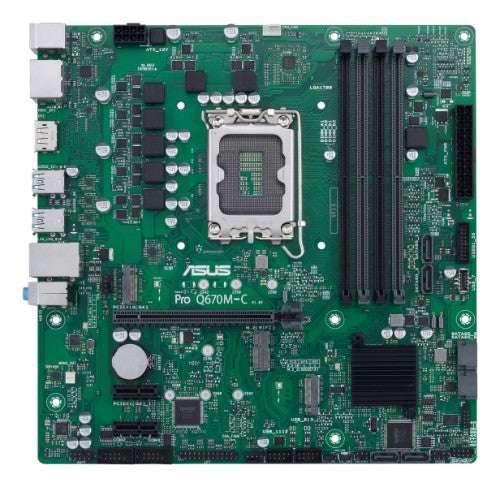

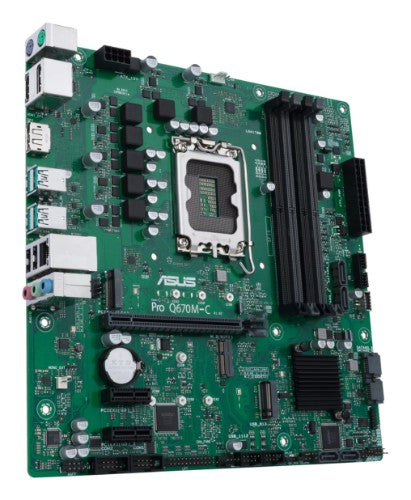

ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX

Micro-ATX Q670 business motherboard with Intel vPro support and enhanced security, reliability, manageability and serviceability

Key Features

• Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes

Description

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Number of COM connectors	2
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
Supported processor sockets	LGA 1700
Parallel processing technology support	Not supported
HDMI version	2.1
Cooling type	Active
Motherboard form factor	micro ATX
Component for	PC
Number of mounting holes	8
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1700
Cooling type	Active
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800,5000,5200,5400,5600 MHz
Maximum internal memory	192 GB
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported

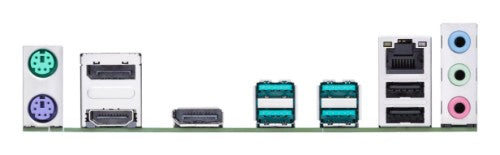

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Microphone in	Yes
Headphone outputs	2
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Number of mounting holes	8
Windows operating systems supported	Windows 10 x64, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
Supported processor sockets	LGA 1700
Cooling type	Active
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS memory size	256 Mbit
Power
Power source type	ATX
Software
Windows operating systems supported	Windows 10 x64, Windows 11
Drivers included	Yes
Weight & dimensions
Width	244 mm
Depth	244 mm

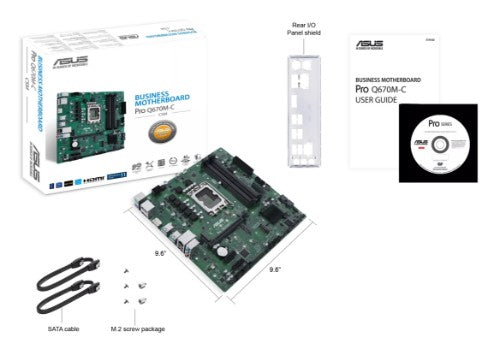

Packaging content
Drivers included	Yes
Cables included	SATA
