Gigabyte

GIGABYTE X870 GAMING WIFI6 Motherboard - Supports AMD Ryzen 9000 CPUs, 8+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6, 2.5GbE LAN, USB 4

SKU X870 GAMING WIFI6
£153.66
£153.66
Excluding taxes
X870 GAMING WIFI6 Motherboard - Supports AMD Ryzen 9000 CPUs, 8+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6, 2.5GbE LAN, USB 4

Key Features

  • Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Digital twin 8+2+2 phases VRM solution
  • Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
  • Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots 3
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Total number of SATA connectors 4
12V power connector Yes
Supported storage drive interfaces M.2, SATA III
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
Number of SATA III connectors 4
EPS power connector (8-pin) Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
USB 3.2 Gen 2x2 connectors 1
Technical details
Motherboard chipset family AMD
Motherboard chipset AMD X870
Supported processor sockets Socket AM5
PC health monitoring Fan, Temperature, Voltage
Motherboard form factor ATX
Component for PC
Total number of SATA connectors 4
Maximum internal memory supported by processor 256 GB
Warranty period 3 year(s)
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 7
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD X870
RAID levels 0, 1, 10
Supported processor sockets Socket AM5
PC health monitoring Fan, Temperature, Voltage
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer AMD
Maximum internal memory supported by processor 256 GB
Compatible processor series AMD Ryzen™ 7
Supported processor sockets Socket AM5
Processor socket Socket AM5
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory 256 GB
Supported memory clock speed (max) 8000 MHz
Storage controllers
Number of HDDs supported 7
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
RAID levels 0, 1, 10
Number of storage drives supported 4
RAID support Yes
Graphics
DirectX version 12.0

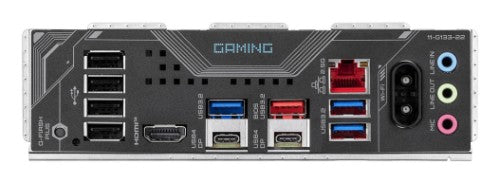

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 2.0 ports quantity 4
VGA (D-Sub) ports quantity 0
S/PDIF out port Yes
Microphone in Yes
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 2
USB4 Gen 2x2 ports quantity 2
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.3
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
WLAN controller model Realtek RTL8851BE
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD X870
Supported processor sockets Socket AM5
PC health monitoring Fan, Temperature, Voltage
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Product colour Black
Expansion slots
Number of M.2 (M) slots 3
PCI Express x4 slots 2
PCI Express x16 (Gen 5.x) slots 1
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS type UEFI AMI
Clear CMOS jumper Yes
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS button Yes
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Video
DirectX version 12.0
Packaging data
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 2.53 kg
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Number of battery cells 1
Lithium weight per battery 0.07 g
Battery type CR2032
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Weight & dimensions
Height 35 mm
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 2.53 kg
Weight 2.23 kg
Width 305 mm
Depth 244 mm
Packaging content
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included Yes
Other features
Height 35 mm
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 2.53 kg
Weight 2.23 kg
