MSI

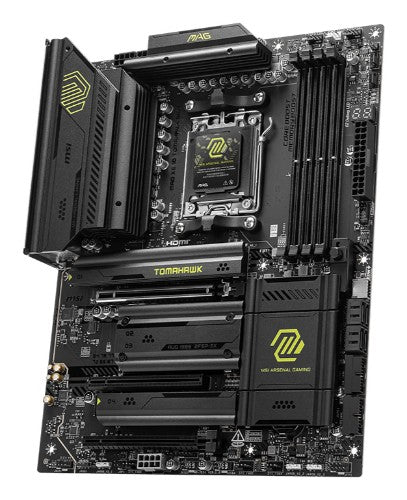

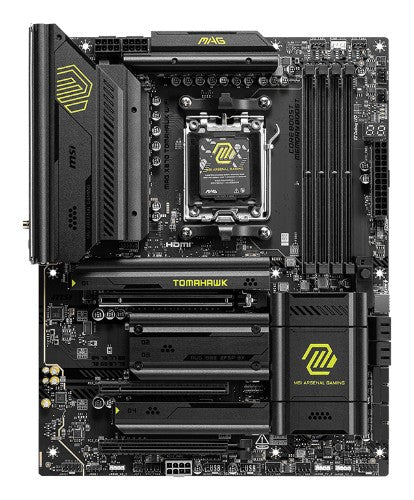

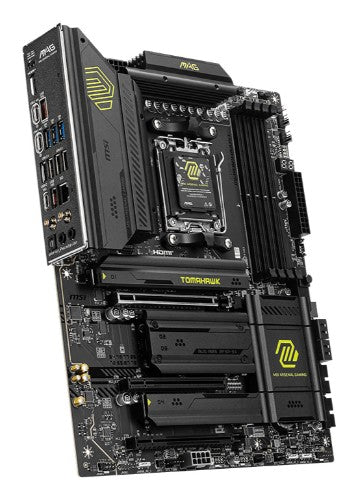

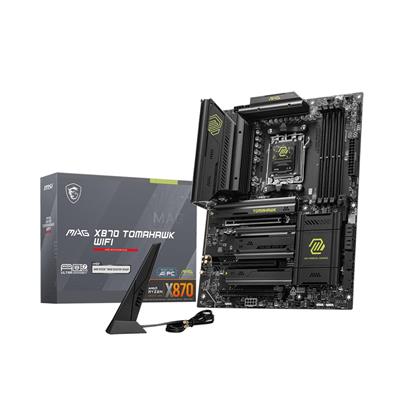

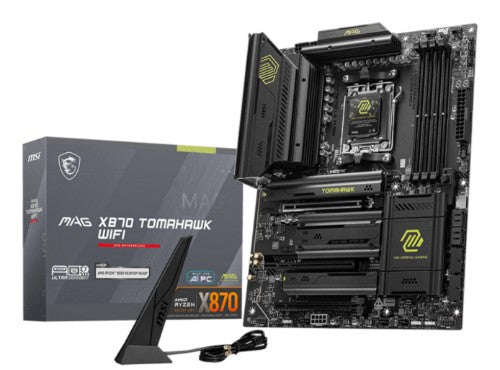

MSI MAG X870 TOMAHAWK WIFI motherboard AMD X870 Socket AM5 ATX

SKU MAG X870 TOMAHAWK WIFI
£230.44
£230.44
Excluding taxes
4 X DDR5, Socket AM5, Wi -Fi 7, 2,5GBE LAN, 4 X M.2

Description




MAG X870 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.

Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience






Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.





Lightning USB 40G

Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.





EZ PCIe Release

A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.





EZ M.2 Shield Frozr II

The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier





Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.





Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.





Quadruple M.2 Connectors

Onboard quadruple M.2 connectors for the maximum storage performance.





5G Network Solution

Featuring premium 5G LAN to deliver better network experience.





Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.





Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.





Audio Boost 5

Isolated audio with a high quality audio processor for the most immersive gaming experience


Specifications

Internal I/O
Number of M.2 (M) slots 4
Total number of SATA connectors 4
Supported storage drive interfaces M.2, SATA III
USB 2.0 connectors 4
mSATA ports quantity 0
Number of SATA connectors 0
Number of SATA III connectors 4
Number of SATA II connectors 0
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Technical details
Motherboard chipset family AMD
Motherboard chipset AMD X870
Supported processor sockets Socket AM5
PC health monitoring CPU, Fan, Temperature, Voltage
On-board graphics card No
Motherboard form factor ATX
Component for PC
Total number of SATA connectors 4
Maximum internal memory supported by processor 256 GB
Audio
Audio output channels 7.1 channels
Performance
Supported storage drive types HDD & SSD
Motherboard chipset family AMD
Motherboard chipset AMD X870
RAID levels 0, 1, 10
Supported processor sockets Socket AM5
PC health monitoring CPU, Fan, Temperature, Voltage
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer AMD
Maximum internal memory supported by processor 256 GB
Compatible processor series AMD Ryzen™ 7
Supported processor sockets Socket AM5
Processor socket Socket AM5
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
RAID levels 0, 1, 10
RAID support Yes
Graphics
On-board graphics card No

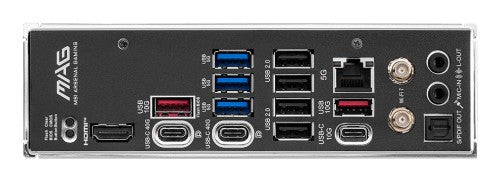

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 2.0 ports quantity 4
VGA (D-Sub) ports quantity 0
S/PDIF out port Yes
Microphone in Yes
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 2
USB4 Gen 2x2 ports quantity 2
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards Wi-Fi 7 (802.11be)
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.4
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Features
Motherboard chipset family AMD
Motherboard chipset AMD X870
Supported processor sockets Socket AM5
PC health monitoring CPU, Fan, Temperature, Voltage
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Product colour Black
Expansion slots
Number of M.2 (M) slots 4
PCI Express x16 slots 3
Other features
mSATA ports quantity 0
