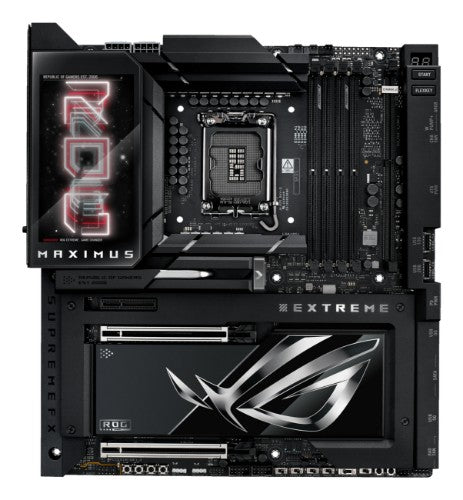

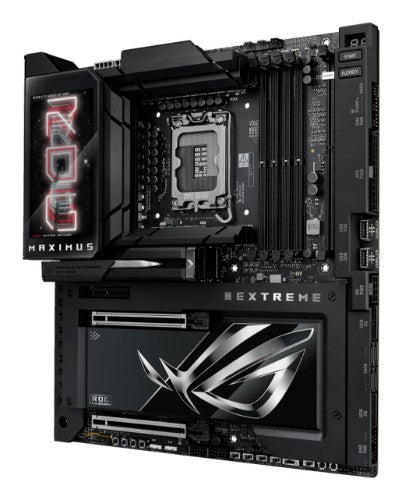

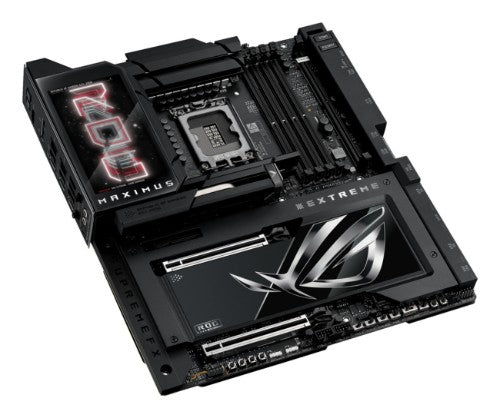

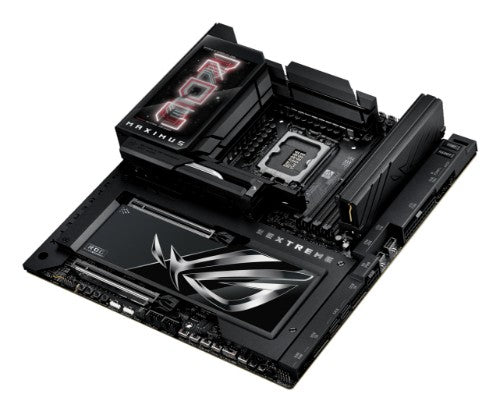

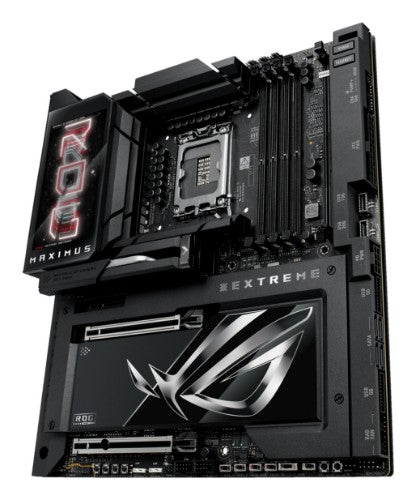

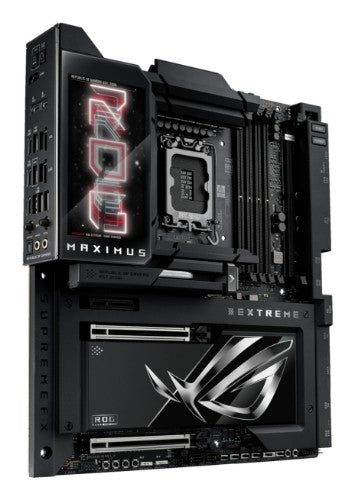

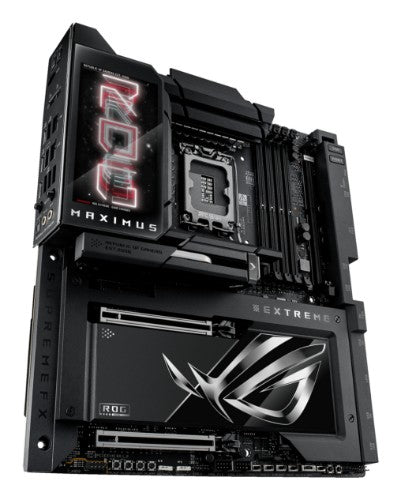

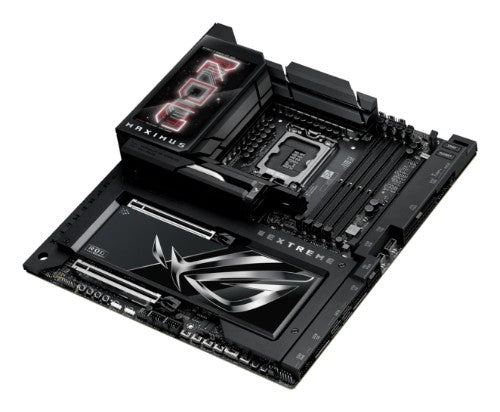

Asus ROG MAXIMUS Z890 EXTREME | Intel Z890 | 1851 | EATX | 4 DDR5 | HDMI | 2 TB5 | Wi-Fi 7 | 10G & 2.5G LAN | ROG Q-DIMM.2 Card | LCD Screen | 6x M.2

Intel Z890, LGA1851, 4 x DIMM slots, max. 192GB, DDR5, 2.5GB/10GB Ethernet, Wi-Fi 7, Bluetooth 5.4, 2 x 256 Mb Flash ROM, UEFI AMI BIOS, E-ATX Asus ROG MAXIMUS Z890 EXTREME | Intel Z890 | 1851 | EATX | 4 DDR5 | HDMI | 2 TB5 | Wi-Fi 7 | 10G & 2.5G LAN | ROG Q-DIMM.2 Card | LCD Screen | 6x M.2 Intel® Z890 LGA 1851 E-ATX motherboard Advanced AI PC-ready 24+2+1+2 power stages NPU Boost, DDR5 slots with NitroPath DRAM Technology DIMM Flex AEMP III WiFi 7 with ASUS WiFi Q-Antenna 3D VC M.2 Heatsink Three PCIe 5.0 M.2 slots and one PCIe 4.0 slot onboard with ROG M.2 PowerBoost Two PCIe 4.0 M.2 slots on ROG Q-DIMM.2 card Two PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim Full support for next-gen graphics cards PCIe Slot Q-Release Slim Two Thunderbolt™ 5 ports USB 20Gbps Type-C® front-panel connector ASUS AI Advisor AI Overclocking AI Cooling II AI Networking II Full Colour 5” LCD Display

Description

ROG Maximus Z890 Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes. The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes. Intel® Z890 LGA 1851 E-ATX motherboard Advanced AI PC-ready 24+2+1+2 power stages NPU Boost, DDR5 slots with NitroPath DRAM Technology DIMM Flex AEMP III WiFi 7 with ASUS WiFi Q-Antenna 3D VC M.2 Heatsink Three PCIe 5.0 M.2 slots and one PCIe 4.0 slot onboard with ROG M.2 PowerBoost Two PCIe 4.0 M.2 slots on ROG Q-DIMM.2 card Two PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim Full support for next-gen graphics cards PCIe Slot Q-Release Slim Two Thunderbolt™ 5 ports USB 20Gbps Type-C® front-panel connector ASUS AI Advisor AI Overclocking AI Cooling II AI Networking II Full Colour 5” LCD Display

Specifications

Internal I/O
Number of M.2 (M) slots	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Parallel processing technology support	Not supported
On-board graphics card	No
Motherboard form factor	Extended ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
RAID levels	0, 1, 5
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8800 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5
Number of storage drives supported	10
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	2
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Component for	PC
Audio chip	Realtek ALC4082
Product colour	Black
Expansion slots
Number of M.2 (M) slots	6
PCI Express x16 (Gen 5.x) slots	2
PCI Express x4 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
Packaging data
Package width	380 mm
Package depth	320 mm
Package height	125 mm
Package weight	5.73 kg
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Package width	380 mm
Package depth	320 mm
Package height	125 mm
Package weight	5.73 kg
Width	305 mm
Depth	277 mm
Other features
Package width	380 mm
Package depth	320 mm
Package height	125 mm
Package weight	5.73 kg
mSATA ports quantity	0
