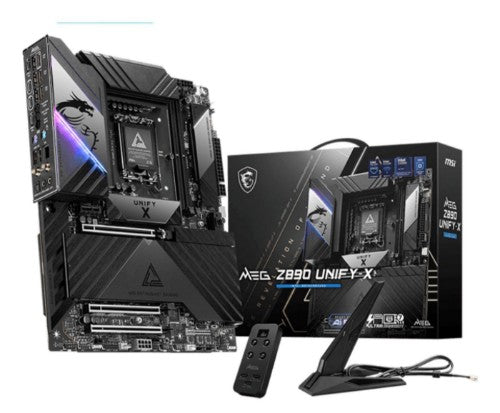

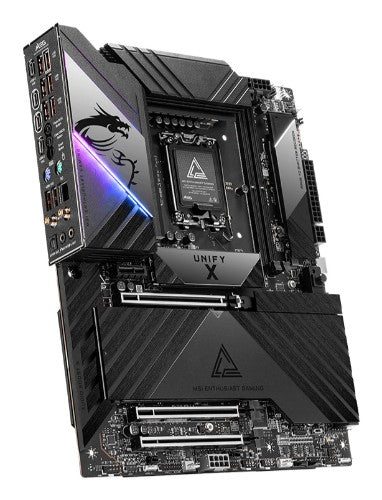

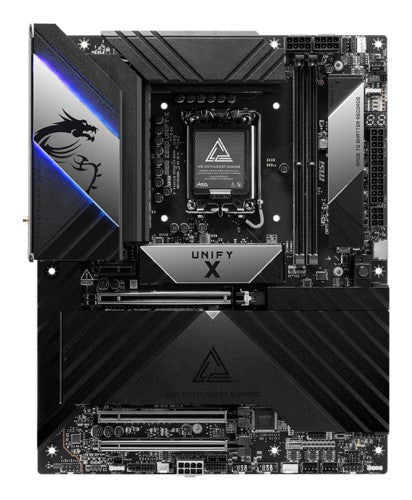

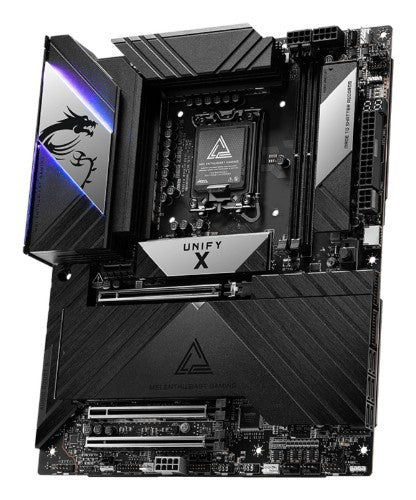

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX

ATX, LGA 1851, Wi-Fi 7, 5G LAN, 1 x HDMI, 243.84 x 304.8 mm

Key Features

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9600+ MT/s (OC)
• Ultra Performance: Direct 20+2+1+1 Phases, TLVR Inductors, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Aluminum Cover, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Ultra Connect: Dual Thunderbolt™ 4 ports, Intel® Killer™ 5G LAN, and Full-speed Intel® Killer™ Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 6x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

The V power makes the MEG Z890 UNIFY-X motherboard defeating all challenges among Z890 motherboards. Employing AI server-grade TLVR inductor to enhance overall efficiency and provide the extreme performance. It also equips all the latest technology such as DDR5, PCIe 5.0, Killer Wi-fi 7 and 5G LAN, Thunderbolt 4, and all the EZ DIY features and Supplemental PCIe Power, ready for all challenges of gaming and AI.

The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of.

With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

Tuning Controller is an exclusive accessory designed for overclocking enthusiasts. It allows users to fine-tune overclocking parameters easily with just one click. Featuring multiple shortcut buttons, the Tuning Controller simplifies the complex overclocking process, making it more accessible for power users aiming to optimize system performance with precision.

ULTRA PERFORMANCE

DIRECT 20+2+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 UNIFY-X is ready for the challenge of high-end processors.

FROZR DESIGN

Specifications

Internal I/O
Number of M.2 (M) slots	6
Total number of SATA connectors	6
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	4
Number of SATA connectors	0
Number of SATA III connectors	6
Number of SATA II connectors	0
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Number of EPS power connectors (8-pin)	1
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	Intel LGA1851
On-board graphics card	No
Motherboard form factor	ATX
Component for	PC
Total number of SATA connectors	6
Maximum internal memory supported by processor	128 GB
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
RAID levels	0, 5, 10
Supported processor sockets	Intel LGA1851
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	128 GB
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	Intel LGA1851
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800,6400 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	9600 MHz
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
On-board graphics card	No

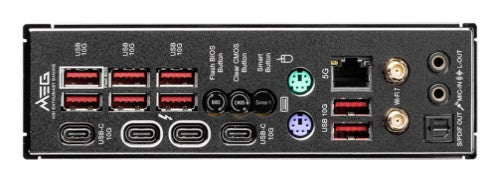

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	Intel LGA1851
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC4080
Product colour	Black
Expansion slots
Number of M.2 (M) slots	6
PCI Express x1 slots	1
PCI Express x16 (Gen 5.x) slots	3
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Width	243.8 mm
Depth	304.8 mm
