GIGABYTE W790 AI TOP Motherboard - Supports Intel Xeon CPUs, 16+2+2 phases VRM, up to 5600MHz DDR5 (OC), 4xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 7, 10 GbE LAN, Thunderbolt 4

W790 AI TOP Motherboard - Supports Intel Xeon CPUs, 16+2+2 phases VRM, up to 5600MHz DDR5 (OC), 4xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 7, 10 GbE LAN, Thunderbolt 4

Key Features

• Training your own AI on your desk
• Support 5th Gen Intel Xeon W processors
• Digital twin 16+2+2 phases VRM solution
• Ultimate Scalibility : 5 * PCIe 5.0 x16 slots for Multi-GPU and 6*PCIe 5.0/4.0 M.2 slots
• Next-gen Connectivity : Dual Thunderbolt 4 Type-C with DP-Alt
• Blazing Fast Networks : Dual Sever-grade 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
• 8 Channel DDR5 : 8*SMD ECC R-DIMMs with Maxmium 2TB capacity
• Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
• Friendly UI : AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	8
Number of chassis fan connectors	6
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	4
Number of water pump connectors	1
Number of temperature sensor headers	2
Number of RGB LED pin headers	4
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel W790
Trusted Platform Module (TPM)	Yes
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
Motherboard form factor	Extended ATX
Component for	Server
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	8
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel W790
RAID levels	0, 1, 5, 10
Trusted Platform Module (TPM)	Yes
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Component for	Server
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Xeon®
Intel Xeon series	W-2400, W-3400, W3500, W-2500
Processor socket	LGA 4677 (Socket E)
Memory
Number of memory slots	8
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Octa-channel
Supported memory clock speeds	4800,5600 MHz
Maximum internal memory	2 TB
Maximum RDIMM memory	256 GB
Supported memory clock speed (max)	5600 MHz
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	8
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	14
RAID support	Yes
Graphics
Parallel processing technology support	Not supported

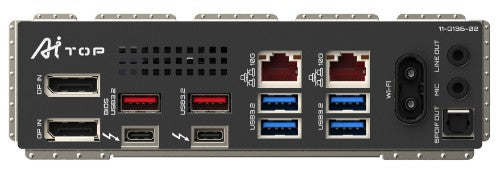

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	0
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	2
S/PDIF out port	Yes
Headphone outputs	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
DisplayPorts quantity	2
Digital audio optical out	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller	Intel X710-AT2
Ethernet interface type	10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Features
Power source type	ATX
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel W790
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Component for	Server
Audio chip	Realtek ALC897
Product colour	Black
Expansion slots
Number of M.2 (M) slots	6
PCI Express x16 (Gen 5.x) slots	5
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	5.0
5th M.2 largest key size	2280
5th M.2 highest PCI Express generation	4.0
6th M.2 largest key size	2280
6th M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	512 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Processor special features
Trusted Platform Module (TPM)	Yes
Packaging data
Package width	363 mm
Package depth	383 mm
Package height	93 mm
Package weight	5.7 kg
Software
Windows operating systems supported	Windows 11 x64
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	Taiwan
Weight & dimensions
Height	35 mm
Package width	363 mm
Package depth	383 mm
Package height	93 mm
Package weight	5.7 kg
Weight	4.87 kg
Width	305 mm
Depth	330 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Other features
Height	35 mm
Package width	363 mm
Package depth	383 mm
Package height	93 mm
Package weight	5.7 kg
Weight	4.87 kg
Intel Xeon series	W-2400, W-3400, W3500, W-2500
