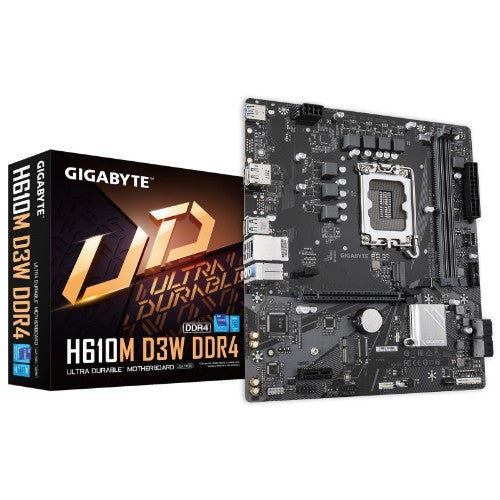

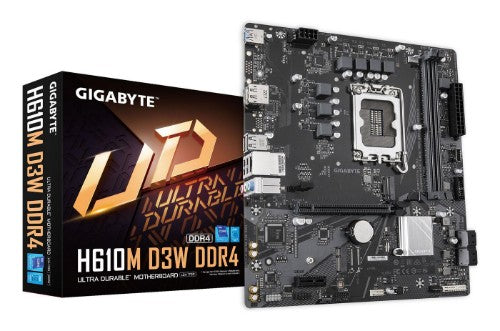

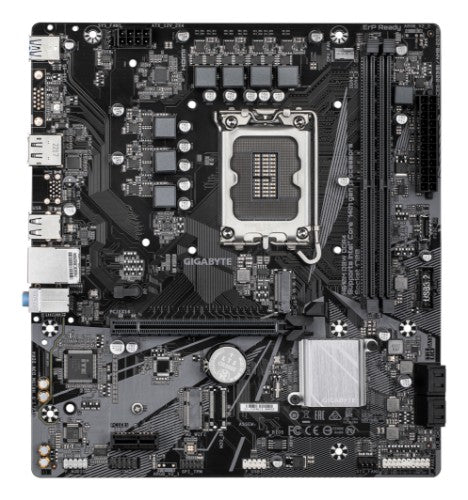

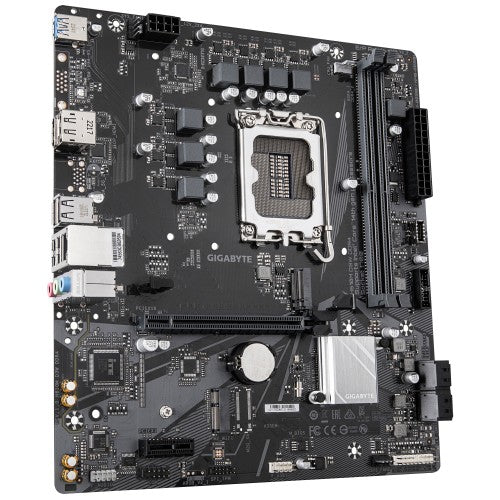

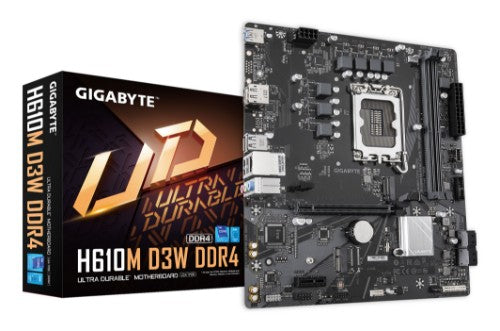

GIGABYTE H610M D3W DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 5+1+1 phases VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

H610M D3W DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 5+1+1 phases VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Key Features

• Supports Intel Core 14th/ 13th/ 12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 5+1+1 Hybrid Digital VRM Design
• GbE LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
Serial port headers	1
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
HDMI version	2.1
Motherboard form factor	micro ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	32 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	5
Graphics
Parallel processing technology support	Not supported
DirectX version	12.0

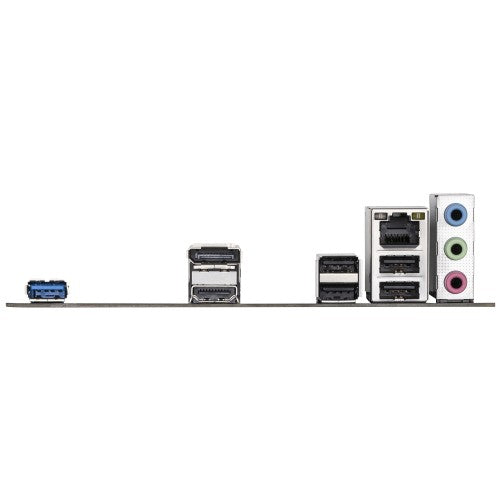

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.2
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Microphone in	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Grey
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
DirectX version	12.0
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	800 g
Software
Windows operating systems supported	Windows 10, Windows 11
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	800 g
Weight	770 g
Width	244 mm
Depth	220 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	800 g
Weight	770 g
