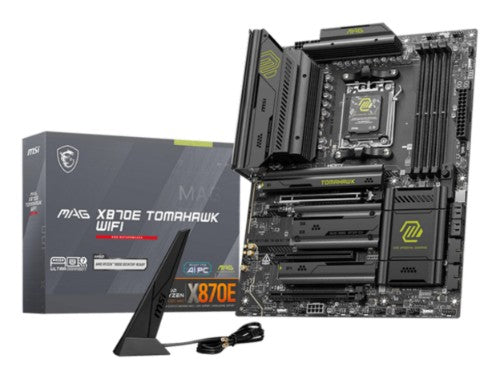

MSI MAG X870E TOMAHAWK WIFI | Socket AM5 | X870E | DDR5 | S-ATA 6Gb/s | ATX

MPG X870E, 4 DIMMs DDR5 - 8400+MT/s (OC), Socket AM5, Ultra Performance: 14+2+1 Duet Rail Power System, 5Gbps LAN, Wi-Fi 7, 2x USB4 MSI MAG X870E TOMAHAWK WIFI | Socket AM5 | X870E | DDR5 | S-ATA 6Gb/s | ATX Motherboard AM5 X870E Wi-Fi 7

Key Features

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Description

Msi X870 Tomahawk wifi title

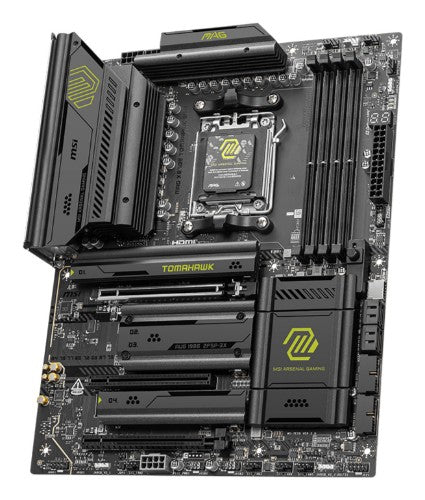

MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components. Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors. Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC). Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material. Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience. EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna. Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2. Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission. Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	4
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
mSATA ports quantity	0
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Supported processor sockets	Socket AM5
PC health monitoring	CPU, Fan, Temperature, Voltage
On-board graphics card	No
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	256 GB
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Supported processor sockets	Socket AM5
PC health monitoring	CPU, Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	256 GB
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800,5600,8400 MHz
Maximum internal memory	256 GB
Supported memory clock speed (max)	8400 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	8
Graphics
On-board graphics card	No

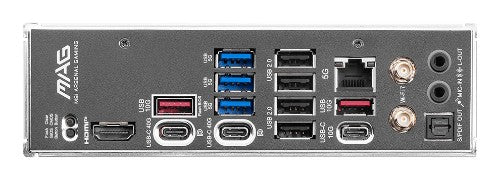

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	2
USB4 Gen 2x2 ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8126
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Supported processor sockets	Socket AM5
PC health monitoring	CPU, Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
Weight & dimensions
Width	243.8 mm
Depth	304.8 mm
Other features
mSATA ports quantity	0
