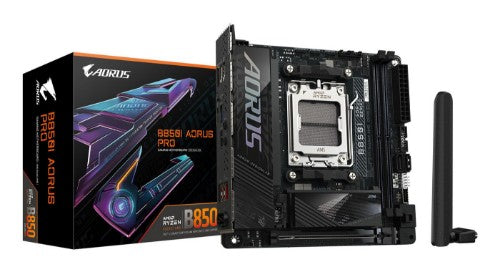

GIGABYTE B850I AORUS PRO Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+1 Phases Digital VRM, up to 8400MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 7, USB 3.2 Gen 2

B850I AORUS PRO Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+1 Phases Digital VRM, up to 8400MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 7, USB 3.2 Gen 2

Key Features

• 8+2+1 Phases Digital VRM with 80A Smart Power Stage
• Dual Channel DDR5：2*DIMMs
• PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
• M.2 Gen5 with EZ-Latch Plus
• Fully Covered MOSFET Heatsinks
• Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
• 2.5GbE LAN, Q-Flash Plus

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	2
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
Number of SATA connectors	0
Number of SATA III connectors	2
Number of SATA II connectors	0
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	1
Number of RGB LED pin headers	4
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
On-board graphics card	No
HDMI version	2.1
Motherboard form factor	mini ITX
Component for	PC
Total number of SATA connectors	2
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
RAID levels	0, 1, 10
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8400 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	4
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	2.1
USB 2.0 ports quantity	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Features
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Product colour	Black, Brown
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Software
Windows operating systems supported	Windows 11 x64
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Weight	1.3 kg
Width	170 mm
Depth	170 mm
Packaging content
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Other features
Height	35 mm
mSATA ports quantity	0
Weight	1.3 kg
