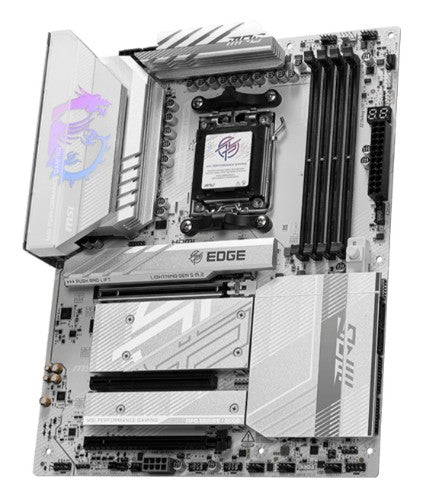

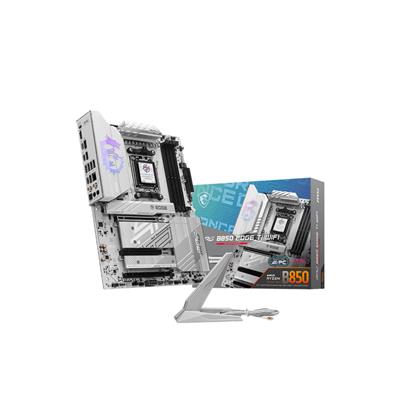

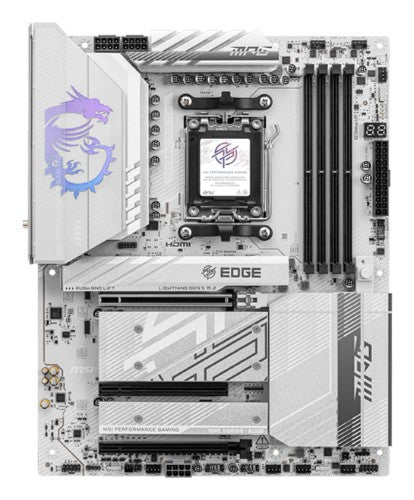

MSI MPG B850 EDGE TI WIFI motherboard AMD B850 Socket AM5 ATX

AMD B850 Chipset, Socket AM5, 4 DIMMs DDR5 - 8400+ MT/s (OC), Wi-Fi 7, 5Gbps LAN

Key Features

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
• High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

MPG B850 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.

MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Specifications

Internal I/O
Number of M.2 (M) slots	4
Number of SATA Express connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	4
Supported storage drive interfaces	M.2, Micro SATA III
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
mSATA ports quantity	0
Number of SATA connectors	0
Number of SATA III connectors	4
CPU fan connector	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	6
Number of water pump connectors	1
Number of RGB LED pin headers	3
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Supported processor sockets	Socket AM5
On-board graphics card	No
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	256 GB
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
RAID levels	0, 1, 10
Supported processor sockets	Socket AM5
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	256 GB
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800,5600,8400 MHz
Maximum internal memory	256 GB
Supported memory clock speed (max)	8400 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, Micro SATA III
RAID levels	0, 1, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Supported processor sockets	Socket AM5
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC4080
Product colour	White
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
Software
Windows operating systems supported	Windows 11 x64
Weight & dimensions
Width	304.8 mm
Depth	243.8 mm
Other features
mSATA ports quantity	0
