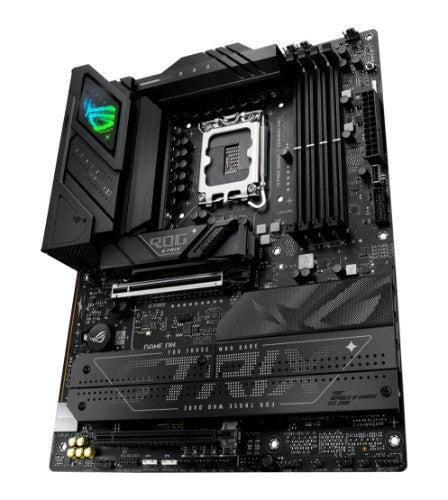

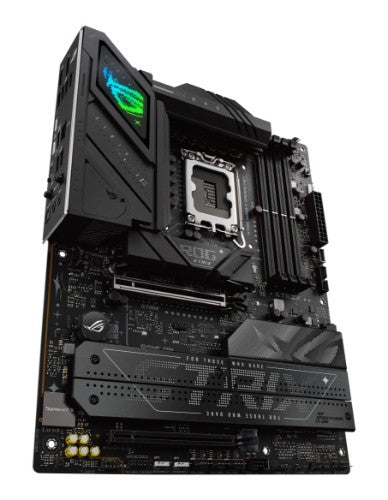

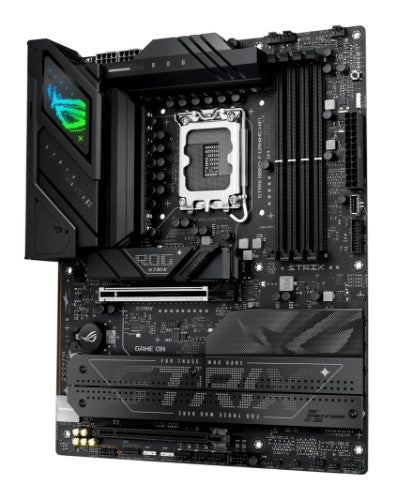

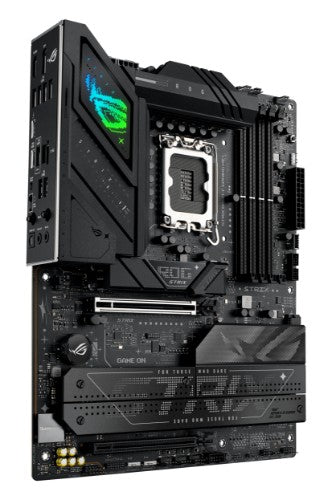

ASUS ROG STRIX B860-F GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX

SKU 90MB1JG0-M0EAY0
£296.68
£296.68
Excluding taxes
Intel B860, LGA1851, 4 x DIMM slots, max. 256GB, DDR5, 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, ATX

Description

ROG STRIX B860-F gaming wifi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles.

Specifications

Internal I/O
Number of M.2 (M) slots 4
Thunderbolt headers 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
12V power connector Yes
Supported storage drive interfaces M.2, SATA III
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Number of chassis fan connectors 4
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
Chassis intrusion connector Yes
ATX Power connector (24-pin) Yes
Number of CPU fan connectors 1
Technical details
Motherboard chipset family Intel
Motherboard chipset Intel B860
Parallel processing technology support Not supported
Motherboard form factor ATX
Component for PC
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 11
Motherboard chipset family Intel
Motherboard chipset Intel B860
RAID levels 0, 1, 5, 10
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer Intel
Compatible processor series Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Maximum internal memory 256 GB
Unbuffered memory Yes
Supported memory clock speed (max) 9066 MHz
ECC сompatibility Non-ECC
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
RAID levels 0, 1, 5, 10
Number of storage drives supported 8
RAID support Yes
Graphics
Parallel processing technology support Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 2.0 ports quantity 0
VGA (D-Sub) ports quantity 0
Thunderbolt ports quantity 1
S/PDIF out port Yes
Microphone in Yes
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Network
Ethernet LAN Yes
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.4
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Features
Windows operating systems supported Windows 11
Motherboard chipset family Intel
Motherboard chipset Intel B860
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Audio chip Realtek ALC4080
Product colour Multicolour
Expansion slots
Number of M.2 (M) slots 4
PCI Express x16 (Gen 4.x) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button Yes
Packaging data
Package width 350 mm
Package depth 265 mm
Package height 71 mm
Package weight 2.29 kg
Software
Windows operating systems supported Windows 11
Weight & dimensions
Height 50 mm
Package width 350 mm
Package depth 265 mm
Package height 71 mm
Package weight 2.29 kg
Weight 1.51 kg
Width 305 mm
Depth 244 mm
Other features
Height 50 mm
Package width 350 mm
Package depth 265 mm
Package height 71 mm
Package weight 2.29 kg
Weight 1.51 kg
