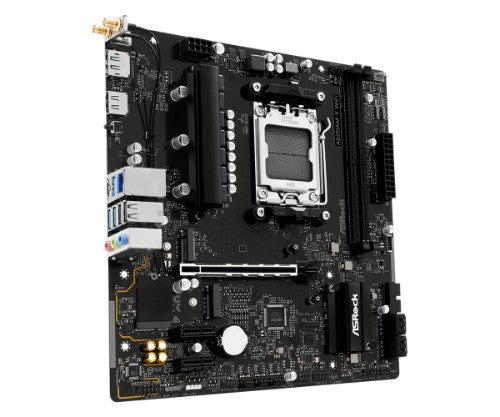

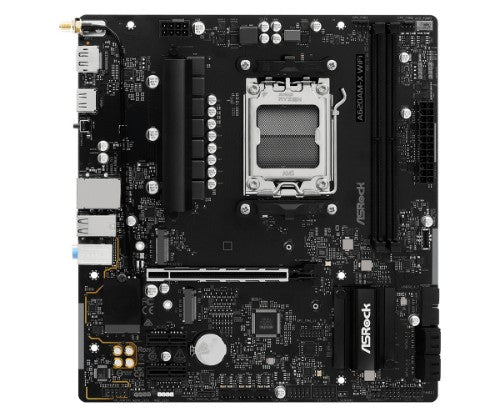

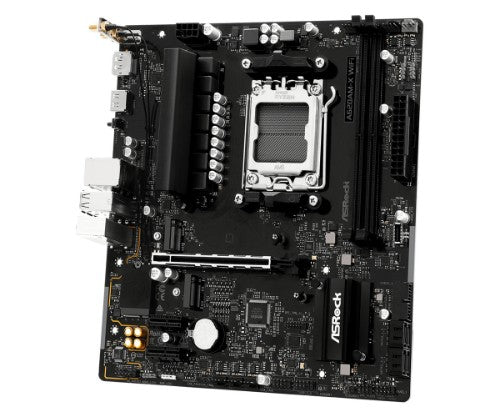

Asrock A620AM-X WiFi AMD A620A Socket AM5 micro ATX

Socket AM5, AMD A620A Chipset, 2 x DDR5-SDRAM up to 128GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX

Key Features

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+1+1 Power Design, Dr.MOS for VCore
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec
• 2 Hyper M.2 (PCIe Gen4x4)
• 4 SATA3
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
• 5 USB 3.2 Gen1 (3 Rear, 2 Front)
• 6 USB 2.0 (2 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11ac Wi-Fi 5 + Bluetooth
• Supports BIOS Flashback

Description

The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	1
Number of RGB LED pin headers	4
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A620A
On-board graphics card	Yes
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD A620A
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Maximum number of SMP processors	1
Processor socket	Socket AM5
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Graphics
On-board graphics card	Yes
HDCP	Yes
Graphics card family	AMD
HDCP version	2.3

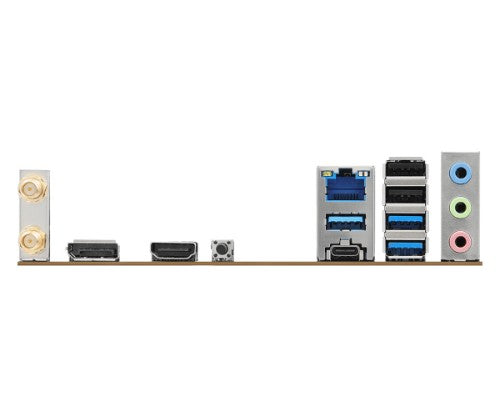

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD A620A
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Video
HDCP	Yes
Graphics card family	AMD
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width	244 mm
Depth	226 mm

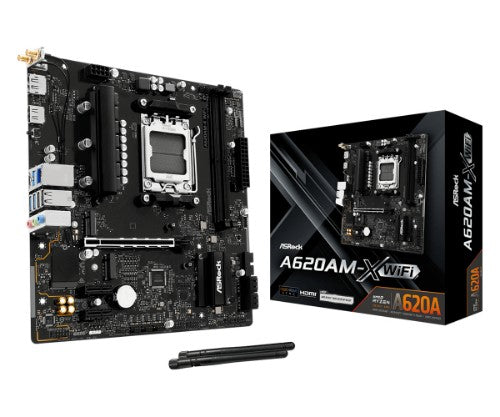

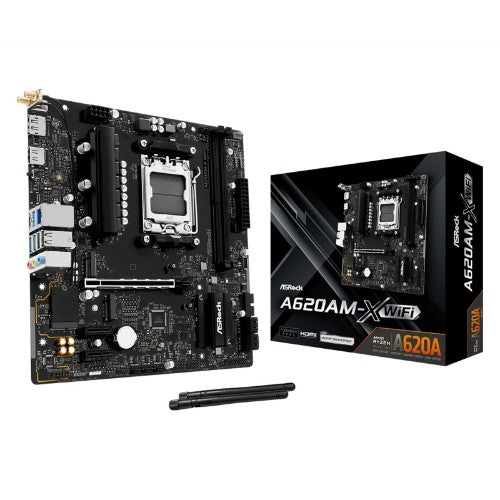

Packaging content
Cables included	SATA
