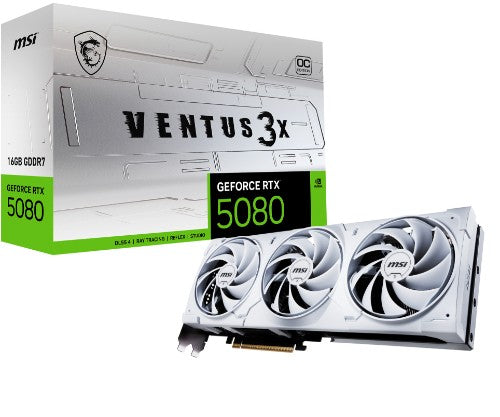

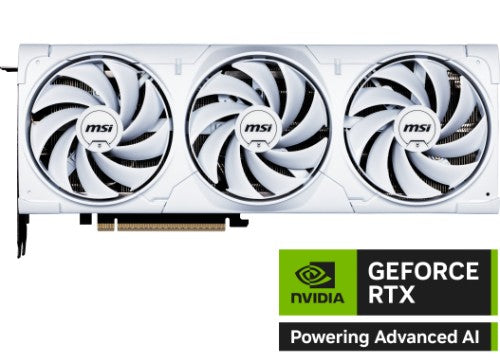

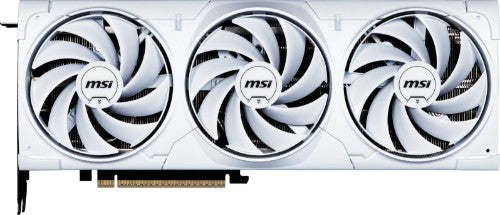

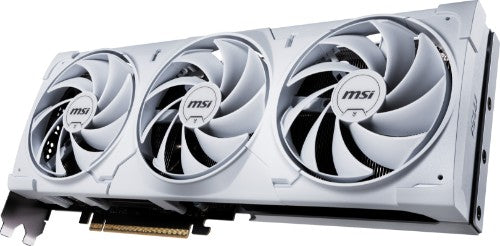

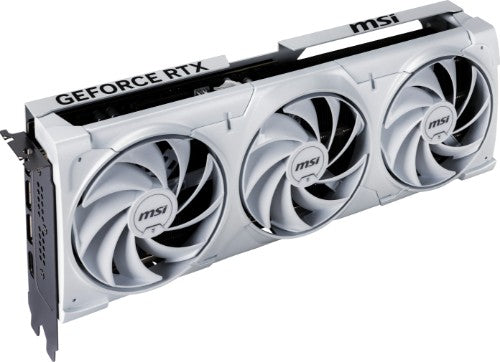

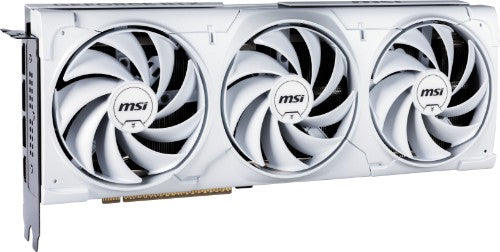

MSI GeForce RTX 5080 16G Ventus 3X OC White | 16GB | GDDR7 | PCI Express 5.0 | 2655MHz | 30000MHz

NVIDIA GeForce RTX 5080, 16GB GDDR7, 256 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1b), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 360W

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Core Clocks:
• Extreme Performance: 2655 MHz (MSI Center)
• Boost: 2640 MHz
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management

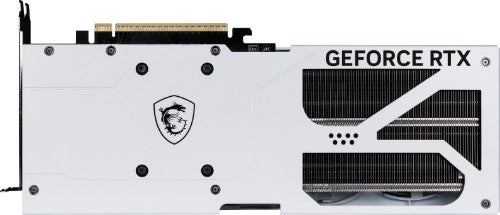

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world

Description

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Triple Fan: Three fans and a huge heatsink ensure a cool and quiet experience for you. TORX FAN 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow. Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel -plated copper baseplate and transferred. Core Pipes: Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management. Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat. Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise. DrMOS: DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls. Fuse: Additional fuses built into the custom PCB provide additional safeguards against electrical damage. MSI Centre: The exclusive MSI Centre software lets you monitor, tweak and optimize MSI products in real-time. Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2640 MHz
Maximum displays per videocard	4
CUDA cores	10752
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5080
Memory
Discrete graphics card memory	16 GB
Memory bandwidth (max)	30 GB/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
Dual Link DVI	No
CUDA cores	10752
Performance
NVIDIA G-SYNC	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
TV tuner integrated	No
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Fan diameter	12 cm
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
Number of slots	2
Power
Supplementary power connectors	1x 16-pin
Power consumption (typical)	360 W
Minimum system power supply	850 W
Weight & dimensions
Number of slots	2
Weight	1.08 kg
Height	121 mm
Depth	49 mm
Length	303 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
TV tuner integrated	No
System requirements
Minimum system power supply	850 W
Packaging data
Package type	Box
Package width	385 mm
Package height	235 mm
Package depth	90 mm
Package weight	1.58 kg
Cables included	Power
Packaging content
Cables included	Power
Logistics data
Products per shipping (inner) case	1 pc(s)
