Gigabyte Radeon RX 9070 XT Gaming OC ICE | 16GB | GDDR6 | PCI Express 5.0 | 3060MHz | 20000MHz

AMD Radeon RX 9070 XT, 16GB GDDR6, 256 bit, PCI Express 5.0, 2 x HDMI (2.1b), 2 x DP (2.1a), DirectX 12.0, OpenGL 4.6 Powered by Radeon RX 9070 XT. Integrated with 16GB GDDR6 256bit memory interface. WINDFORCE cooling system. Hawk fan. Server-grade Thermal conductive gel. RGB Lighting. Dual BIOS (Performance / Silent). Reinforced structure.

Description

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
This animation is for illustrative purposes only. Actual product appearance may vary.

EXCELLENCE IN ESSENTIAL
REINFORCED STRUCTURE

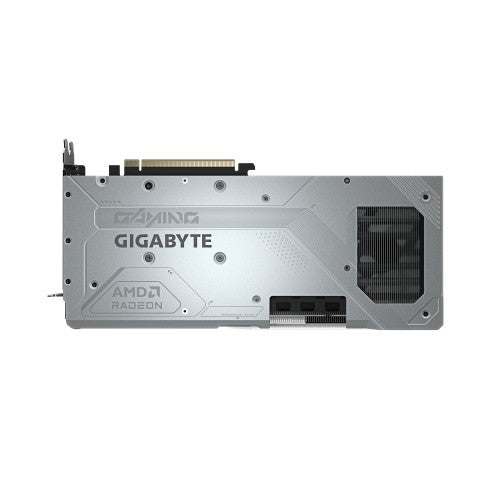

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

SUPERIOR CRAFTSMANSHIP
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

POWER THROUGH THE GAME
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	3060 MHz
Stream processors	4096
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 9070 XT
Memory
Discrete graphics card memory	16 GB
Data transfer rate	20 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR6
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	2
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12.0
OpenGL version	4.6
HDMI version	2.1b
Dual Link DVI	No
Performance
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
TV tuner integrated	No
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
Cooling technology	GIGABYTE WINDFORCE 3X
Power
Supplementary power connectors	3x 8-pin
Minimum system power supply	850 W
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
TV tuner integrated	No
System requirements
Minimum system power supply	850 W
Weight & dimensions
Height	132 mm
Depth	56 mm
Length	288 mm
Packaging data
Package type	Box
