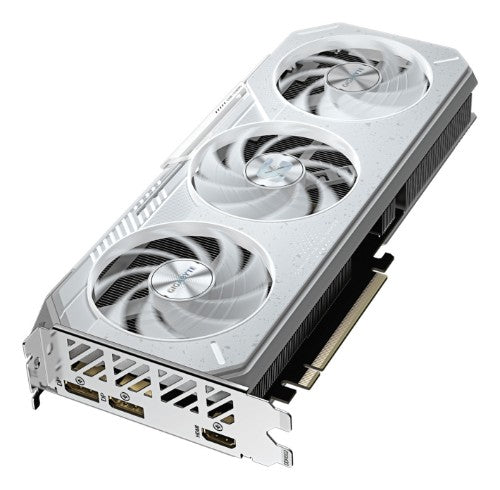

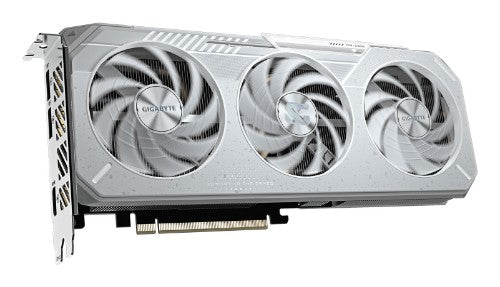

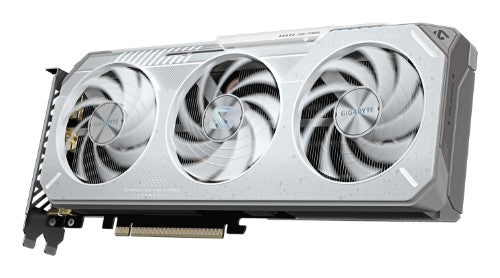

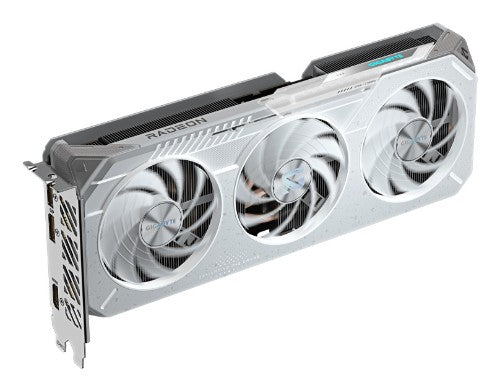

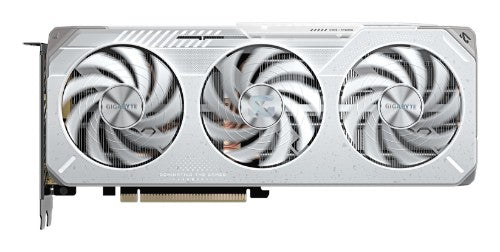

Gigabyte Radeon RX 9060 XT Gaming OC ICE | 16GB GDDR6 | PCI Express 5.0 | 3320MHz | 20000MHz

16 GB, GDDR6, 128-bit, 3320 MHz boost clock, PCI Express 5.0, 2x DisplayPort, 1x HDMI, 1x 8-pin, RGB

Key Features

• Powered by Radeon™ RX 9060 XT
• Integrated with 16GB GDDR6 128 bit memory interface
• WINDFORCE cooling system
• RGB Lighting
• Reinforced structure

Description

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

SCREEN COOLING

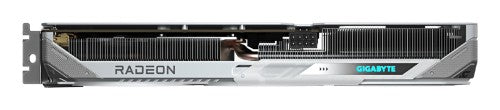

Extended heatsink allows air to pass through, providing better heat dissipation.

ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

EXCELLENCE IN ESSENTIAL
REINFORCED STRUCTURE

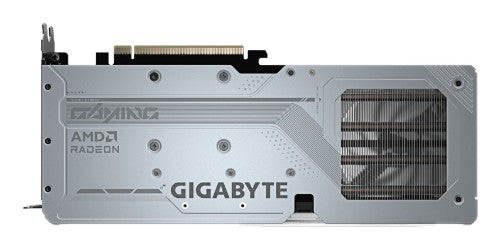

The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	3320 MHz
Stream processors	2048
Parallel processing technology support	Not supported
Maximum displays per videocard	3
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 9060 XT
Processor boost clock speed (Gaming mode)	2780 MHz
Memory
Discrete graphics card memory	16 GB
Data transfer rate	20 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6

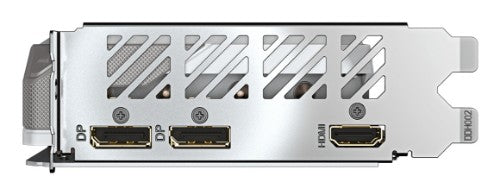

Ports & interfaces
HDMI version	2.1b
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Interface type	PCI Express 5.0
Video
DirectX version	12.0
OpenGL version	4.6
HDMI version	2.1b
Dual Link DVI	No
Performance
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
TV tuner integrated	No
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Silver
Bracket height	Full-Height (FH)
Cooling technology	GIGABYTE WINDFORCE 3X
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	450 W
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Silver
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Minimum system power supply	450 W
Weight & dimensions
Height	118 mm
Depth	40 mm
Length	281 mm

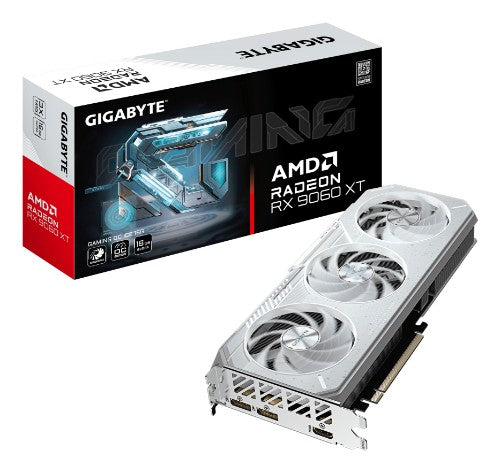

Packaging data
Package type	Box
Manual	Yes
Packaging content
Manual	Yes
