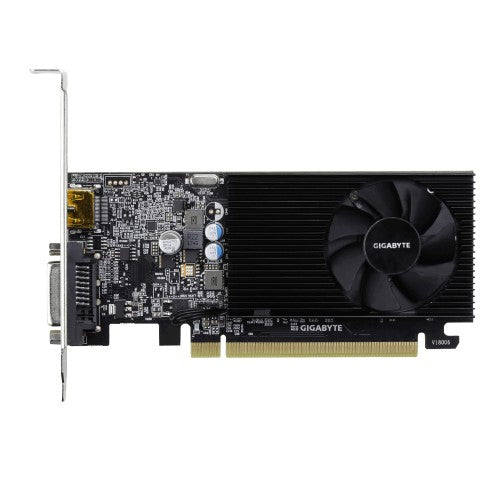

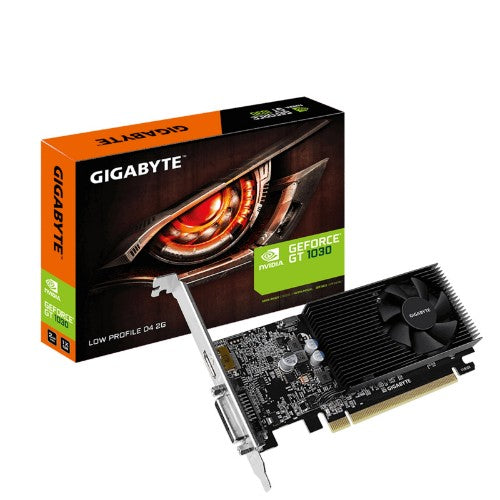

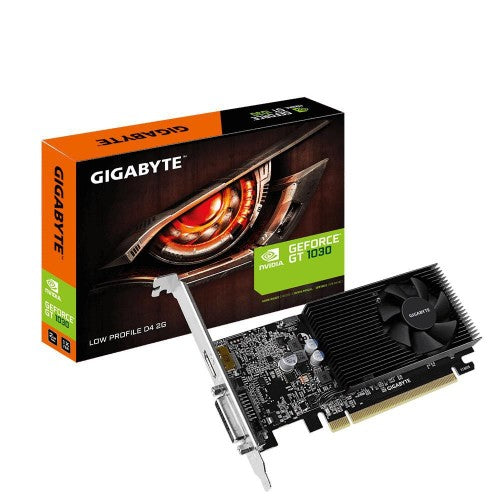

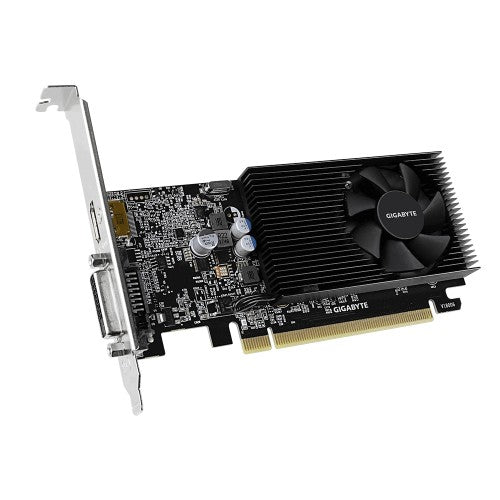

GIGABYTE GV-N1030D4-2GL graphics card NVIDIA GeForce GT 1030 2 GB GDDR4

NVIDIA GeForce GT 1030, PCI Express x16 3.0, 2GB GDDR4, 64 bits, 1 x HDMI, 1 x DVI-D

Key Features

• Powered by GeForce® GT 1030
• Integrated with 2GB DDR4 64bit memory
• Low profile design with 150 mm card length
• One-click overclocking via AORUS Graphics Engine
• Boost: 1417 MHz/ Base: 1177 MHz in OC Mode
• Boost: 1379 MHz/ Base: 1151 MHz in Gaming Mode

Description

LOW PROFILE DESIGN

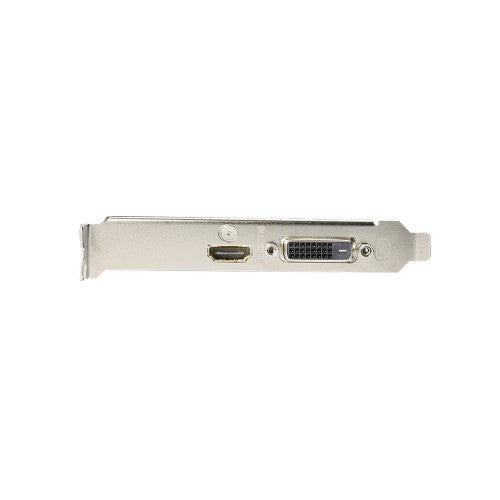

Low profile design with one slot and 150mm card length saves more spaces to fit slim or smaller system. Equipped with a DVI-D and a HDMI port, the card supports up to 4K high resolution.

ULTRA DURABLE COMPONENTS
Engineered with the high-quality chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

SMOOTH AND CRISP VISUAL
Equipped with a DVI-D and a HDMI port, the card can deliver beautiful and smooth 4K video playback.

Intuitive AORUS Graphics Engine Utility
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.

One-click Overclocking
With a simple click on AORUS Graphics Engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge

Specifications

Processor
FireStream	No
Graphics processor family	NVIDIA
Processor frequency	1151 MHz
Processor boost clock speed	1379 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	2
CUDA	Yes
Maximum resolution	4096 x 2160 pixels
Graphics processor	GeForce GT 1030
Processor frequency (OC mode)	1177 MHz
Processor boost clock speed (OC mode)	1417 MHz
Memory
Discrete graphics card memory	2 GB
Memory clock speed	2100 MHz
Memory bus	64 bit
Graphics card memory type	GDDR4
Ports & interfaces
HDMI version	2.0b
HDMI ports quantity	1
DVI-D ports quantity	1
Interface type	PCI Express x16 3.0
Video
DirectX version	12.0
Shader model version	5.1
OpenGL version	4.5
HDMI version	2.0b
HDCP	Yes
Full HD	Yes
Dual Link DVI	Yes
PhysX	Yes
Performance
DirectX version	12.0
Shader model version	5.1
OpenGL version	4.5
HDCP	Yes
Full HD	Yes
Dual Link DVI	Yes
TV tuner integrated	No
PhysX	Yes
Design
Number of fans	1 fan(s)
Cooling type	Active
Form factor	Half-Height/Half-Length (HH/HL)
Product colour	Black
Number of slots	1
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Power
Minimum system power supply	300 W
Weight & dimensions
Number of slots	1
Height	68.9 mm
Depth	14.7 mm
Length	149.9 mm
Technical details
Cooling type	Active
Form factor	Half-Height/Half-Length (HH/HL)
Product colour	Black
TV tuner integrated	No
Harmonized System (HS) code	84733020
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Minimum system power supply	300 W
Packaging data
Package type	Box
Drivers included	Yes
Manual	Yes
Packaging content
Drivers included	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	84733020
