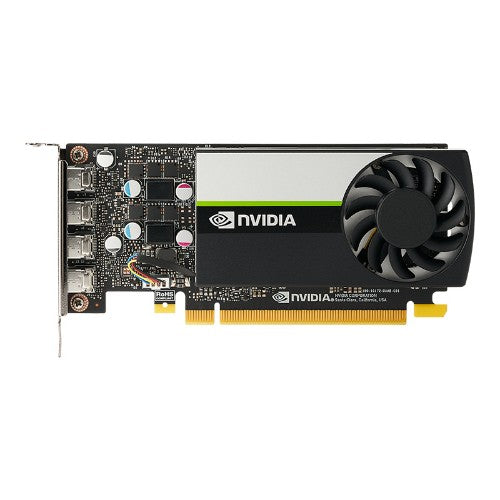

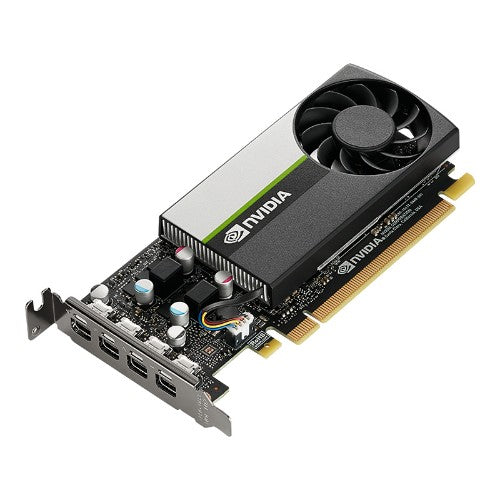

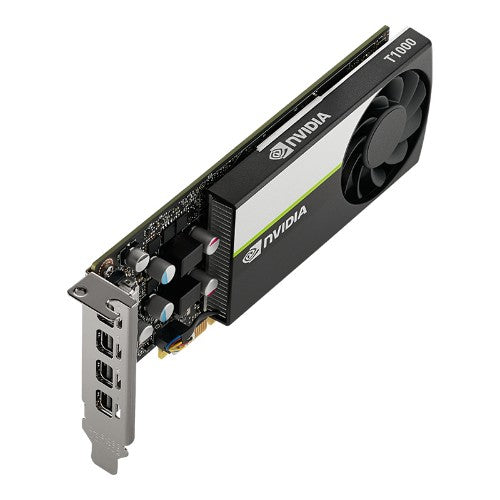

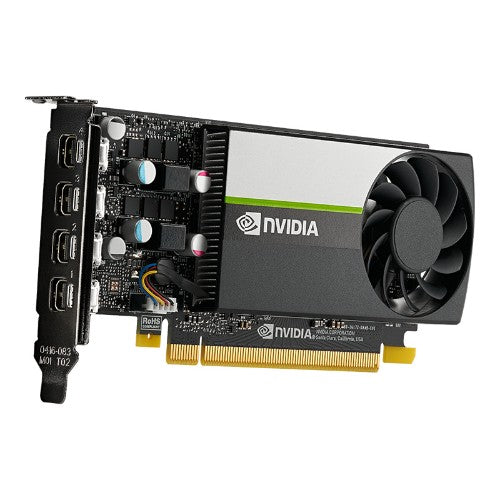

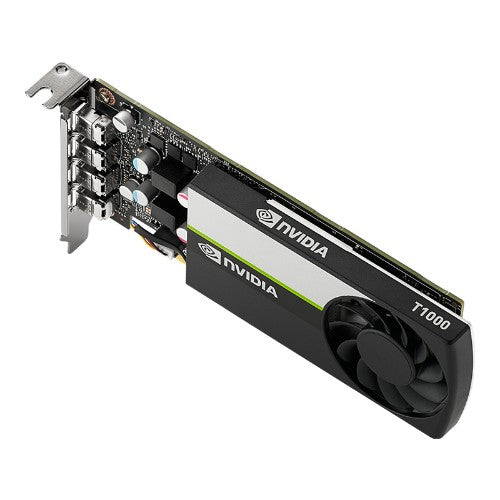

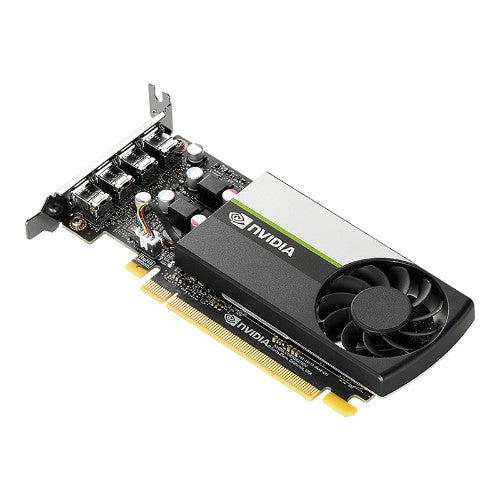

PNY VCNT1000-SB graphics card NVIDIA T1000 4 GB GDDR6

NVIDIA T1000, 896 CUDA, 4GB GDDR6, 4x mDP 1.4, PCIe 3.0 x16

Description

Full Performance in a Small Form Factor Solution
NVIDIA GPUs power the world’s most advanced desktop workstations, providing the visual computing power required by millions of professionals as part of their daily workflow. All phases of the professional workflow, from creating, editing, and viewing 2D and 3D models and video, to working with multiple applications across several displays, benefit from the power that only a discreet GPU solution can provide. NVIDIA entry level professional GPUs provide advanced features and performance far beyond what is available with integrated GPU solutions – all in a low-profile package, enabling deployment in a wide range of small form factor workstations. Step up to the power of an NVIDIA discreet professional GPU.

The NVIDIA Turing architecture provides significant performance improvements with NVIDIA T1000, resulting in more than 50% graphics performance, compared to the previous generation P1000. Ultra-fast GDDR6 graphics memory technology provides twice the memory bandwidth of the previous generation.

Specifications

Processor
Graphics processor family	NVIDIA
Maximum displays per videocard	4
CUDA cores	896
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	T1000
Memory
Discrete graphics card memory	4 GB
Memory bandwidth (max)	160 GB/s
Memory bus	128 bit
Graphics card memory type	GDDR6
Ports & interfaces

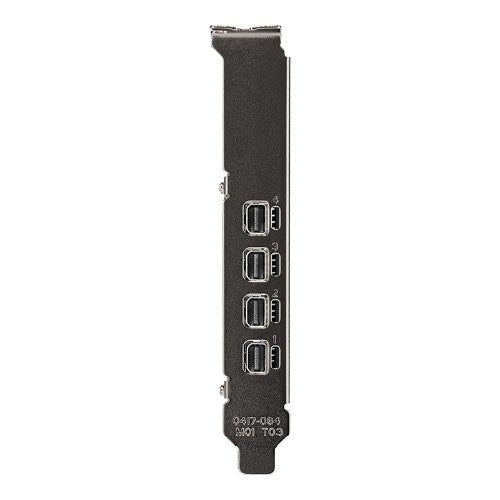

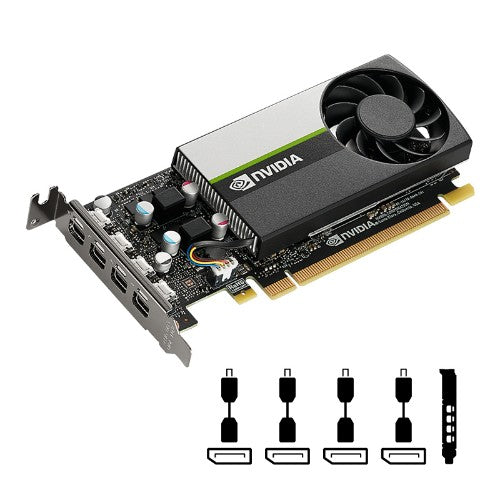

Mini DisplayPorts quantity	4
HDMI ports quantity	0
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	0
Interface type	PCI Express x16 3.0
Video
DirectX version	12.0
Shader model version	5.1
OpenGL version	4.5
HDCP	Yes
CUDA cores	896
Performance
DirectX version	12.0
Shader model version	5.1
OpenGL version	4.5
HDCP	Yes
Design
Number of fans	1 fan(s)
Cooling type	Active
Number of slots	1
Bracket height	Low-Profile (LP)
Software
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Power
Power consumption (max)	50 W
Weight & dimensions
Number of slots	1
Height	68.9 mm
Length	155.8 mm
Technical details
Cooling type	Active
Sustainability compliance	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE, REACH, RoHS
System requirements
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Sustainability
Sustainability compliance	Yes
Logistics data
Harmonized System (HS) code	84733020
