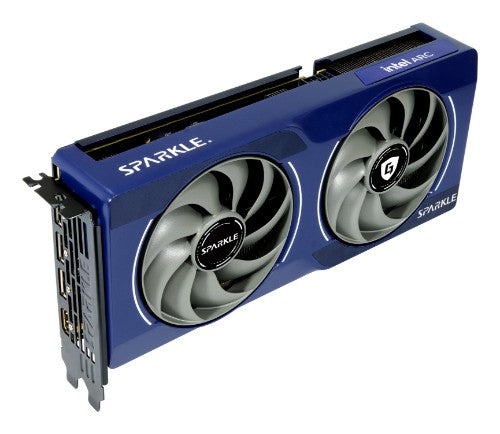

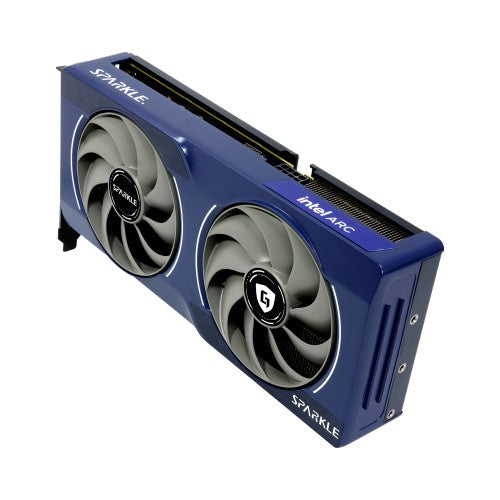

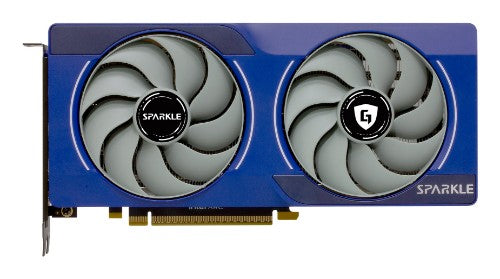

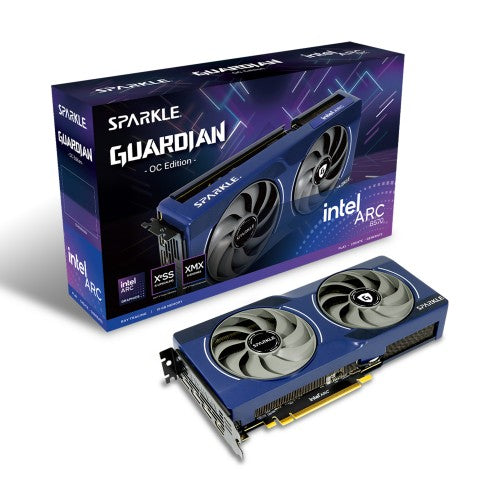

Sparkle Technology Intel Arc B570 GUARDIAN OC 10 GB GDDR6

10GB GDDR6, 2660 MHz, 160-bit, 144 XMX, 170 Watt, 380 GB/s, PCI Express 4.0 x8, 8K 120 Hz, 242 x 105 x 44mm, 796 g

Key Features

• TORN Cooling 2.0
• Dual-fan, 2.2-slot, metal backplate
• Comapct Design

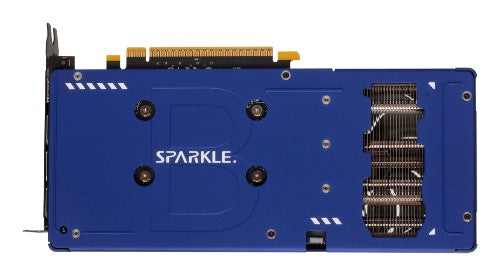

• Metal Backplate, Pre-Installed
• Ray Tracing
• Variable Rate Shading (VSR)
• DirectX 12 Ultimate
• Vulkan 1.3
• OpenGL 4.6
• OpenCL 3.0
• Adaptive Sync

Description

The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel
XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.

Specifications

Processor
Graphics processor family	Intel
Processor frequency	2500 MHz
Processor boost clock speed	2660 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Arc B570
Ray accelerators	18
Memory
Discrete graphics card memory	10 GB
Memory bandwidth (max)	380 GB/s
Memory bus	160 bit
Graphics card memory type	GDDR6
Ports & interfaces
HDMI version	2.1
HDMI ports quantity	1
DisplayPort version	2.1
DisplayPorts quantity	3
Interface type	PCI Express x8 4.0
Video
OpenCL version	3.0
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1
Dual Link DVI	No
Performance
OpenCL version	3.0
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
TV tuner integrated	No
Intel® Xe Matrix Extensions (Intel® XMX) Engines	144
Xe-cores	18
NPU performance up to	203 TOPs
Design
Number of fans	2 fan(s)
Cooling type	Active
Product colour	Blue
Number of slots	2.2
Software
Windows operating systems supported	Windows 10, Windows 11
Power
Supplementary power connectors	1x 8-pin
Power consumption (typical)	150 W
Minimum system power supply	600 W
Power consumption (max)	170 W
Power supply location	Top
Weight & dimensions
Number of slots	2.2
Weight	796 g
Height	105 mm
Depth	44 mm
Length	242 mm
Technical details
Cooling type	Active
Product colour	Blue
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10, Windows 11
Minimum system requirements	PCI-Express compliant MB with one x16 PCIe slot
Minimum system power supply	600 W
Minimum RAM	8000 MB
Minimum processor	10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
Packaging data
Package type	Box
