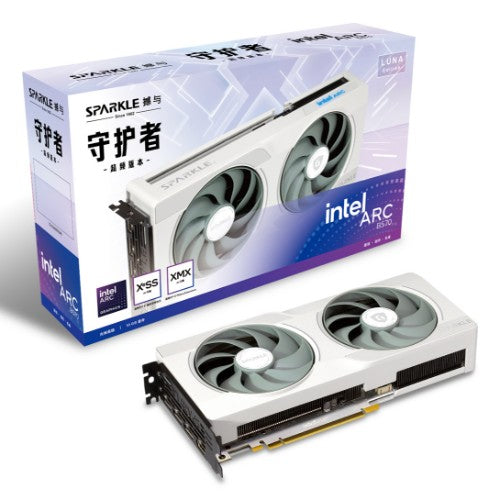

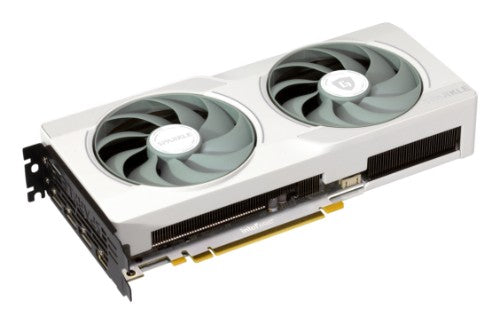

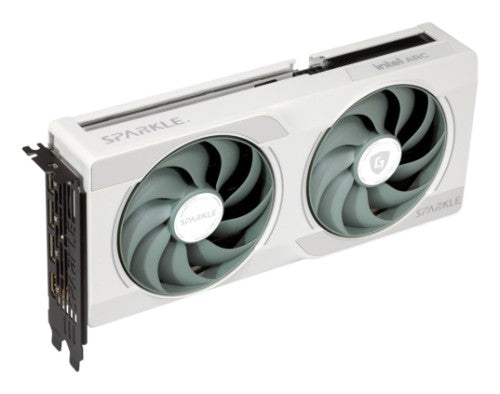

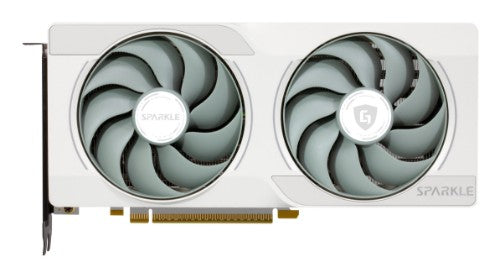

Sparkle Technology Arc B570 Guardian Luna OC 10GB Intel GDDR6

Sparkle Technology Arc B570 Guardian Luna OC 10GB, Arc B570, 10 GB, GDDR6, 160 bit, 7680 x 4320 pixels, PCI Express x8 4.0

Description

Sparkle Technology Arc B570 Guardian Luna OC 10GB. Graphics processor family: Intel, Graphics processor: Arc B570, Processor frequency: 2660 MHz. Discrete graphics card memory: 10 GB, Graphics card memory type: GDDR6, Memory bus: 160 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s), Illumination colour: Blue

Specifications

Processor
Graphics processor family	Intel
Processor frequency	2660 MHz
Maximum resolution	7680 x 4320 pixels
Graphics processor	Arc B570
Memory
Discrete graphics card memory	10 GB
Memory bandwidth (max)	380 GB/s
Memory bus	160 bit
Graphics card memory type	GDDR6

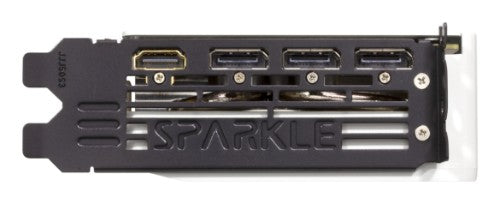

Ports & interfaces
HDMI version	2.1
HDMI ports quantity	1
DisplayPort version	2.1
DisplayPorts quantity	3
Interface type	PCI Express x8 4.0
Video
OpenCL version	3.0
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1
Dual Link DVI	No
Performance
OpenCL version	3.0
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
TV tuner integrated	No
Intel® Xe Matrix Extensions (Intel® XMX) Engines	144
Xe-cores	18
Design
Number of fans	2 fan(s)
Illumination colour	Blue
Illumination	Yes
Cooling type	Active
Product colour	White
Number of slots	2.2
Software
Windows operating systems supported	Windows 10, Windows 11
Power
Supplementary power connectors	1x 8-pin
Power consumption (typical)	170 W
Minimum system power supply	600 W
Weight & dimensions
Number of slots	2.2
Weight	796 g
Height	44 mm
Depth	105 mm
Length	245 mm
Technical details
Cooling type	Active
Product colour	White
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10, Windows 11
Minimum system power supply	600 W
Packaging data
Package type	Box
