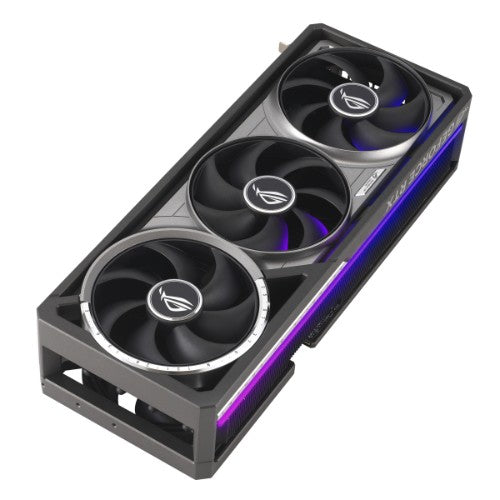

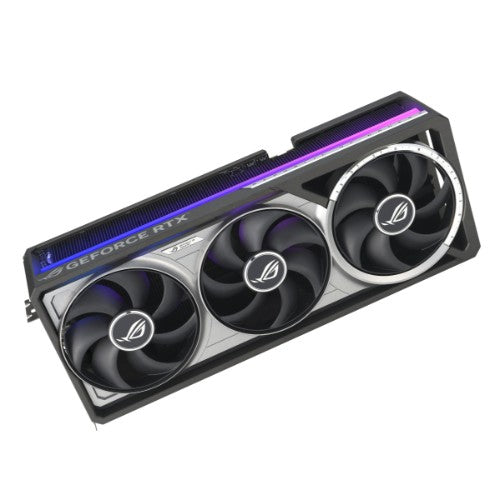

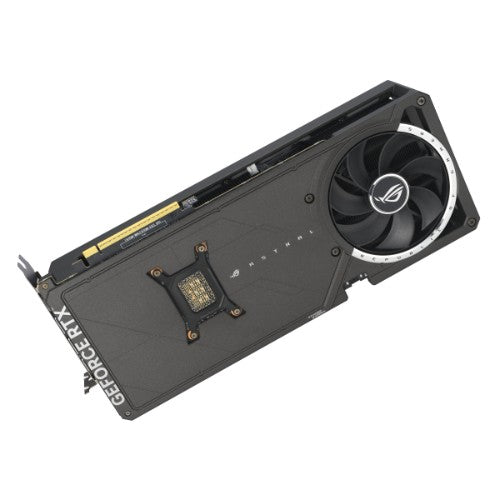

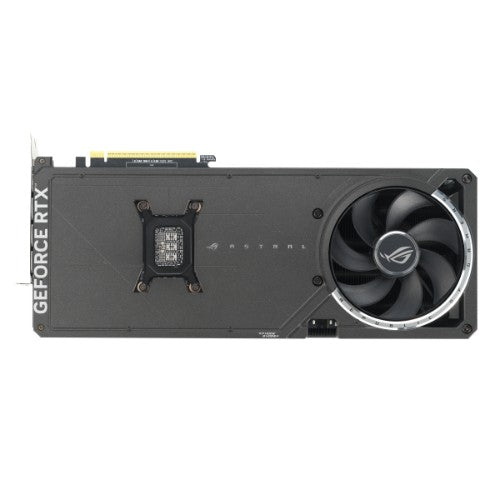

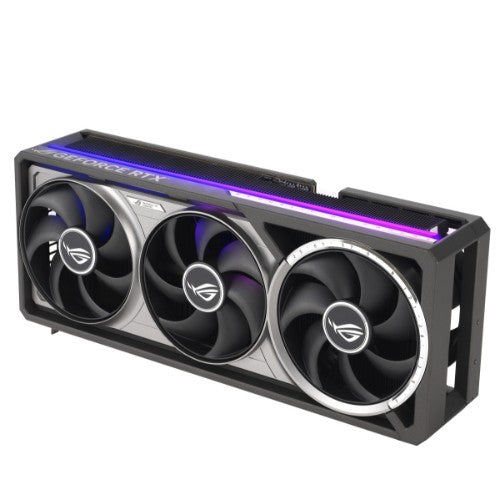

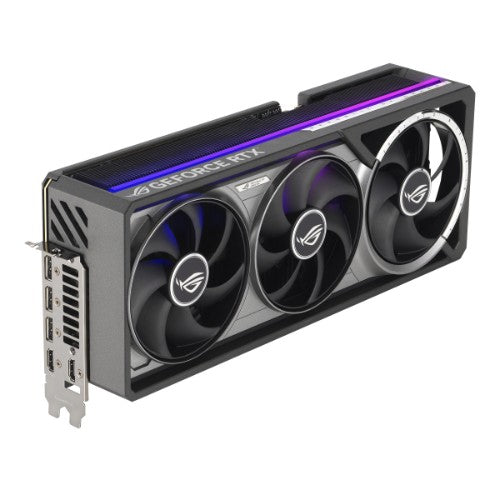

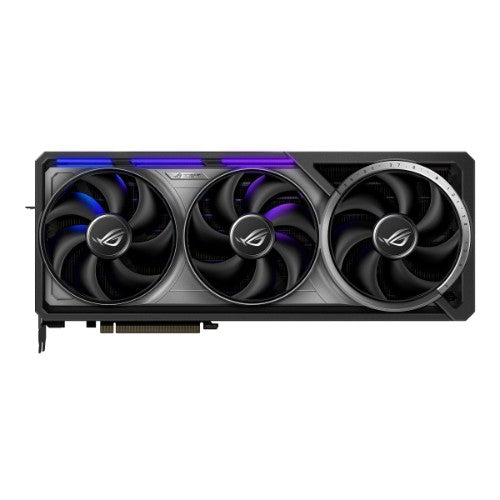

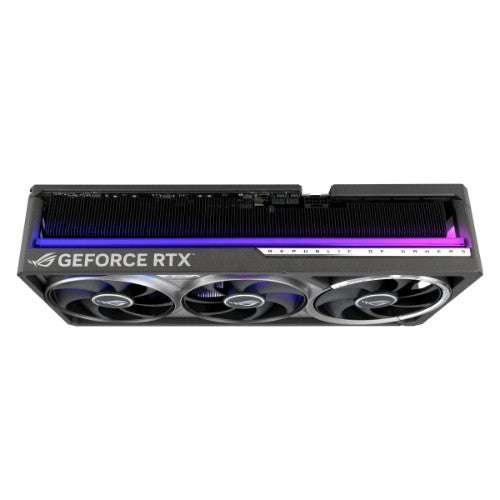

ASUS ROG Astral - -RTX5080-O16G-GAMING NVIDIA GeForce RTX 5080 16 GB GDDR7

NVIDIA GeForce RTX 5080 16GB GDDR7, PCI Express 5.0, OpenGL 4.6, 256-bit, HDMI, DisplayPort, 850W

Description

The Final Frontier
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2760 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	10752
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5080
Memory
Discrete graphics card memory	16 GB
Data transfer rate	30 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	2
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	10752
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
Design
Number of fans	4 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Multicolour
Number of slots	3.8
Software
Windows operating systems supported	Yes
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	850 W
Weight & dimensions
Number of slots	3.8
Weight	2.86 kg
Height	149.3 mm
Depth	76 mm
Length	357.6 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Multicolour
System requirements
Windows operating systems supported	Yes
Minimum system power supply	850 W
Packaging data
Package type	Box
Package width	420 mm
Package height	126 mm
Package depth	226 mm
Package weight	4.3 kg
