ASUS ROG Astral - -LC-RTX5090-O32G-GAMING NVIDIA GeForce RTX 5090 32 GB GDDR7

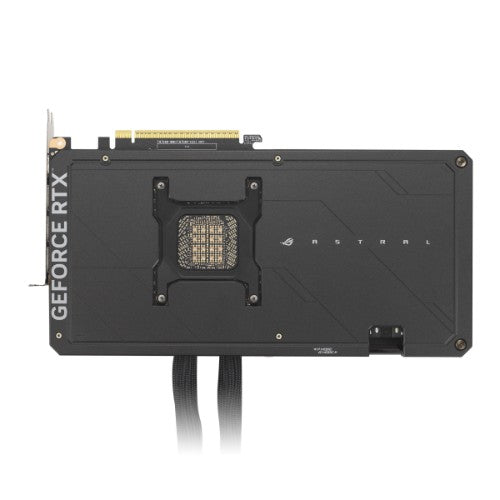

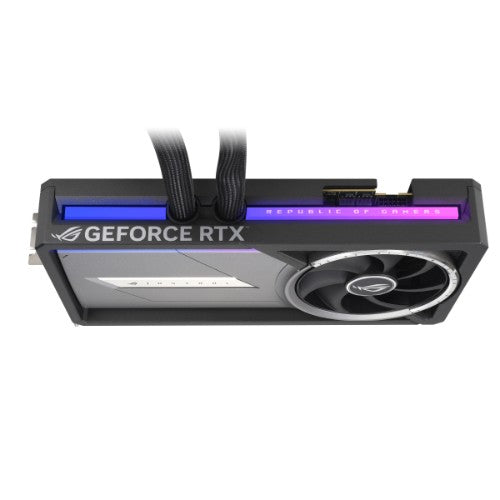

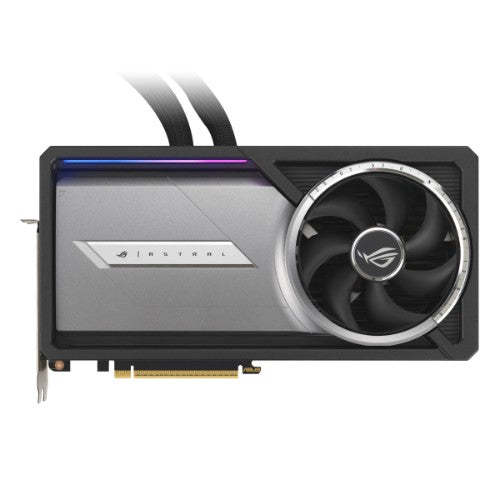

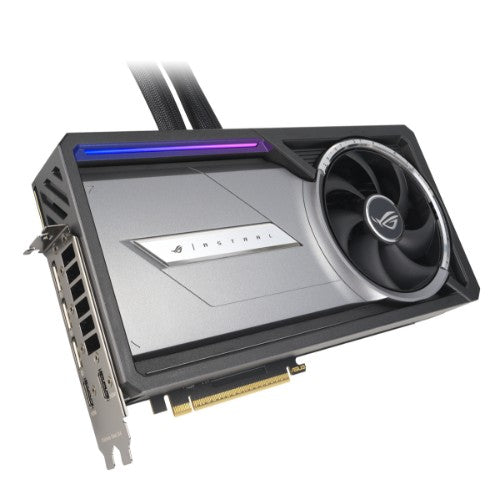

ROG Astral LC GeForce RTX 5090 32GB GDDR7 OC Edition

Description

ROG Astral LC GeForce RTX™ 5090
Fluid Force
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. The ROG Astral LC GeForce RTX 5090 delivers pinnacle cooling performance via a premium 360mm AIO cooler, full-coverage copper plate and integrated fan. Meanwhile, powerful 80-amp MOSFETs deliver high overclocking potential while maintaining quiet operation.

Cooling Expertise

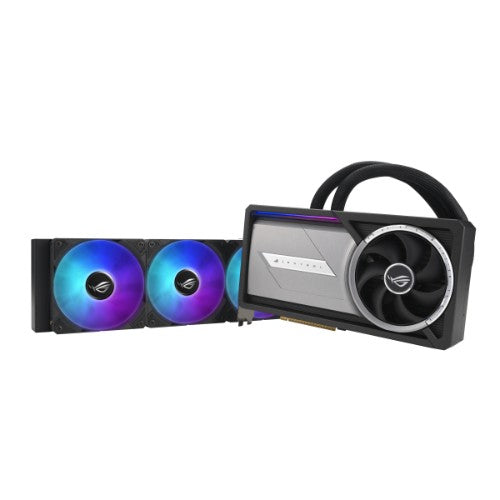

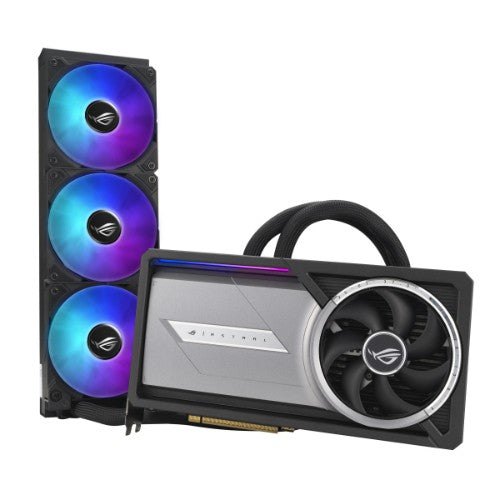

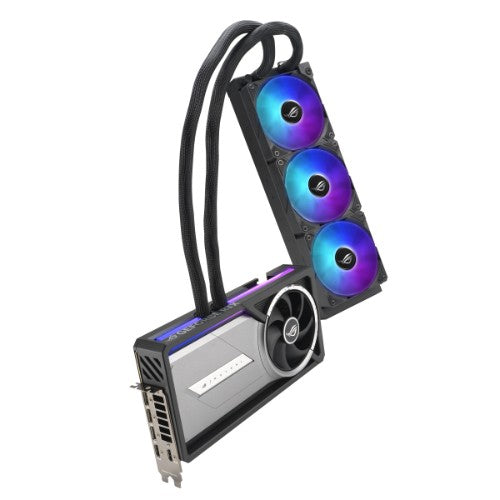

360mm Radiator
An extra-thick 360x38mm radiator combines forces with a trio of high-end fans to ensure excellent heat dissipation.

Full-Coverage Cold Plate
The full-coverage cold plate covers all the heat-generating components on the PCB, empowering the radiator to efficiently cool the graphics card, resulting in up to 30% better performance versus pure air cooling.

On-Board Cooling
Heat produced by power-delivery components is dispelled by an axial-tech fan and a low-profile heatsink under the shroud. This combination exhausts hot air quietly and efficiently.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Premium Power Delivery
Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.

ASUS GPU Guard & Bracket
To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2580 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	21760
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5090
Memory
Discrete graphics card memory	32 GB
Data transfer rate	28 Gbit/s
Memory bus	512 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	2
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	21760
Performance
NVIDIA G-SYNC	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Design
Number of fans	4 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Product colour	Black, Grey
Number of slots	2.5
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	1000 W
Weight & dimensions
Number of slots	2.5
Height	153.7 mm
Depth	48 mm
Radiator width	40 cm
Radiator depth	6.5 cm
Radiator height	12 cm
Length	288.5 mm
Technical details
Cooling type	Active
Product colour	Black, Grey
TV tuner integrated	No
System requirements
Minimum system power supply	1000 W
Packaging data
Package type	Box
Package width	460 mm
Package height	236 mm
Package depth	242 mm
Manual	Yes
Packaging content
Manual	Yes
