ASUS ROG -STRIX-RTX5070TI-O16G-GAMING NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7

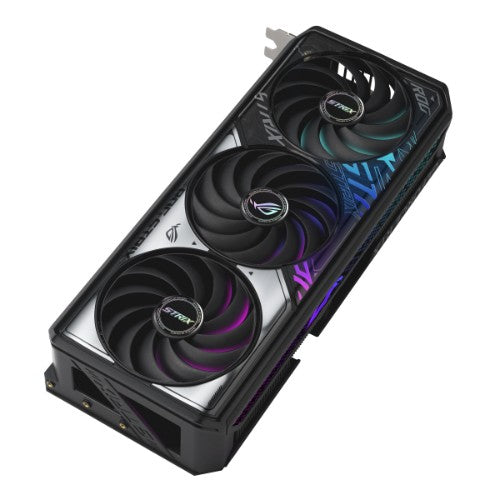

ROG Strix GeForce RTX 5070 Ti 16GB GDDR7 OC Edition

Key Features

• AI Performance: 1492 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• OC mode: 2625 MHz (OC mode)/ 2602 MHz (Default mode)
• 3.2-slot design: massive fin array optimized for airflow from the three Axial-tech fans
• Axial-tech fans have been scaled up to propel 31% more air through the card to reach higher performance
• 0dB technology lets you enjoy light gaming in relative silence
• MaxContact design with vapor chamber ensures efficient heat transfer, providing a premium performance
• Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
• Premium power delivery with digital power control and 15K caps ensure high performance
• Protective PCB Coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris
• Aura Sync features Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization
• GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring

Description

ROG Strix GeForce RTX™ 5070 Ti
FIND YOUR EDGE
The premium performance ROG Strix GeForce RTX 5070 Ti, featuring advanced cooling system with axial-tech fan, vapor chamber, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.

Cooling Expertise
Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.

Vapor Chamber
A vapor chamber and heatsink soaks up heat from the graphics card, helping to ensure premium performance in a variety of scenarios.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.

MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2602 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070 Ti
Processor frequency (OC mode)	2625 MHz
Memory
Discrete graphics card memory	16 GB
Data transfer rate	28 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	2
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	8960
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
NPU performance up to	1406 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Multicolour
Number of slots	3.2
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	850 W
Weight & dimensions
Number of slots	3.2
Weight	1.67 kg
Height	147.3 mm
Depth	64 mm
Length	332 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Multicolour
TV tuner integrated	No
System requirements
Minimum system power supply	850 W
Packaging data
Package type	Box
Package width	420 mm
Package height	126 mm
Package depth	226 mm
Package weight	2.64 kg
Manual	Yes
Packaging content
Manual	Yes
