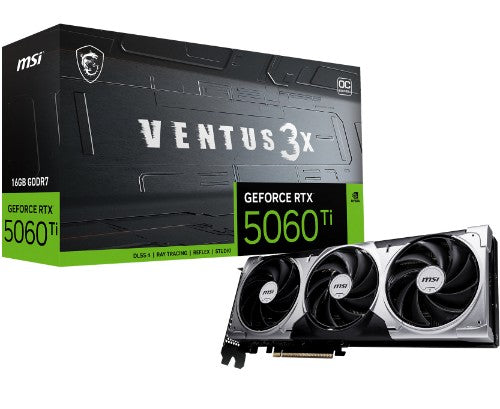

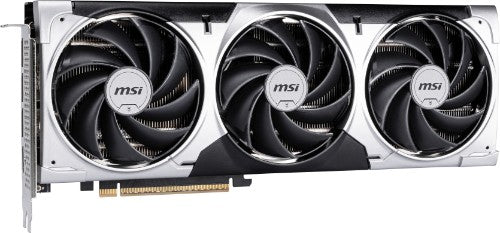

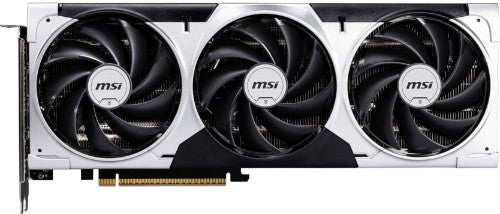

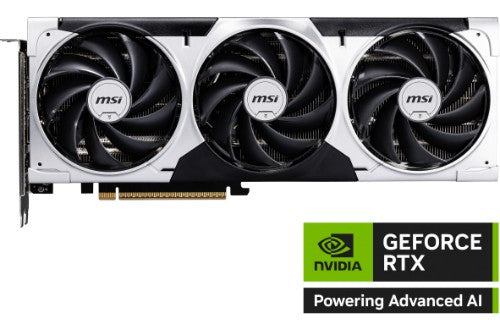

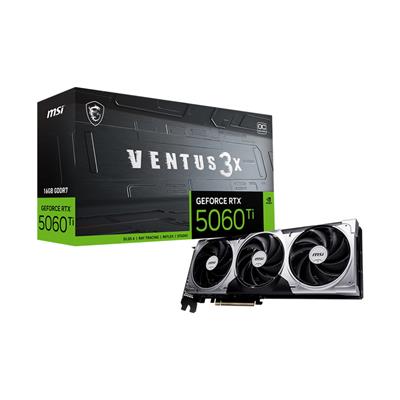

MSI VENTUS GeForce RTX 5060 TI 16G 3X OC NVIDIA 16 GB GDDR7

NVIDIA GeForce RTX 5060 Ti, 16GB GDDR7, 128 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1b), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 180W

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks:
• Extreme Performance: 2617 MHz (MSI Center)
• Boost: 2602 MHz
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
• Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance
• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world

Description

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.

HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

MSI CENTER
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.

AFTERBURNER
PRECISION CONTROLS,
UNLIMITED POWER
MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.

MSI APP PLAYER
SEAMLESS GAMING EXPERIENCE
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2602 MHz
Maximum displays per videocard	4
CUDA cores	4608
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5060 Ti
Memory
Discrete graphics card memory	16 GB
Data transfer rate	28 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
Dual Link DVI	No
CUDA cores	4608
Performance
NVIDIA G-SYNC	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
TV tuner integrated	No
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black, Grey
Power
Supplementary power connectors	1x 16-pin
Power consumption (typical)	180 W
Minimum system power supply	600 W
Technical details
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black, Grey
TV tuner integrated	No
System requirements
Minimum system power supply	600 W
Weight & dimensions
Weight	860 g
Height	121 mm
Depth	44 mm
Length	306 mm
Packaging data
Package type	Box
Package weight	1.23 kg
Cables included	Power
Packaging content
Cables included	Power
Logistics data
Products per shipping (inner) case	1 pc(s)
