Asrock RX9060 XT Steel Legend 16GB OC | PCIe5 | 16GB DDR6 | HDMI | 2 DP | 3320MHz Clock | RGB Lighting | Overclocked | White

AMD Radeon RX 9060 XT, 16GB GDDR6, 128 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 2 x DP (2.1a), DirectX 12 Ultimate, OpenGL 4.6

Description

Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED Switch & ARGB Header

LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.

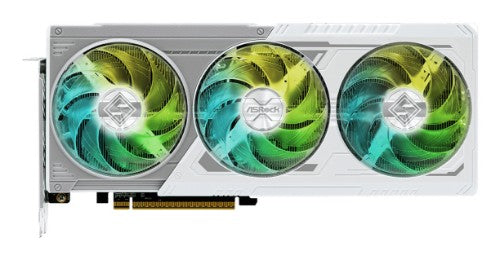

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

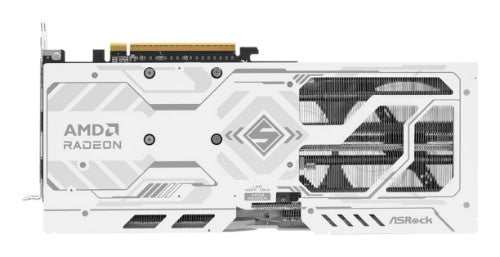

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	3320 MHz
Stream processors	2048
Maximum displays per videocard	3
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 9060 XT
Memory
Discrete graphics card memory	16 GB
Data transfer rate	20 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6
Ports & interfaces
HDMI version	2.1b
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Interface type	PCI Express x16 5.0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
Performance
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
Design
Number of fans	3 fan(s)
Illumination colour	Amber, Blue, Green, Red
Illumination	Yes
Cooling type	Active
Product colour	White
Number of slots	2.55
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	550 W
Weight & dimensions
Number of slots	2.55
Weight	967 g
Height	51 mm
Depth	131 mm
Length	298 mm
Technical details
Cooling type	Active
Product colour	White
TV tuner integrated	No
System requirements
Minimum system power supply	550 W
