ASUS DUAL-RX9060XT-8G AMD Radeon RX 9060 XT 8 GB GDDR6

Dual Radeon RX9060XT 8G GDDR6

Description

Dual Radeon™ RX 9060 XT
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling

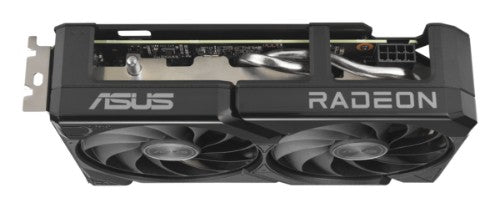

2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

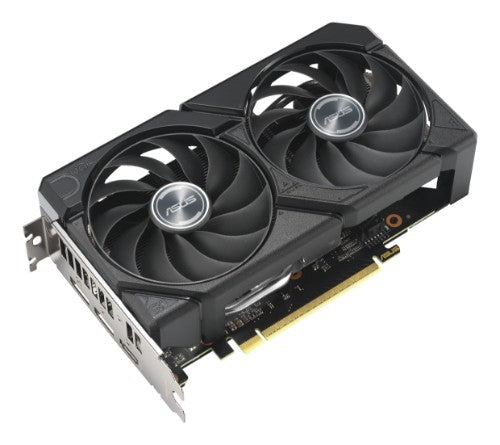

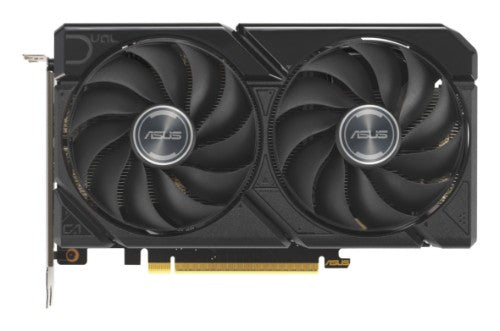

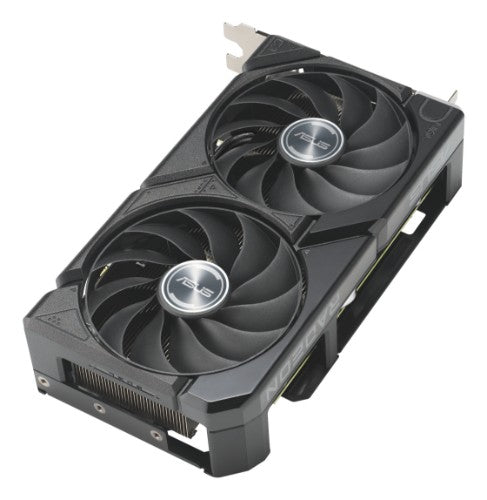

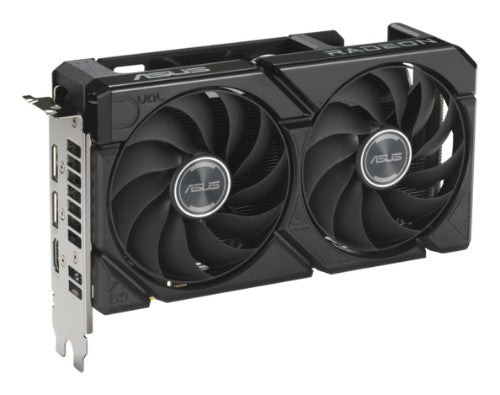

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

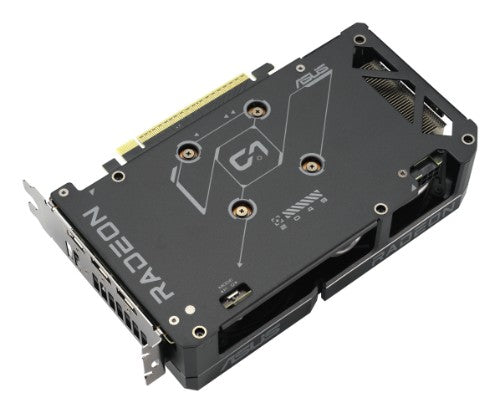

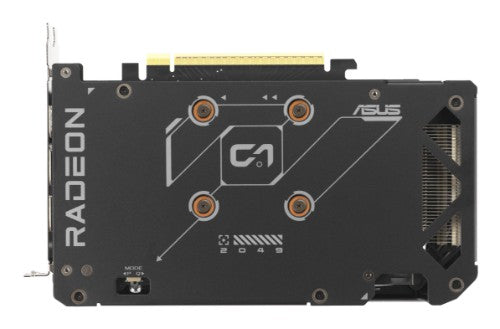

Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	3130 MHz
Stream processors	2048
Parallel processing technology support	Not supported
Maximum displays per videocard	3
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 9060 XT
Memory
Discrete graphics card memory	8 GB
Data transfer rate	20 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6

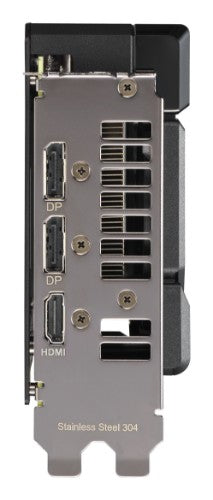

Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
Performance
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Design
Number of fans	2 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black
Number of slots	2.5
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	550 W
Weight & dimensions
Number of slots	2.5
Weight	601 g
Height	120 mm
Depth	49 mm
Length	202 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black
TV tuner integrated	No
System requirements
Minimum system power supply	550 W
Packaging data
Package type	Box
Package width	364 mm
Package height	66 mm
Package depth	219 mm
Package weight	1.06 kg
Manual	Yes
Packaging content
Manual	Yes
