ASUS Prime -RX9060XT-O8G AMD Radeon RX 9060 XT 8 GB GDDR6

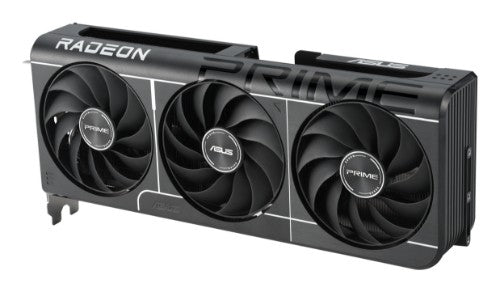

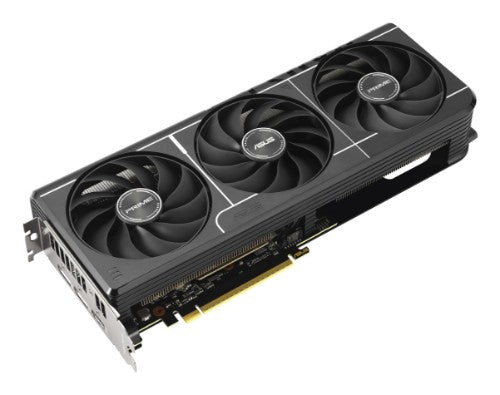

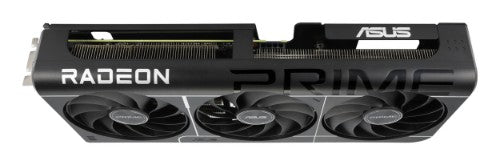

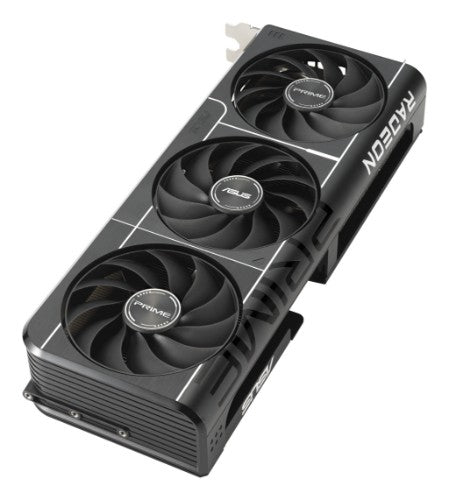

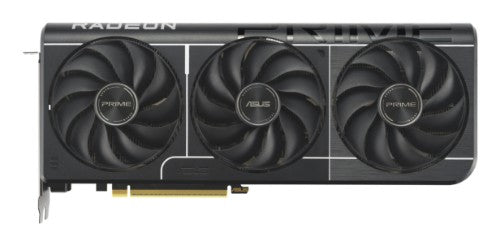

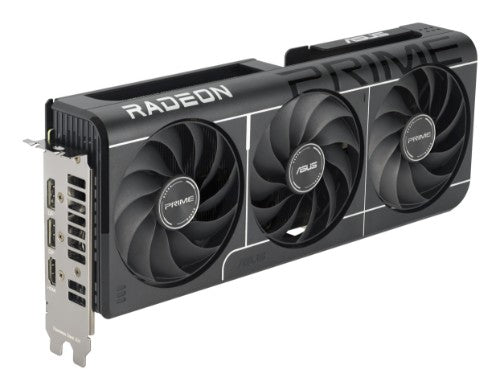

Prime Radeon RX 9060 XT OC Edition 8GB GDDR6

Description

Primed for Power
Experience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.

Cooling
2.5-slot Design
The Prime Radeon™ RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology
All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

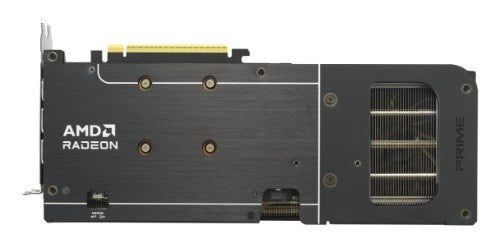

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	3310 MHz
Stream processors	2048
Parallel processing technology support	Not supported
Maximum displays per videocard	3
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 9060 XT
Memory
Discrete graphics card memory	8 GB
Data transfer rate	20 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6

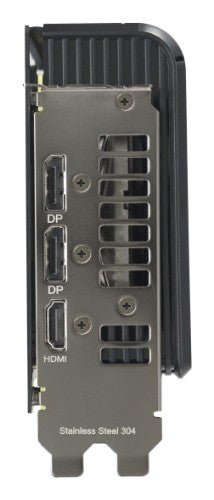

Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
Performance
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
Number of slots	2.5
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	550 W
Weight & dimensions
Number of slots	2.5
Weight	871 g
Height	126 mm
Depth	50 mm
Length	304 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black
TV tuner integrated	No
System requirements
Minimum system power supply	550 W
Packaging data
Package type	Box
Package width	405 mm
Package height	88.5 mm
Package depth	233 mm
Package weight	1.49 kg
Manual	Yes
Packaging content
Manual	Yes
