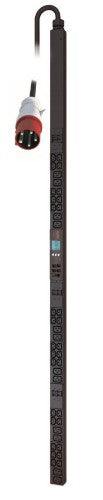

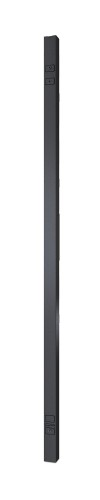

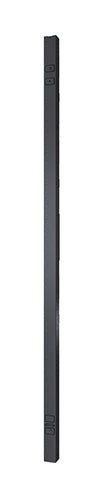

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

Design
PDU types	Metered
Mounting	Vertical
Product colour	Black
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Rack capacity	0U
Ports & interfaces
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler

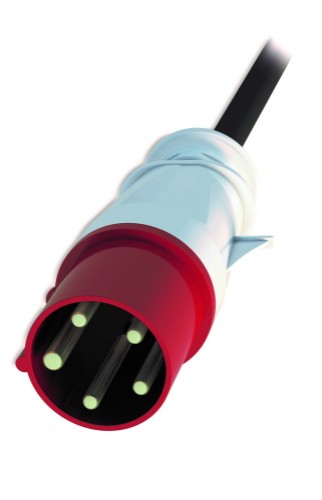

Power plug	IEC309
Output connections	30 x IEC 320 C13 12 x IEC 320 C19
Features
Cable length	1.83 m

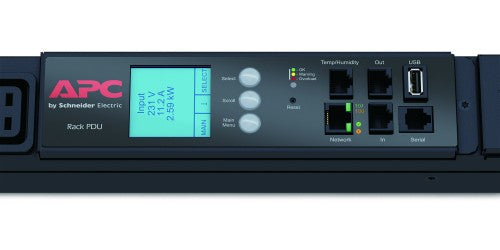

LED indicators	Yes
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	1.83 m
LED indicators	Yes
Power
Maximum power	22000 W
Nominal input voltage	400 V
Nominal output voltage	230 V
Power protection features	Overload
Maximum current	32 A
Maximum input current per phase	32 A
Load capacity	22080 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	8.72 kg
Width	56 mm
Depth	51 mm
Height	1829 mm
Package width	170 mm
Package depth	112 mm
Package height	2050 mm
Package weight	11.6 kg
Packaging data
Package width	170 mm
Package depth	112 mm
Package height	2050 mm
Package weight	11.6 kg
Technical details
Total carbon footprint (kg of CO2e)	57837.86
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	57837.86
