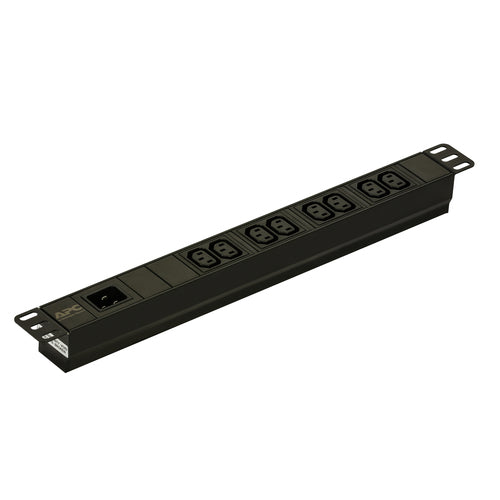

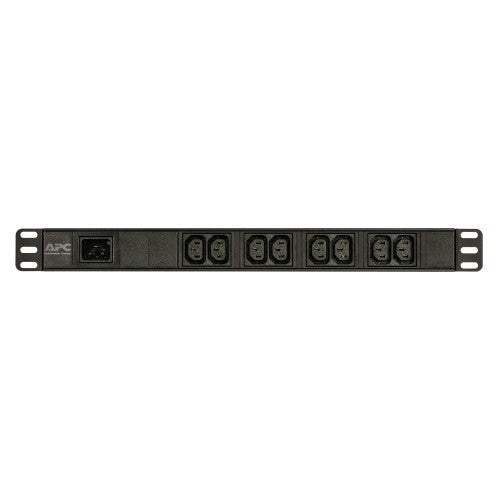

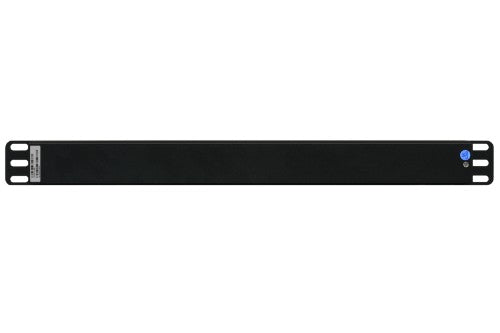

APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

Description

APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

Specifications

Design
On/off switch	No
Type	Single-phase
PDU types	Basic
Mounting	Horizontal
Product colour	Black
Certification	CE, TUV
Rack capacity	1U
Housing material	Aluminium
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
Features
Cable length	2.5 m
Certification	CE, TUV
Daisy chain	No
Ergonomics
Cable length	2.5 m
Power
Maximum power	3680 W
Nominal input voltage	200/208/230 V
Nominal output voltage	208/230 V
Maximum current	16 A
Maximum input current per phase	16 A
Load capacity	3680 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	CE, TUV
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	580 g
Width	482 mm
Depth	44 mm
Height	44 mm
Package width	560 mm
Package depth	80 mm
Package height	150 mm
Package weight	1.18 kg
Packaging content
Manual	Yes
Packaging data
Package width	560 mm
Package depth	80 mm
Package height	150 mm
Package weight	1.18 kg
Technical details
Compliance certificates	RoHS
