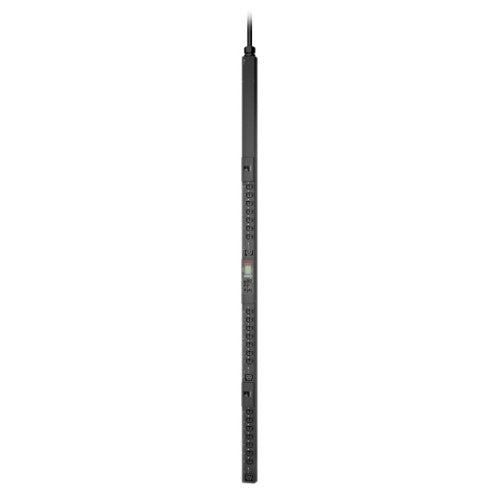

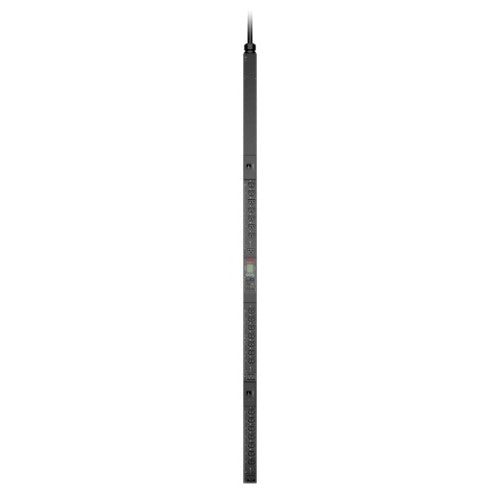

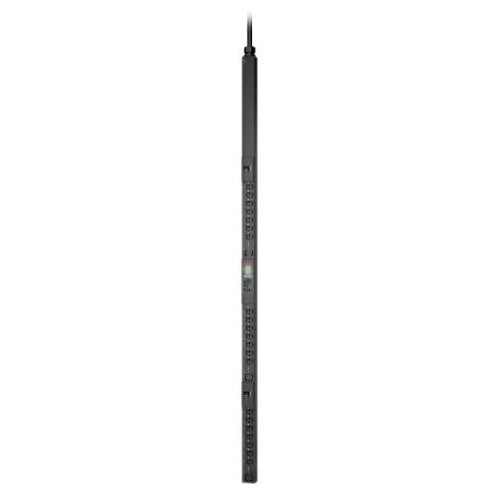

APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets

Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets

Description

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty

Specifications

Design
Type	Single-phase
PDU types	Switched
Mounting	Vertical
Product colour	Black
Certification	CUL , FCC 15 A, ICES-003, PSE
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler

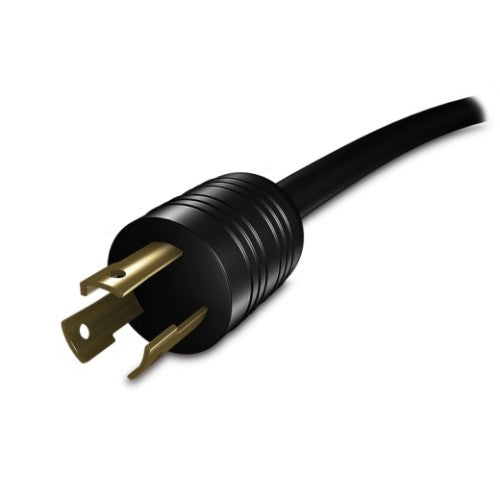

Power plug	NEMA L6-30P
Ethernet LAN (RJ-45) ports	1
Features
Certification	CUL , FCC 15 A, ICES-003, PSE
Power
Nominal input voltage	90 - 264 V
Nominal output voltage	200 - 208 V
Maximum current	30 A
Load capacity	4992 VA
Weight & dimensions
Weight	8.5 kg
Width	55 mm
Depth	46 mm
Height	1829 mm
Package width	165 mm
Package depth	124 mm
Package height	2040 mm
Package weight	10 kg
Packaging data
Package width	165 mm
Package depth	124 mm
Package height	2040 mm
Package weight	10 kg
Packaging content
Manual	Yes
Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
