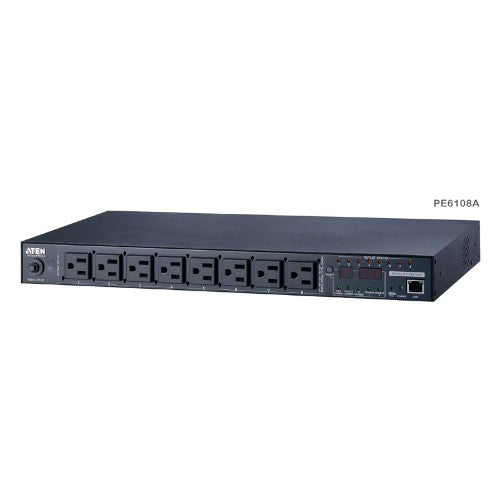

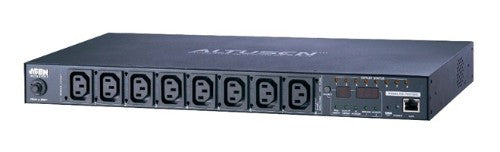

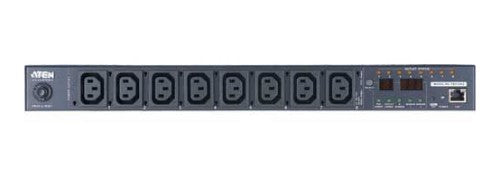

ATEN 1U 10A 8 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software

8-Port Intelligent 1U ECO Power Distribution Unit (PDU) with Outlet Switching 8 x C13

Description

Features

Power Distribution
- Space saving 1U rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 digit 7-segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web pages on their browsers
- Safe shutdown support
- Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker

Remote Access
- Remote power control via TCP/IP and a built in 10/100 Ethernet port
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- eco PDU Power Management software – eco Sensors
- Supports SNMP Manager V3

Operation
- Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Firefox, Chrome, Safari)
- RTC support to keep the timer running during times of no power.
- Supports up to 8 user and 1 administrator accounts

Management
- Power status measurement at the PDU level
- LED indicators for current and IP address at the PDU device level
- Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
- Current and voltage threshold setting
- Naming support for outlets
- User outlet access assignment on an outlet-by-outlet basis.
- Event logging and syslog support
- Upgradeable firmware
- Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian

Security
- Two-level password security
- Strong security features include password protection and advanced encryption technologies – 128 bit SSL
- Remote authentication support: RADIUS

eco Sensors Energy Management Software
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time power outlet management
- Remote real-time environment sensor monitoring
- Plotting/Monitoring of all PE devices
- Exceed threshold alert through SMTP and Syslog
- Power Analysis Report

Package Contents

- 1x PE6108 Power Distribution Unit
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Software CD
- 1x User Instructions

Specifications

Design
PDU types	Managed, Metered, Monitored, Switched
Mounting	Horizontal
Display	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	LAN, Link, Power, Status
Daisy chain	No
Management features
Monitoring	Current, Humidity, Power, Temperature, Voltage
Ergonomics
LED indicators	LAN, Link, Power, Status
Display	Yes
Power
Nominal input voltage	100-240 V
Nominal output voltage	100-240 V
Maximum current	10 A
Maximum input current per phase	10 A
AC input frequency	50 - 60 Hz
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Weight	2.82 kg
Width	219.3 mm
Depth	432.4 mm
Height	44 mm
Technical details
Compliance certificates	RoHS
