ATEN 1U AV 16A 8 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software

8-Outlet eco PDU

Key Features

• Connections

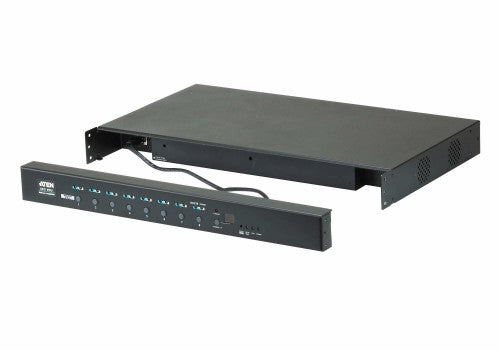

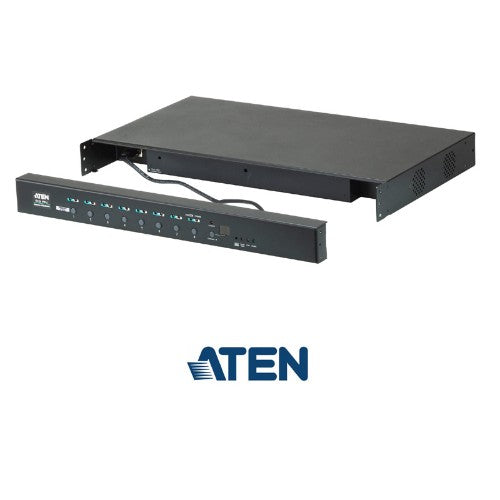

• Detachable front panel fits 19” racks with different depths
• Built-in 10/100 Mbit Ethernet Interface
• Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, and V3, Telnet
• 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
• Browser access via IE, Firefox, Chrome, Safari, and more
• Easy integration with ATEN Control System and Control4 libraries
• Supports RS-232 port and power outlet control (on/off) by outlet group
• Metering
• 1% Metering Accuracy – supports bank-level power metering
• Environment Monitoring – supports external temperature or temperature and humidity sensors for rack temperature and humidity monitoring
• Outlet Switch Control
• Remote and local power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
• Multiple Power Control Methods – Wake on LAN, System After AC Back, Kill the Power
• Power-On Sequencing – users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order to enhance equipment safety
• Proactive Overload Protection (POP) – automatically powers off the last outlet that caused the current overload to protect high-end pro-A/V equipment and servers
• eco DC Energy Management Software*
• Automatic discovery of all ATEN PDUs within the same intranet
• Remote real-time power measurement and monitoring of PDUs
• Real-time environment monitoring via sensors
• Plotting and monitoring of all ATEN PDU devices
• Exceed threshold alerts through real-time monitoring, SMTP, and System logs
• Power analysis reports
• * eco DC is designed to work with NRGence™ eco PDUs and is bundled with all PE Series models.

Description

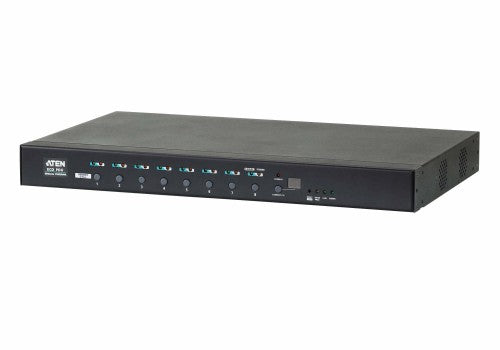

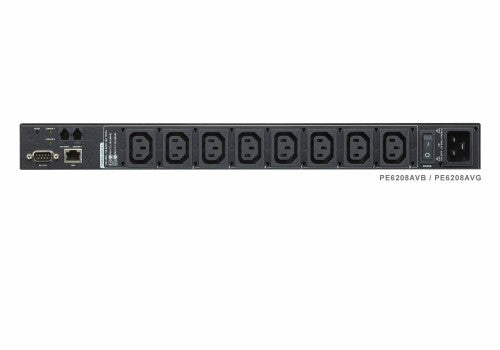

Ideal for Pro-A/V applications, the ATEN NRGence™ PE6208AV eco PDUs are intelligent, 1U rack PDUs that contain 8 AC outlets available in an IEC socket configuration. The unique design with detachable front panel is convenient and mounts with different Pro-A/V equipment in 19” racks with different depths. In addition to remotely controlling individual outlets over the LAN, the front panel pushbuttons offer an extra option to control the outlets locally, allowing the flexibility to easily shutdown Pro-A/V equipment on the spot or from a remote location – for reduced power consumption. The outlets feature a sequential power-ON function that ensures Pro-A/V systems are powered on safely. Furthermore, compatibility with the ATEN Control System and Control4 libraries allow the PE6208AV to integrate with any Pro-A/V equipment for full control of all devices without complex programming.

The PE6208AV are optimal energy solutions for data centers as well. With the combination of ATEN eco PDUs and eco DC Energy Management software, a data center will be equipped with real-time monitoring, measurement, and analysis of energy consumption – with reports of power usage and PUE to meet the ISO 50001 requirements. These indices reflect the data center’s energy usage and offer energy saving suggestions for optimizing energy use and reducing costs.

Specifications

Design
PDU types	Metered
Mounting	Horizontal
Product colour	Black
Certification	FCC, J55032
Rack capacity	1U
Ports & interfaces

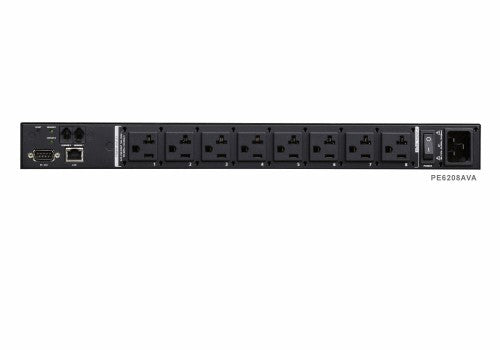

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–20R
Power plug	NEMA L5-20P
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
Cable length	3 m
LED indicators	Yes
Certification	FCC, J55032
Security algorithms	128-bit SSL
Password protection	Yes
Management features
Supported network protocols	TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping
Management protocols	SNMP V1, V2, V3, Telnet
Ergonomics
Cable length	3 m
LED indicators	Yes
Power
Nominal input voltage	100 - 120 V
Power protection features	Overload
Maximum current	20 A
AC input frequency	50 / 60 Hz
Certificates
Certification	FCC, J55032
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Weight	4.67 kg
Width	432.4 mm
Depth	363.9 mm
Height	44 mm
Packaging content
Cables included	AC, LAN (RJ-45)
Security
Security algorithms	128-bit SSL
Password protection	Yes
