APC

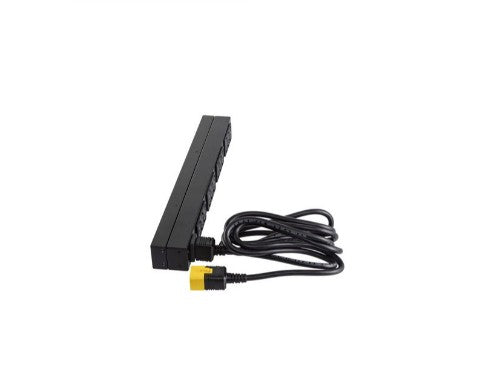

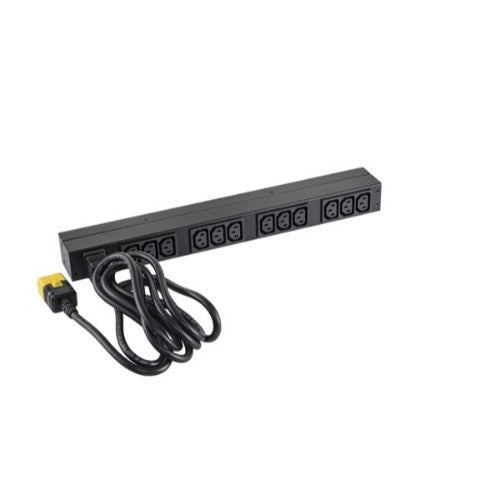

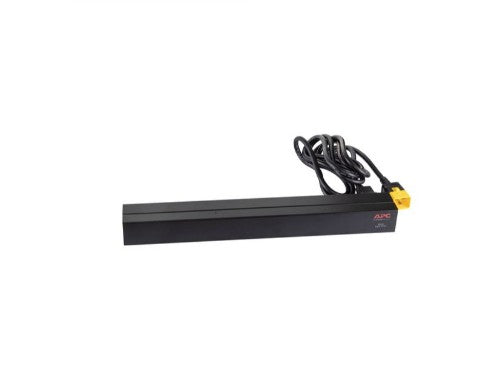

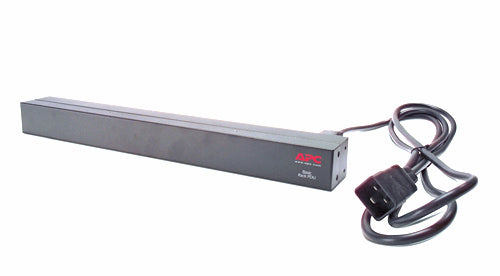

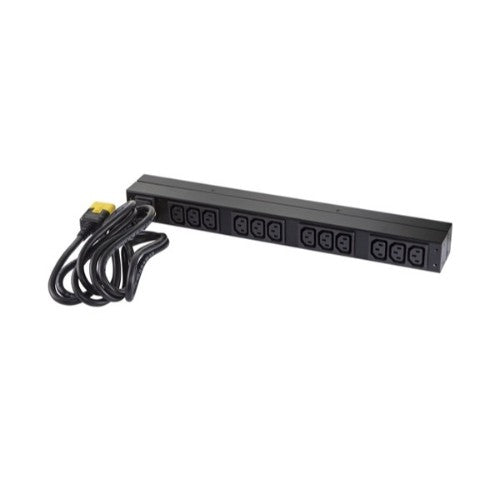

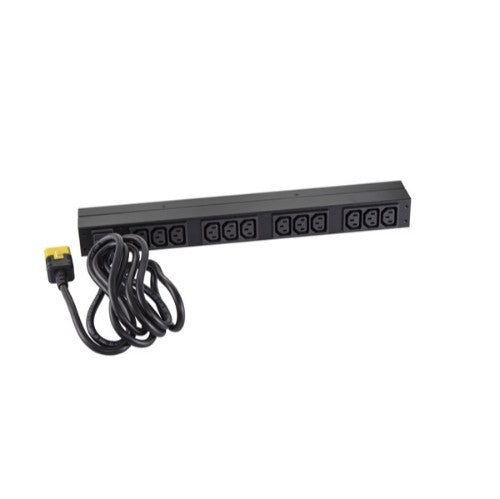

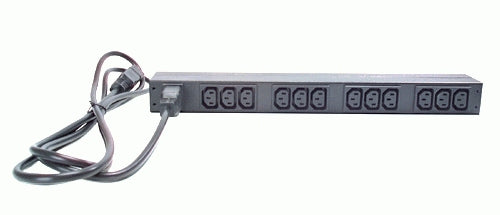

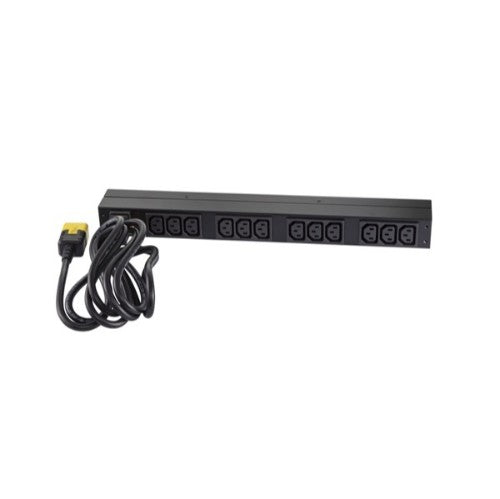

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

SKU AP9565
£268.47
£197.64
£268.47
£197.64
Excluding taxes
NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

Description

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Specifications

Design
Type Single-phase
PDU types Basic
Mounting Horizontal/Vertical
Product colour Black
Certification cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Rack capacity 0U/1U
Ports & interfaces
AC outlets quantity 12 AC outlet(s)
AC outlet types C13 coupler
Power plug C20 coupler
Output connections (12) IEC 320 C13
Input connection type IEC-320 C20
Features
Cable length 2.5 m
Certification cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Ergonomics
Cable length 2.5 m
Power
Maximum power 3680 W
Maximum input current per phase 16 A
Load capacity 3680 VA
Certificates
Certification cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Weight & dimensions
Weight 2.05 kg
Width 447 mm
Depth 57.2 mm
Height 44.5 mm
Package width 464 mm
Package depth 229 mm
Package height 70 mm
Package weight 3.64 kg
Packaging data
Package width 464 mm
Package depth 229 mm
Package height 70 mm
Package weight 3.64 kg
Technical details
Total carbon footprint (kg of CO2e) 55.19
Logistics data
Total carbon footprint (kg of CO2e) 55.19
