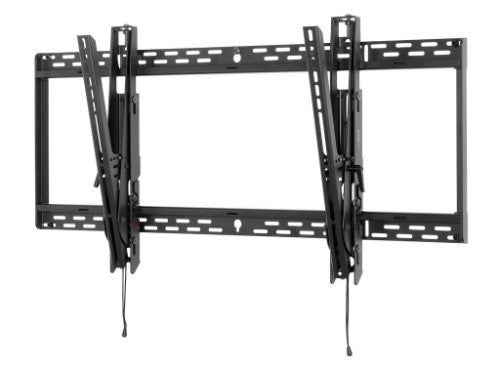

Peerless ST670P TV mount 2.29 m (90") Black

Smartmount Universal Tilt Wall Mount For 46" To 90" Displays

Key Features

• Universal mount fits displays with mounting patterns up to 895 x 450mm (35.25" W x 17.72" H)
• Adjustable up to 15° of forward tilt and -5° of backward tilt for the optimal viewing angle
• Optional IncreLokTM feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°
• Easy-GripTM ratcheting handle locks the display into place
• Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
• Lateral display adjustment up to 11.25" (286mm)
• 1" of post-installation vertical adjustment provides flexibility in the installation
• Includes fastener pack with all necessary mounting and display attachment hardware
• For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST670
• For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase ST670P

Description

Enhance the installation experience with the ST67. Its wall plate holds displays weighing up to 25lb while featuring junction box access ports and horizontal display adjustment up to 12" for ideal display positioning. Its exclusive pre-tensioned display adaptor design offers display tilt viewing adjustment enabling putting the final touches on the installation increasingly fast and simple.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	116.8 cm (46")
Maximum screen size	2.29 m (90")
Maximum weight capacity	113 kg
Ergonomics
Tilt angle range	-5 - 15°
Distance to the wall (min)	7.6 cm
Distance to the wall (max)	16.8 cm
Tilt adjustment	Yes
Technical details
Distance to the wall (min)	7.6 cm
Distance to the wall (max)	16.8 cm
Compatibility	LCD/Plasma
Product colour	Black
Mounting type	Wall
Design
Certification	UL, RoHS
Compatibility	LCD/Plasma
Product colour	Black
Certificates
Certification	UL, RoHS
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	1001 mm
Height	495 mm
Weight	7.3 kg
Depth (min)	7.6 cm
Depth (max)	16.8 cm
Packaging data
Package width	985 mm
Package depth	385 mm
Package height	110 mm
Package weight	8.68 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Screen size compatibility	1066.8 - 1803.4 mm (42 - 71")
