Peerless SA771PU TV mount/stand 2.29 m (90") Black

Smartmount Articulating Wall Arm For 46" To 90" Displays

Key Features

• Universal mount accommodates 200 x 100 to 800 x 400mm VESA mounting patterns
• Retracts to hold display just 3.10" (79mm)from the wall
• ±90°degrees of pivot allows for perfect display positioning
• Easy leveling ±5° after display installation
• Quick and easy, Hook-and-Hang™ one person installation
• Landscape or Portrait mounting options increases display versatility
• Dual arms for a more robust installation
• Stylish wall plate covers create a finished look and are easy to install and remove
• Open wall plate design increases electrical and cable management options
• Removable cover for wall plate knock out included
• Includes all necessary wall and display attachment hardware
• Design is UL listed and tested to four times stated load capacity

Description

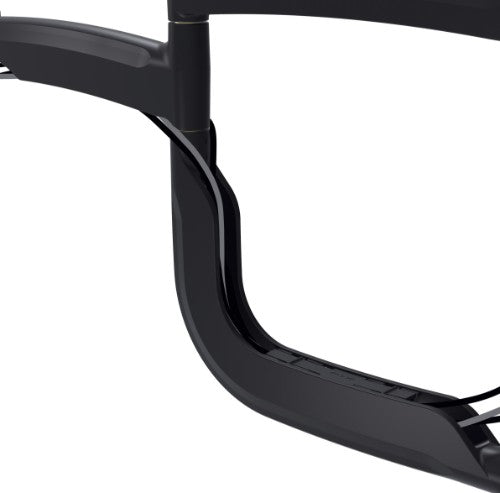

The SmartMount® Articulating Wall Arm series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA771PU, extend the display up to 26.6" (676mm) or fully-retract it to just 3.1" (79mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	116.8 cm (46")
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	800 x 400 mm
Maximum screen size	2.29 m (90")
Maximum weight capacity	68 kg
Ergonomics
Tilt angle range	-75 - 75°
Swivel angle	90°
Pivot angle	-90 - 90°
Distance to the wall (min)	7.9 cm
Distance to the wall (max)	67.6 cm
Tilt adjustment	Yes
Technical details
Pivot angle	-90 - 90°
Number of displays supported	1
Distance to the wall (min)	7.9 cm
Distance to the wall (max)	67.6 cm
Product colour	Black
Mounting type	Wall
Design
Certification	UL, RoHS
Product colour	Black
Certificates
Certification	UL, RoHS
Packaging content
Manual	Yes
Weight & dimensions
Width	819 mm
Height	505 mm
Weight	14.8 kg
Depth (min)	7.9 cm
Depth (max)	67.6 cm
Packaging data
Package width	1035 mm
Package depth	121 mm
Package height	603 mm
Package weight	19.1 kg
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Colour	No
Screen size compatibility	1066.8 - 1803.4 mm (42 - 71")
