Peerless ST640P TV mount 127 cm (50") Black

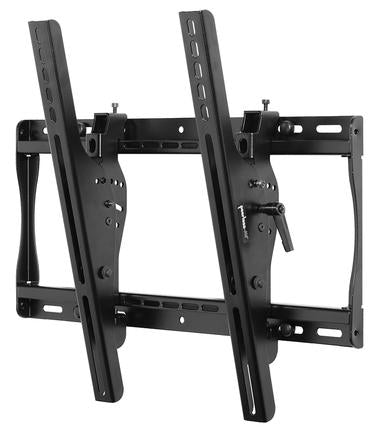

SmartMount Universal Tilt Wall Mount for 32" to 50" Displays

Key Features

• Universal mount fits displays with mounting patterns up to 458 x 405mm (18.02" W x 15.95" H) and accommodates up to 400 x 400mm VESA® patterns

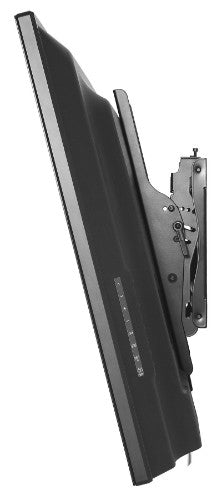

• Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
• Easy-GripTM ratcheting handle locks tilt angle into place
• Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
• Horizontal display adjustment up to 6.00" (152mm) for centering display on wall
• Landscape to portrait mounting options increases installation versatility. Please check display dimensions against the wall plate when used in portrait mode*
• Includes all necessary wall and display attachment hardware
• Integrated security options available
• For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase ST640P
• Design is UL listed and tested to four times stated load capacity
• For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST640

Description

The SmartMount® Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology. Security screws provided in the ST640 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Number of displays supported	1
Maximum VESA mount	400 x 400 mm
Maximum screen size	127 cm (50")
Maximum weight capacity	68 kg
Ergonomics
Tilt angle range	-5 - 15°
Distance to the wall (min)	6.7 cm
Distance to the wall (max)	14.5 cm
Technical details
Number of displays supported	1
Distance to the wall (min)	6.7 cm
Distance to the wall (max)	14.5 cm
Product colour	Black
Mounting type	Wall
Design
Certification	UL, RoHS
Product colour	Black
Certificates
Certification	UL, RoHS
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	562 mm
Height	429 mm
Weight	2.75 kg
Depth (min)	6.7 cm
Depth (max)	13.7 cm
Packaging data
Package width	551 mm
Package depth	272 mm
Package height	75 mm
Package weight	3.55 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
