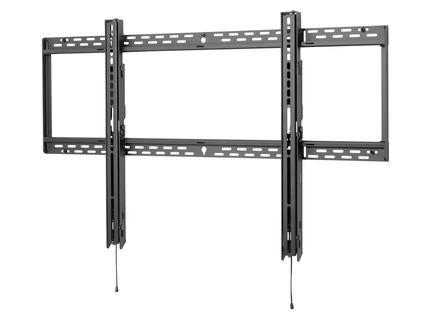

SmartMount Universal Flat Wall Mount for 60" to 98" displays
Key Features
- Universal mount fits displays with mounting patterns up to 1100 x 650mm (43.29" W x 25.59" H)

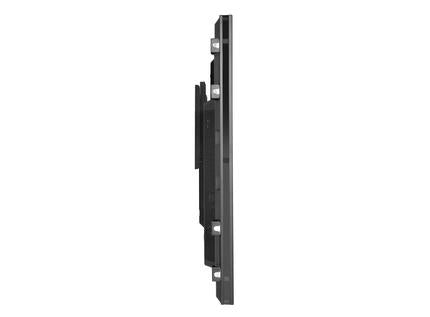

- Low-profile design holds display only 1.73" (44mm) from the wall
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
- Laterial display adjustment up to 19.25" (489mm)
- 1" of post-installation vertical adjustment provides flexibility in the installation
- Includes fastener pack with all necessary mounting and display attachment hardware (including M10)
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase SF680
- For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase SF680P
Description
Peerless-AV’s SmartMountTM Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680’s robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning to display size of the mounted display.Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 172.7 cm (68") |
| Maximum screen size | 2.49 m (98") |
| Maximum weight capacity | 158 kg |
| Technical details | |
| Product colour | Black |
| Mounting type | Wall |
| Quantity per pack | 1 pc(s) |
| Design | |
| Certification | UL/TUV, RoHS |
| Product colour | Black |
| Certificates | |
| Certification | UL/TUV, RoHS |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 1162 mm |
| Height | 698 mm |
| Weight | 7.8 kg |
| Depth (max) | 4.4 cm |
| Packaging data | |
| Package width | 1185 mm |
| Package depth | 390 mm |
| Package height | 58 mm |
| Package weight | 9.21 kg |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Mounting type | Wall |
-
