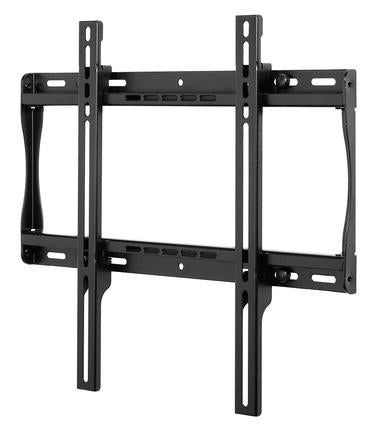

Peerless SF640P TV mount 127 cm (50") Black

Smartmount Universal Flat Wall Mount For 32" To 50" Displays

Key Features

• Universal mount fits displays with mounting patterns up to 450 x 405mm (17.72" W x15.95" H) and accommodates up to 400 x400mm VESA mounting patterns

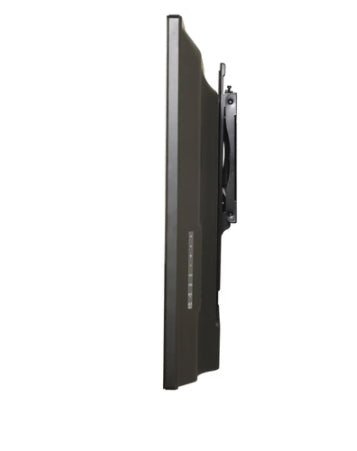

• Low-profile design holds display only1.20" (30mm)
• Up to 0.25" (6mm) of vertical adjustmenton each universal display adaptor bracketfor post-installation leveling and heightadjustment fine-tuning
• Horizontal display adjustment up to 6.00"(152mm) for centering display on wall
• Landscape to Portrait mounting options increases installation versatility. Pleasecheck display dimensions against the wallplate when used in Portrait mode*
• Includes all necessary wall and display attachment hardware
• Integrated security options available
• Design is UL listed and tested to four times stated load capacity
• For mounts requiring theft resistant hardware, installed with security tool(included), please purchase SF640
• For mounts requiring standard hardware,installed with a Philips screw driver, please purchase SF640P

Description

The SmartMount® Universal Flat Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. The SF640 models’ low-profile design offers the sleek, aesthetically pleasing look to fit into any décor. Security screws provided in the SF640 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Number of displays supported	1
Minimum VESA mount	400 x 400 mm
Maximum VESA mount	400 x 400 mm
Maximum screen size	127 cm (50")
Maximum weight capacity	68 kg
Ergonomics
Distance to the wall (max)	3.2 cm
Technical details
Number of displays supported	1
Distance to the wall (max)	3.2 cm
Product colour	Black
Mounting type	Wall
Design
Certification	RoHS, UL
Product colour	Black
Certificates
Certification	RoHS, UL
Weight & dimensions
Width	492 mm
Height	429 mm
Weight	1.8 kg
Depth (max)	3 cm
Packaging data
Package width	272 mm
Package depth	550.9 mm
Package height	39.9 mm
Package weight	2.45 kg
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
