Peerless SUA740 101.6 cm (40") Black

Designer Series Ultra Slim Articulating Wall Mount For 32" to 40" Ultra-thin Displays

Key Features

• Fits displays with VESA® mounting patterns 200 x 100 and 200 x 200mm

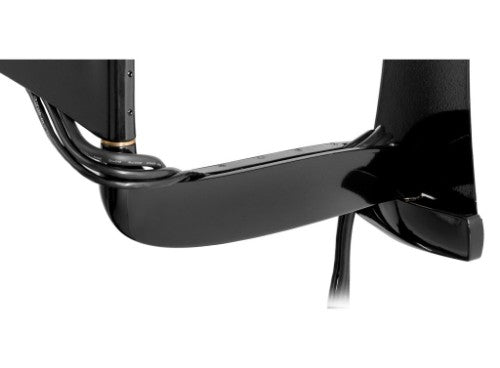

• Internal cable management provides clean, professional installation finish
• Up to ±90° of side-to-side swivel
• Added ±5° of roll for post-installation display leveling without the use of tools
• Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning

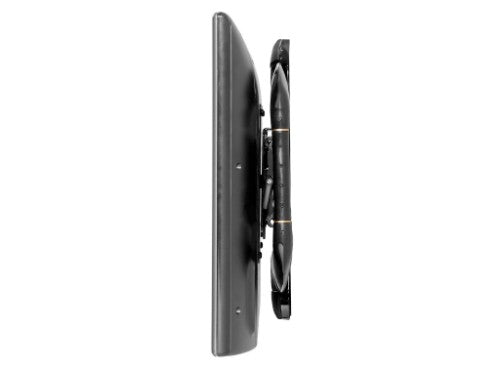

• Arm retracts to 1.74" (44mm) and extends up to 24.74" (628mm) from wall

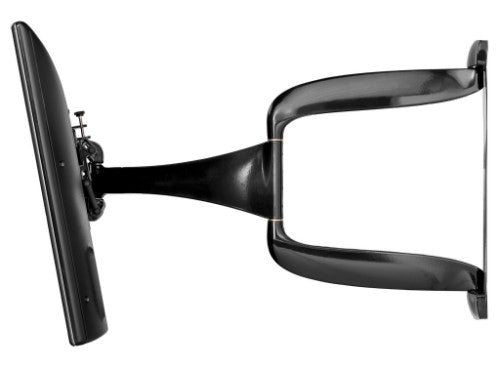

• One-Touch™ tilt mechanism allows adjustment of +15/-5° without the use of tools

Description

One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA74P's One-Touch™ tilt mechanism provides effortless movement of the display for the perfect viewing experience, and vertical adjustment allows the display to be raised or lowered by ½" after installation to fine-tune the positioning. With a gloss Black finish and internal cable management, the SUA74P provides a clean, professional look that matches any décor.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	109.2 cm (43")
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	200 x 200 mm
Maximum screen size	101.6 cm (40")
Maximum weight capacity	27 kg
Ergonomics
Cable management	Yes
Tilt angle range	-5 - 15°
Swivel angle range	-90 - 90°
Distance to the wall (min)	4.4 cm
Distance to the wall (max)	62.8 cm
Technical details
Cable management	Yes
Number of displays supported	1
Distance to the wall (min)	4.4 cm
Distance to the wall (max)	62.8 cm
Product colour	Black
Mounting type	Wall
Design
Cable management	Yes
Certification	RoHS
Product colour	Black
Certificates
Certification	RoHS
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	416 mm
Height	410 mm
Weight	4.58 kg
Depth (min)	4.4 cm
Depth (max)	62.8 cm
Packaging data
Package width	540 mm
Package depth	495 mm
Package height	86 mm
Package weight	6.01 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
