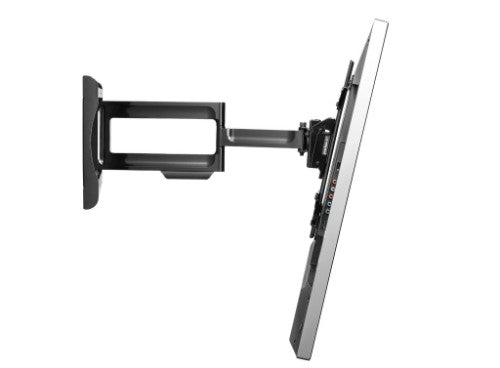

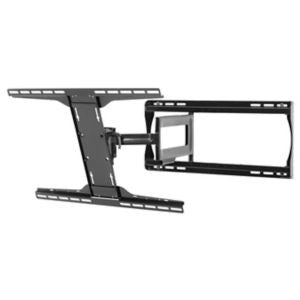

Peerless PA750 TV mount 190.5 cm (75") Black

Paramount Articulating Wall Mount for 39" To 75" Displays

Key Features

• Universal mount accommodates 200 x 100 to 600 x 400mm VESA mounting patterns
• Extends 21.35" (542mm) from the wall
• Retracts 3.00" (76mm) to save space
• +15/-5° of tilt for optimal viewing angles
• 5° of roll for post installation display leveling
• Up to 90 degrees of pivot allows for perfect display positioning
• Design is UL listed and tested to four times stated load capacity
• Hook-and-Hang?, one-person display installation
• Lock the display at any angle with the ratcheting handle
• I-shaped adaptor plate helps avoid blocking connections on back of display
• Integrated cable management protects, contains and conceals cables for a clean, professional installation
• Mounts to wood stud, concrete, cinder or breeze block
• Includes all necessary wall and display attachment hardware

Description

The Paramount™ series wall mounts provide versatile and multi-functional features.With PA75, extend the display up to 21.35" (542mm) or fully-retract it to just 3."(76mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ systemoffers easy, one-person installation of the display. A ratcheting handle provideslocking tilt capability for quick adjustments to the amount of tilt, reducing glare andoptimizing the viewing angle. Integrated cable management protects, contains andconceals cables for a clean installation.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	99.1 cm (39")
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	190.5 cm (75")
Maximum weight capacity	45 kg
Ergonomics
Cable management	Yes
Tilt angle range	-5 - 15°
Pivot angle	-90 - 90°
Tilt adjustment	Yes
Technical details
Cable management	Yes
Pivot angle	-90 - 90°
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Adjustable	Yes
Quantity per pack	1 pc(s)
Compliance certificates	RoHS
Design
Cable management	Yes
Certification	UL
Product colour	Black
Certificates
Certification	UL
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	619 mm
Height	425 mm
Weight	7.6 kg
Depth (min)	7.6 cm
Depth (max)	54.2 cm
Packaging data
Package width	699 mm
Package depth	353 mm
Package height	109 mm
Package weight	8.62 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Adjustable	Yes
