StarTech.com TV Wall Mount supports up to 70 inch VESA Displays - Low Profile Full Motion Universal TV Flat Screen Wall Mount - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket

StarTech.com TV Wall Mount supports up to 70 inch VESA Displays - Low Profile Full Motion Universal TV Flat Screen Wall Mount Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket (FPWARTB2)

Key Features

• LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish

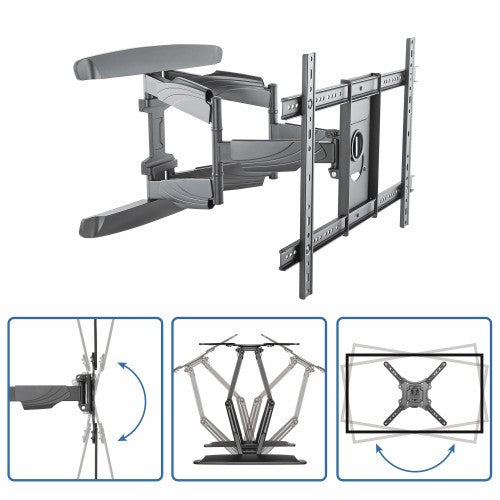

• WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level

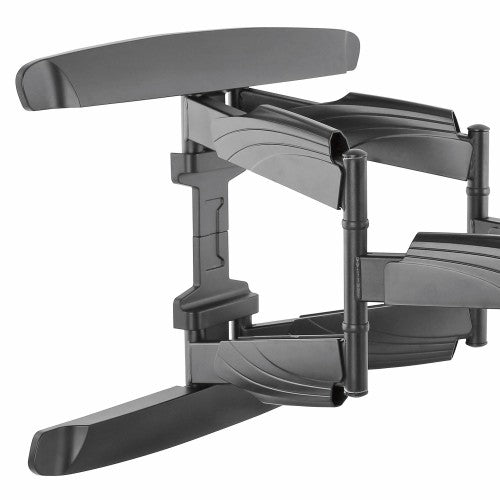

• EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)

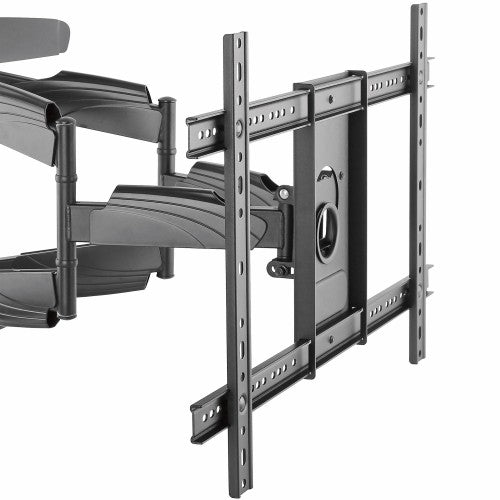

• COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, and others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400

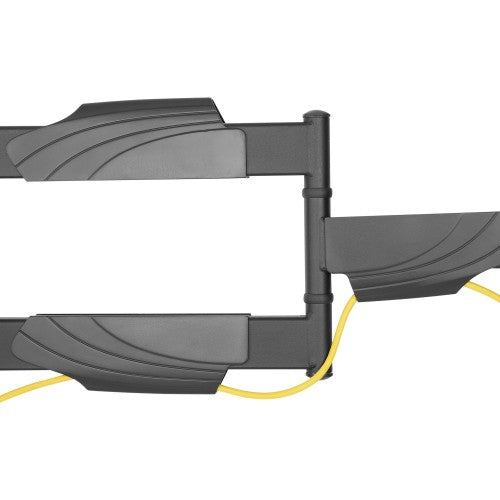

• TIDY AESTHETIC: The flat panel TV wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps cables organized; ideal for customer-facing digital signage

Description

Flat-Screen TV Mount | Steel | For 32" to 70" Displays

Maximize space while creating an impressive display. This full-motion TV wall mount supports flat-screen TVs from 32" to 70" in size, with a weight capacity of 99 lb. (45 kg).

Save Space

Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, and free up valuable space. The wall mount is ideal for a lobby, boardroom or other venue. The TV wall mount also includes built-in cable management to keep cables neatly out of sight.

Full-Motion Adjustment

The TV wall mount features dual arms that extend out to 20.4" (517 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arms can also fold to tuck in closely to the wall, providing a low profile that enables your display to be positioned just 2.24" (57 mm) from the wall.

You can swivel your display +90 / -90 degrees and tilt +5 / -8 degrees, letting you angle your TV display toward your audience. Plus, the tilt feature lets you adjust the TV so that you can view it comfortably at any height. A built-in level adjustment also offers 5 degree clockwise and counterclockwise turning, to ensure your display is perfectly level.

Secure Installation

The heavy-duty steel construction, dual-arm design and dual-stud mounting for studs placed 16" apart, provides increased durability and security. It safely and securely supports your flat-screen TV, to protect your investment.

FPWARTB2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)

Specifications

Mounting
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Panel mounting interface	200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	177.8 cm (70")
Maximum weight capacity	45 kg
Suitable for computer monitor	Yes
Ergonomics
Cable management	Yes
Tilt angle range	-8 - 5°
Swivel angle range	-90 - 90°
Pivot angle	-90 - 90°
Technical details
Cable management	Yes
Pivot angle	-90 - 90°
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Compliance certificates	RoHS
Design
Cable management	Yes
Product colour	Black
Anti-theft function	No
Housing material	Plastic, Steel

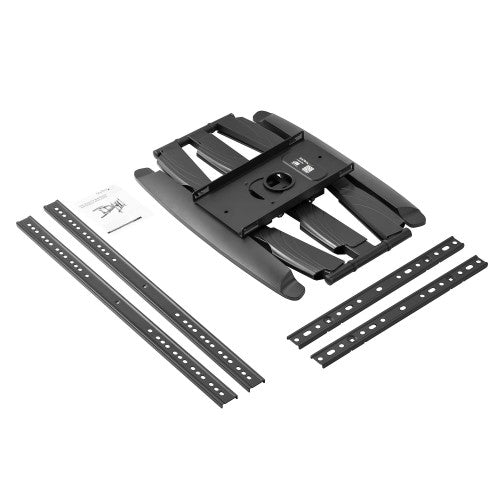

Packaging content
Screws included	Yes
Adapter bracket included	Yes
Number of adapter brackets included	4
Washers included	Yes
Number of washers included	14
Spacer included	Yes
Number of spacers included	16
Number of screws	38
Wrench included	Yes
Mounting kit	Yes
Manual	Yes
Number of wrenches included	1
Weight & dimensions
Arm length	64.3 cm
Width	517 mm
Height	418 mm
Weight	6.8 kg
Packaging data
Package width	622 mm
Package depth	415 mm
Package height	90 mm
Package weight	7.7 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	646 mm
Master (outer) case length	433 mm
Master (outer) case height	291 mm
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
