StarTech.com TV Wall Mount supports up to 100 inch VESA Displays - Low Profile Full Motion TV Wall Mount for Large Displays - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket

StarTech.com TV Wall Mount supports up to 100 inch VESA Displays - Low Profile Full Motion TV Wall Mount for Large Displays - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket (FPWARTS2)

Key Features

• LARGE 100"" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100 inch (165 lb/75 kg) w/ a durable full-motion steel frame and a powder-coated finish
• WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.9"" (75 mm) from wall or extend to 31.7"" (805 mm)
• LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16""/24"" off-centered studs w/ range of 47""/1.2m from left to right
• COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, among others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
• TIDY AESTHETIC: The adjustable tv wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps flat screen cables organized; ideal for customer-facing digital signage

Description

Heavy Duty TV Wall Mount | Steel | For up to 100" Displays

This swivel tv wall mount is ideal for a meeting space, lobby, boardroom, classroom or other venues. It provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while saving valuable space.

Robust Steel Construction

Engineered from high-grade steel, the heavy duty tv wall mount securely supports VESA compatible displays, including curved TVs, up to 100" with a weight capacity of 165 lb. (75 kg).

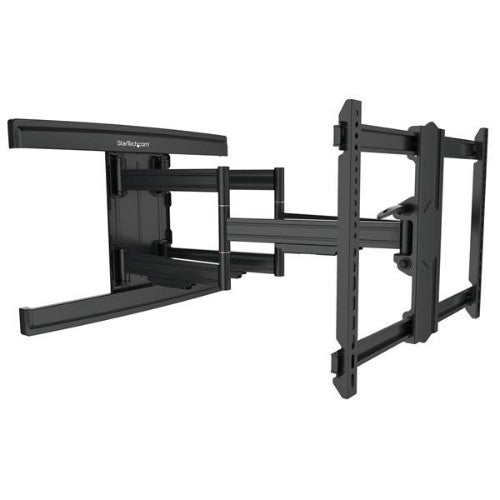

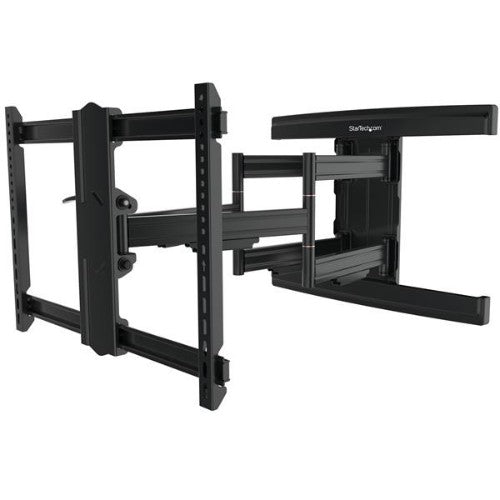

Full-Motion Adjustment

With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 31.7" (805 mm). You can also retract the arm back to nest just 2.9" (75 mm) away from the wall.

Find the Right Viewing Angle

Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare. The TV wall mount bracket also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after it is installed.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

FPWARTS2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Mounting
Mounting type	Wall
Minimum screen size	94 cm (37")
Panel mounting interface	200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	2.03 m (80")
Maximum weight capacity	50 kg
Ergonomics
Cable management	Yes
Tilt angle range	-15 - 2°
Swivel angle	90°
Distance to the wall (min)	7 cm
Distance to the wall (max)	65 cm
Tilt adjustment	Yes
Technical details
Cable management	Yes
Number of displays supported	1
Distance to the wall (min)	7 cm
Distance to the wall (max)	65 cm
Product colour	Black
Mounting type	Wall
Compliance certificates	RoHS
Design
Cable management	Yes
Certification	CE
Product colour	Black
Certificates
Certification	CE

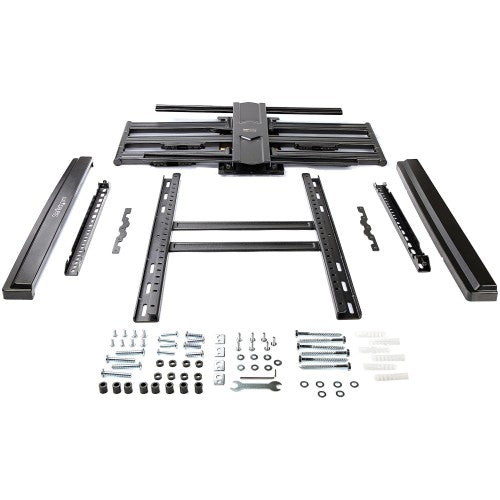

Packaging content
Screws included	Yes
Decorative cover included	Yes
Number of decorative covers included	2 pc(s)
Anchors included	Yes
Number of anchors included	6
Washers included	Yes
Number of washers included	17
Spacer included	Yes
Number of spacers included	16
Number of screws	33
Wrench included	Yes
Mounting kit	Yes
Manual	Yes
Number of wrenches included	1
Number of hex keys included	1
Hex key included	Yes
Weight & dimensions
Width	800 mm
Height	487 mm
Weight	16.8 kg
Depth (max)	67 cm
Packaging data
Package width	925 mm
Package depth	550 mm
Package height	100 mm
Package weight	18.8 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	935 mm
Master (outer) case length	565 mm
Master (outer) case height	220 mm
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
