Vision VFM-WA6X4/3 TV mount 177.8 cm (70") Black

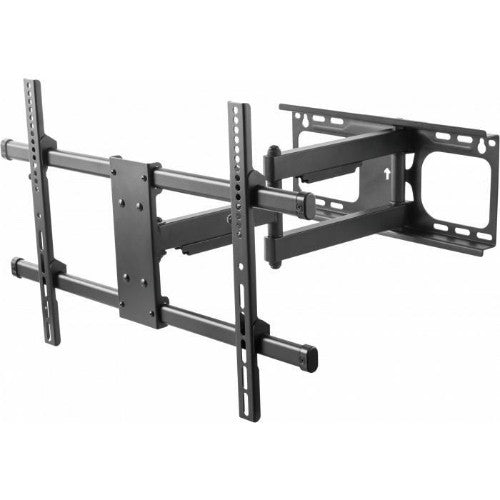

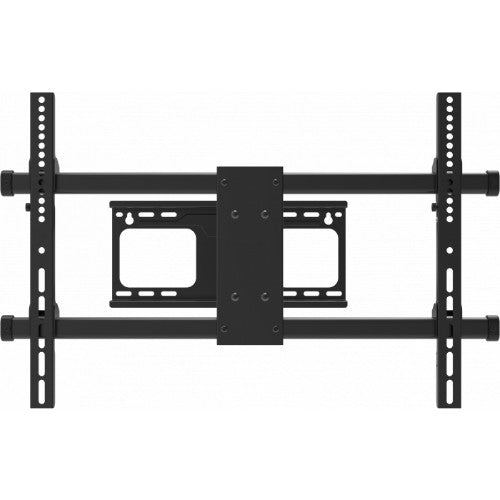

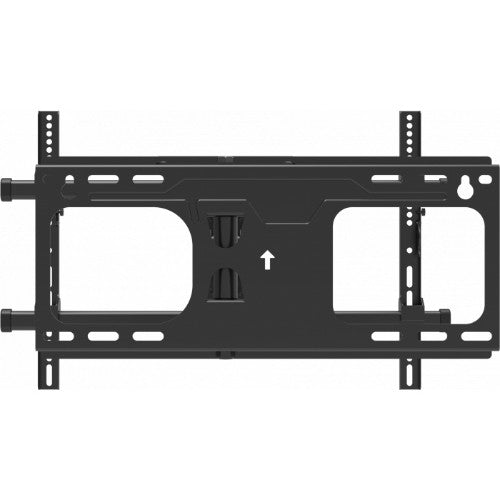

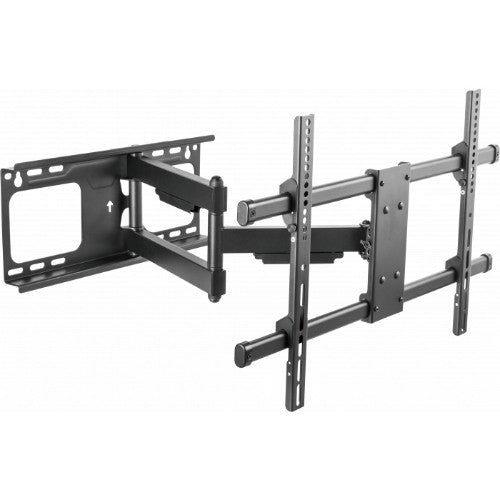

VFM-WA6X4B Black Flat-Panel Wall Arm 600x400

Description

Vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA6X4B fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 x 400 mm apart. Most larger displays use VESA arrangement of mounting points up to 600 x 400 mm apart, so the WA6X4 fits the majority of displays up to this size. Note: if a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely. Safe Working Load The strong mechanical design has a "safe working load" of 30 kg (66 lbs). Adjust Level Didn't fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place. Tilt and Swivel -5-15° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms. VESA The VESA system defines how far apart the mounting holes are on the back of your flat-panel. Holes 600 x 400 mm apart are known as VESA 600x400 and will suit this mount. This mount also covers all smaller VESA sizes down to 200 x 200. Cable Management Integrated sleeves allow cables to be routed under the arm. Secure Once the display assembly latches in place two thumbscrews can be added to the latch to lock it in place.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	106.7 cm (42")
Panel mounting interface	200 x 100,600 x 400 mm
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	177.8 cm (70")
Maximum weight capacity	30 kg
Suitable for computer monitor	No
Technical details
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	685 mm
Height	430 mm
Weight	7.2 kg
Depth (min)	6.9 cm
Depth (max)	61.5 cm
Packaging data
Package width	288 mm
Package depth	720 mm
Package height	73 mm
Package weight	7.7 kg
Quantity per pack	1 pair(s)
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
